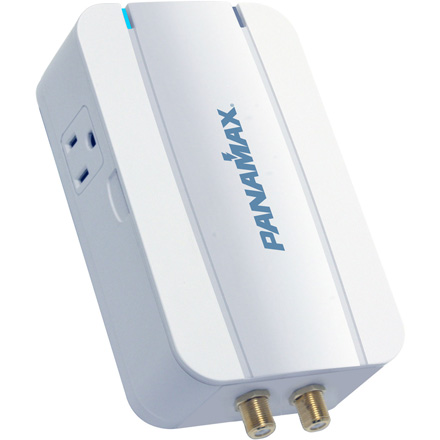

PAN1033 - Panamax MD2-C AC and Coaxial Surge Protector





Login to see prices.



Panamax MD2-C features one pair of universal CATV/SAT/ANT connectors, and two AC outlets. Housing features two LED diagnostic lights, 4 ft coax cable and removable, paintable cover. Ideal for TVs, Plasmas/LCDs, DVD/DVR players, Cable Modems or HDTV tuners. Protects equipment from electrical surges that travel over low voltage LAN/Tel lines. Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment. Features EMI/RFI Filtration Circuitry for clean, unimpeded power.
    AC Power:
  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): L-N 400V, L-G 500V, N-G 400V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1350 Joules
  • Response Time: <1 ns
  • Protection Modes: L-N, L-G, N-G
  • Protect or Disconnect™ Circuitry: Yes
  • Peak Impulse Current: 60,000 A
  • Nominal Discharge Current: 3,000 A
  • Maximum Current Rating: 15A (1800 W)
  • Line Voltage: 120 VAC, 50/60 Hz
  • Initial Clamping Level: 200V
  • EMI/RFI Noise Filtration: 50 dB (100 kHz - 1 MHz)
  • Catastrophic Surge Circuit: Yes
    Coax Specifications:
  • Insertion Loss: < 5 dB
  • Frequency Range: 0MHz – 2.2GHz
  • Connectors: Female "F"
  • CATV/Sat Clamping Level: 75V
    Agency Approvals & Warranty
  • UL® 1449 Rating: 330V
  • Product Warranty: Lifetime
  • Lightning Protection: Yes
  • Connected Equipment Protection Policy: Up to $100,000
  • Product Weight: 0.65 lb
  • Gross Weight: 1.0 lb
  • Dimensions: 3.25in W X 1.625in D X 5.25in H
