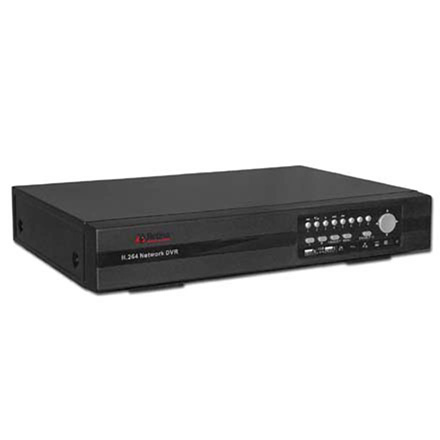

Retina 8-Channel Surveillance DVR with H.264 Compression
The RET1001 8-Channel Surveillance DVR features a 500GB Hard Drive and remote viewing capabilities via internet to PC or iphone/android/blackberry. (NOTE: Remote viewing only applies to certain Blackberry models). With a two USB interface and a 3.5" SATA HDD, this DVR comes with a 16-bit color graphic user interface and is optimized to support simultaneous 4-channel playback. The RET1001 also supports live view along with IR remote control & mouse control.
-
Language: English/Chinese
-
GUI: Graphic Menu (OSD Menu)
-
Video In: 8 ch. Composite 1Vpp, 75ohm, BNC
-
Video Out: 1 ch. Composite
-
Video Display: 1/4/9 channel switch
-
Video Standard PAL: 25 f/s, CCIR625line, 50 scene
-
Video Standard NTSC: 30 f/s, CCIR525line, 60 scene
-
Audio In: 8 ch. Audio, 600ohm, RCA
-
Audio Out: 1 ch. Audio, 600ohm, RCA
-
Record Style: A/V Simultaneous
-
Audio Compression: ADCPM
-
Picture Compression: H.264
-
Picture Resolution: CIF/HD1/D1
-
Video Code Rate CIF: 384-768 Kbps (normal)
-
Video Code Rate HD1: 512-1024 Kbps (high)
-
Video Code Rate D1: 512-1024 Kbps (highest)
-
Audio Code Rate: 32 Kbps
-
Data Storage: SATA HDD (optional)
-
Alarm In: 8 alarm inputs
-
Alarm Out: 1 alarm output
-
Serial Interface: Support 1 RS485
-
Network Interface: RJ45, 10m/100m
-
Control Interface: IR remote, Mouse
-
VGA Out: 800x600, 1024x768, 1280x1024, 1366x768, 1440x900
-
Voltage Input AC: 110-240V
-
Voltage Input DC: 12V
-
Operating Temperature: -10º to +50º C
