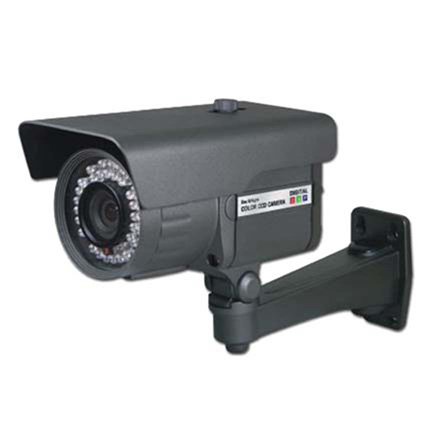

The RET1029 Weather Proof Color Camera employs the latest SONY technology optical components. This high definition stability camera provides strong anti-jamming, rich and real color. Easy to install, this camera comes with a 4.9mm manual zoom lens. With a horizontal resolution of 700 TV lines, this security camera is a high quality solution built to maintain picture clarity by providing rich color and high definition. The RET1029 also features an auto gain control and an auto electronic shutter.
Let us be your eye in the sky!
-
Pick Up Element: 1/3” SONY Exview HAD CCD II
-
Effective Picture Elements: (H X V) NTSC: 1020(H) X 508(V) PAL: 1020(H) X 596(V)
-
Horizontial Resolution: 700 TV Lines
-
Minimum Illumination: 0.001 Lux, 0 Lux ( With IR LED ON)
-
S/N Ratio: 52db
-
Scanning System: 2.1 Interface
-
Synchronous System: Internal, Negative Sync.
-
Auto Electronic Shutter NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
-
Gama Characteristic: 0.45
-
IR Distance: 40 Meters (With 5X42 PCS Infrared LED)
-
Video Output: 1Vpp, 75Ω
-
Auto Gain Control: Auto
-
Power/Current: DC12/600mA
-
Lens: 4.9mm Manual Zoom Lens
-
Dimension (mm): 260(W) X 175 (H) X 105 (D)
-
Weight (g): 1300
-
Storage Temperature: -30~+60°C RH 95% MAX
-
Operating Temperature: -10~+45°C RH 95% MAX
