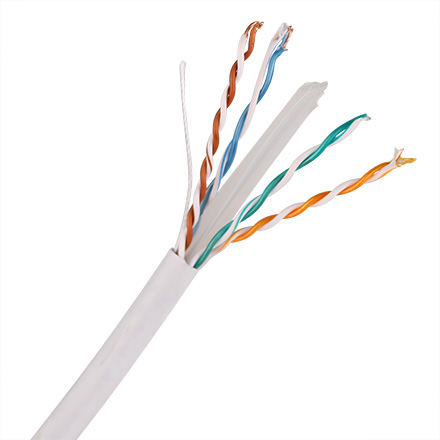

SKL1481 Category 6 8-Conductor UTP, 23 AWG solid, white, 1000 feet. Suitable for 10BaseT and 100BaseTX Fast Ethernet and 1000BaseT Gigabit Ethernet connections. Meets the following standards: EIA/TIA-568B.2-1, ISO/IEC 11801.
- Type: CAT6/UTP/4-pair/23awg
- UL Listed
- Standard: EIA/TIA-568-B.2-1, ISO/IEC 11801
- Conductor: Solid Copper 23awg
- Conductor Diameter: 0.575mm
- Insulation: Solid HDPE
- Normal Thickness: 0.21mm
- Mininum Thickness: 0.18mm
- Jacket: PVC
- Jacket Thickness: 0.52mm
- Jacket Diameter: 6.2mm +/- 0.2mm
- Rated Voltage: 30V
- Impedance: 100 ohms +/- 15 ohms
- Rated Temperature Range: -4 ~ 158д F
- Quantity: 1000ft, footage marked
- Color: white
- Weight: lbs
Thank you for your interest in the SKL1481 user manuals. We are currently in the process of creating these manuals and will have them online as soon as possible. Please check back soon!
