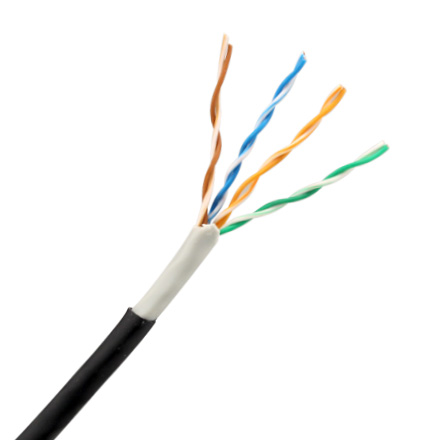

SKL1450 Double Jacket Outdoor UV Cat5e Cable, 1000ft Box, Black.
-
Type: CAT5E UTP 4-pair 8-conductor
-
UV Resistant
-
Standard: TIA/EIA-568B.2
-
Conductor: 24awg Bare Copper
-
Conductor Construction: 1/0.5 +/- 0.008mm
-
Conductor Diameter: 0.5mm
-
Insulation Material: Polyethylene
-
Insulation Thickness: 0.2 nom (ref.)
-
Insulation Diameter: 0.9 +/- 0.05mm
-
Jacket Material: PE
-
Jacket Thickness: 0.60mm min / 0.76 nom (ref.)
-
Jacket Diameter: 5.3 +/- 0.15mm
-
350MHz
-
1000ft box, footage marked
-
Rip cord inside cable
