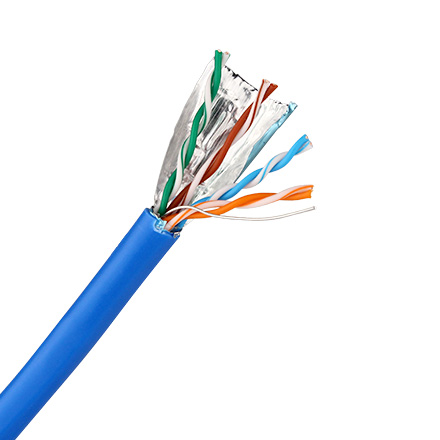

SKL1475 PVC Cat5e Cable with foil shield, 1000ft Box, Blue.
-
Type: CAT5E/FTP/24 AWG
-
CM/CL2/UL rated
-
Standard: EIA/TIA-568-B.2-1, ISO/IEC 11801/YD/T1019-2001
-
Conductor: Solid Copper 24awg
-
Conductor Diameter: 0.50±0.002mm
-
Insulation: HDPE
-
Insulation Diameter: 0.96mm/0.0378in
-
Twisting Lay Length: </=19mm
-
Drain Wire: 24AWG Solid TC
-
Shield: AL/Mylar
-
Jacket: PVC
-
Jacket Thickness:0.54mm/0.0213in
-
Jacket Diameter: 6.0mm/0.236in
-
Impedance: 100±15ohm
-
swept to 350MHz
-
1000’ Reel-in-box, footage marked
-
Rip cord inside cable
-
Color: Blue or White
-
Weight: 26 lbs
