Brand: Televes
Last Ordered:

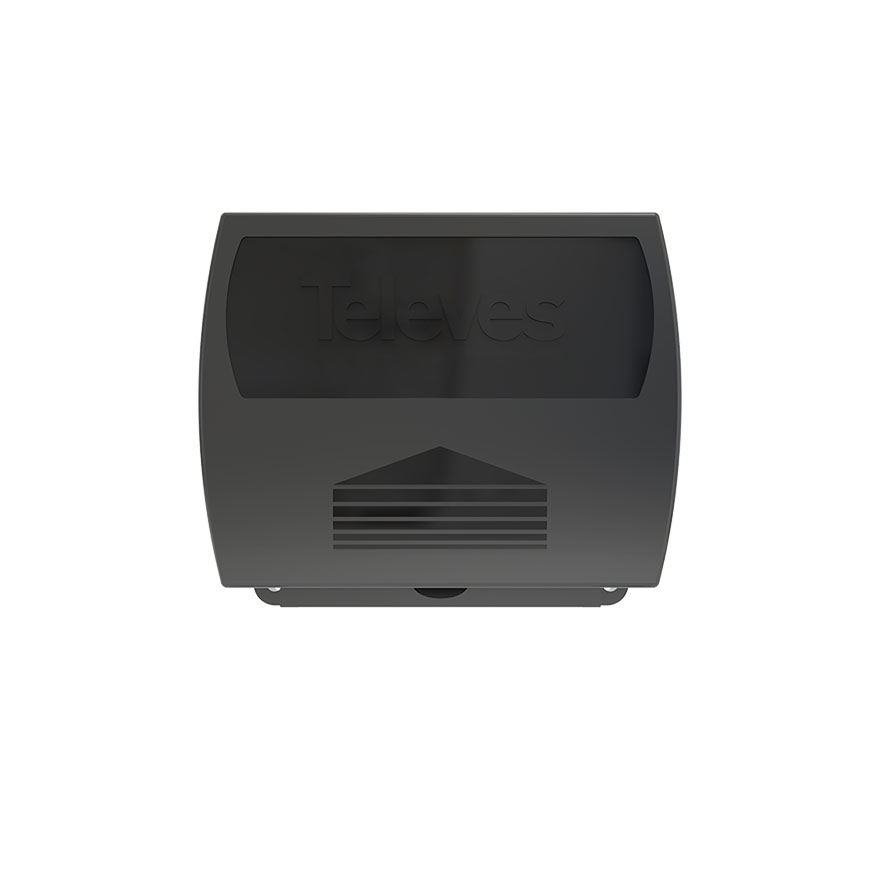

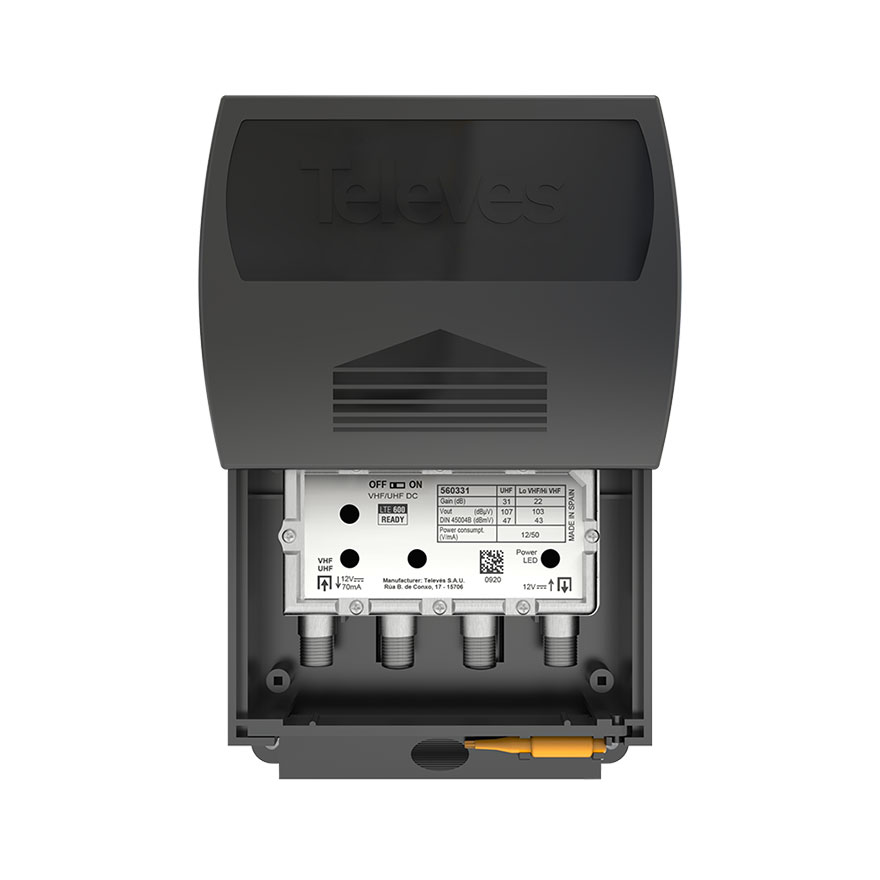

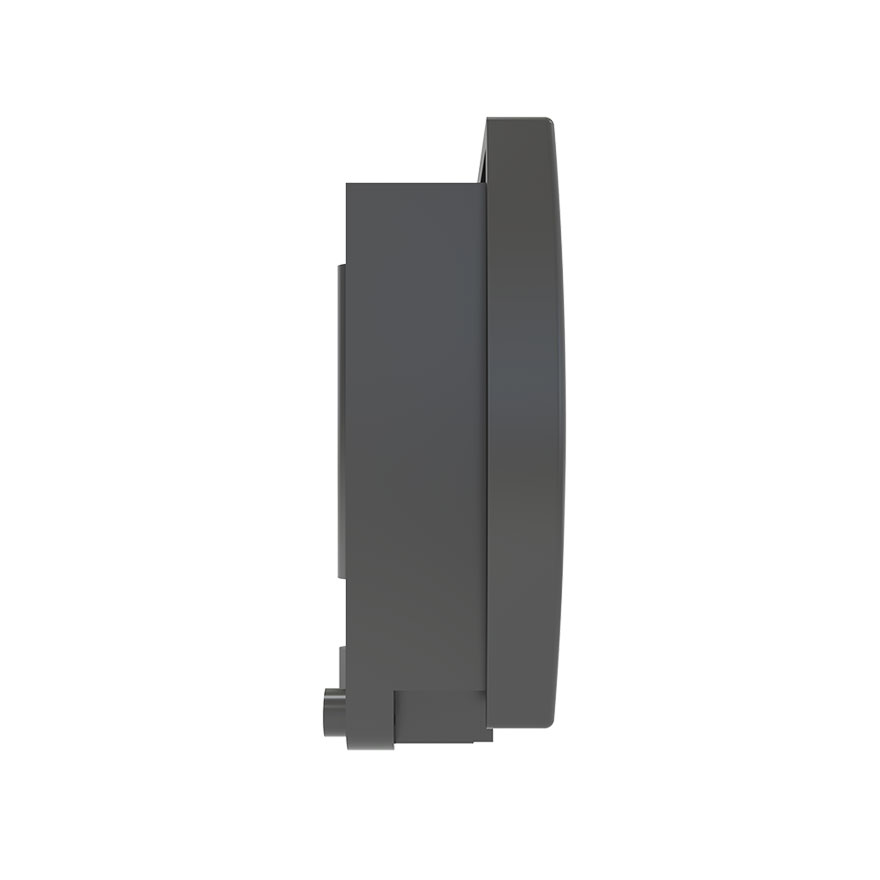

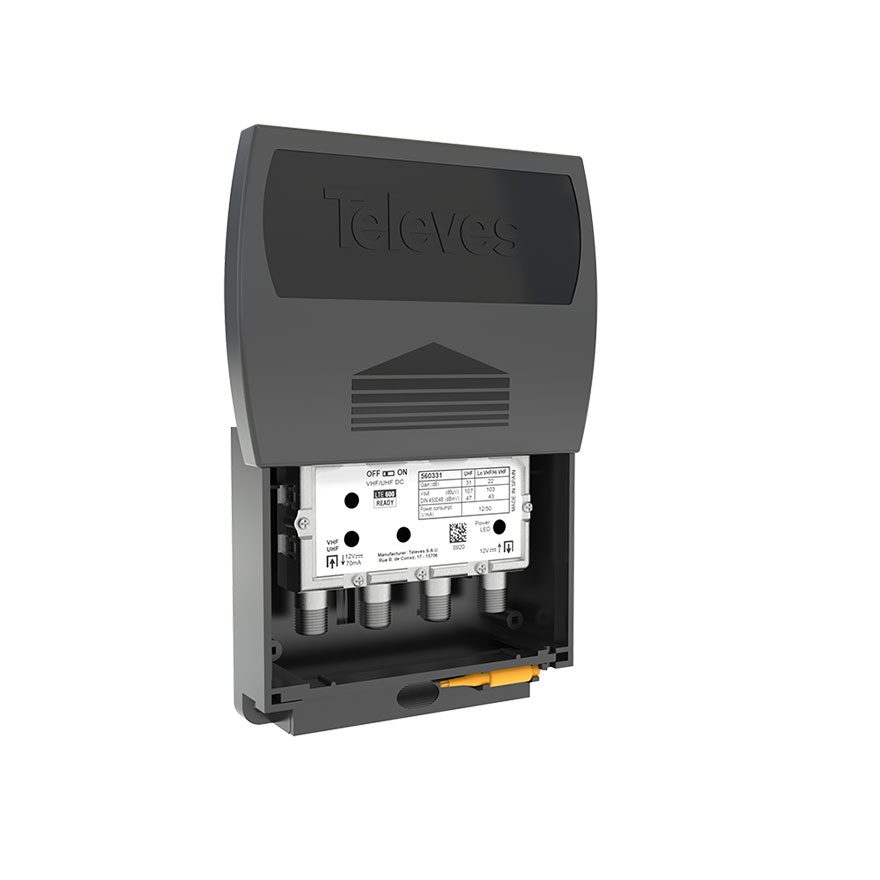

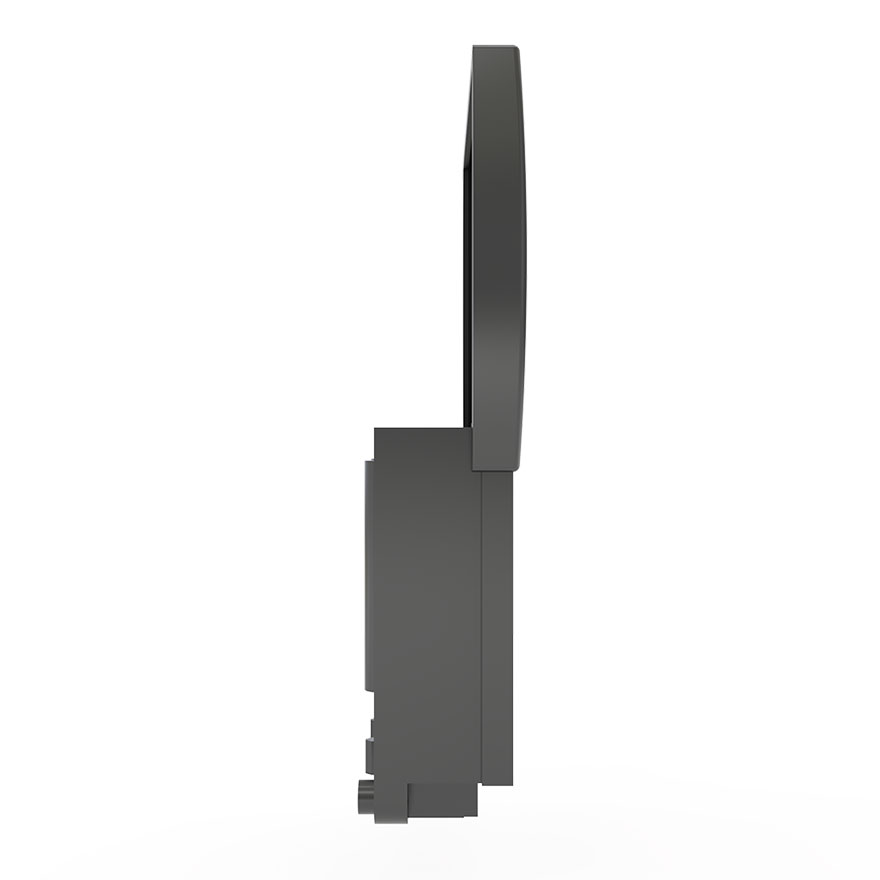

TLV1004OB - Televes Corporation® 560383 Mast Amplifier with BOSS and “F” Power Supply Kit (1 Unit)***Open Box Item***
Item: TLV1004OB | Model: 560383

Brand: Televes    Last Ordered:

  • Open Box Item at Discounted Price
  • Good to Excellent Condition - Sold As Is
  • All Necessary Parts Included - Minimal Use
  • 90-Day Return Policy

Questions Email
Call Today
Call Today (800) 844-9555

Televes Corporation® 560383 Mast Amplifier with BOSS and “F” Power Supply Kit (1 Unit)***Open Box Item***

The ultimate signal! The Mast Amplifier and Power Supply Kit filters and amplifies television signals coming from a single antenna. It optimizes LTE band rejection up to 36 channels (repack ready), is equipped with a single inputs for amplification on Low VHF, High VHF, and UHF bands, all powered though the output coaxial cable.

Good to Excellent Condition

Our Open Box Items are like new and range from good to excellent condition. Many of the products we sell as Open Box have never actually been removed from the carton, only returned by the purchaser for various reasons.  Other times they were put on display or were needed for photos.

What to expect when purchasing an Open Box item:

  • All parts included
  • Original box and additional contents (manuals, extra hardware, accessories, etc.) included when possible
  • Minimal use
  • No major blemishes
  • No significant wear and tear to product
  • Product in original packaging when available
  • Original packaging may be replaced or out of shape from shipping
  • 90 day return policy


This kit is complemented with a domestic 12 V-power supply unit (220mA) included in the installation. The PSU powers equipment through the input coaxial cable while allowing the transmission of the TV signal, in addition to being UL certified (US plug). Best of all, it allows the installer to adapt the output level to the necessary characteristics of the distribution network.

Televes Corporation®

Televes is a company belonging to Televes Corporation. Televes Corporation groups more than 20 companies which all work to achieve the common objective of design and produce the best equipment used to equip homes, buildings and cities with optimum telecommunication infrastructures.

There are no support documents available for this product at this time.
Inputs/Bands: 2 x (Low VHF / High VHF/UHF)
Frequency Margin: 54-88MHz / 174-216MHz / 470-608MHz
Gain: 22 dB Low Range / 31 dB High Range
Automatic Gain Adjustment Range: 0-15dB
Output Level: DIN45004B: 43dBmV  Low range / 47dBmV High Range, EN 60728-3 (IMD3 2CH-35dB: 51dBmV Low Range / 55dBmV High Range
Power Supply: 12Vdc / 50mA
Max Current Through Inputs: Off: 0 mA, On: 70 mA
Operating Temperature: +23-113°F
Protection Index: 23IP
Frequency Margin:  5-862Mhz
Through Loss (typ.): 1Out: Main-1.5 dB / Aux-0dB, 2 Out: Main-4dB / Aux-4 dB
Output Interstage Equalizer: 12±1.5V
Max Output Current: 220V
Min Output Current: 30mA
Powering: 108-132V~ / 50-60Hz
Max. Consumption: 65mA~ / 3.6W
Protection Index: 20IP
Operating Temperature: 14-113°F+
Condition: Open Box
