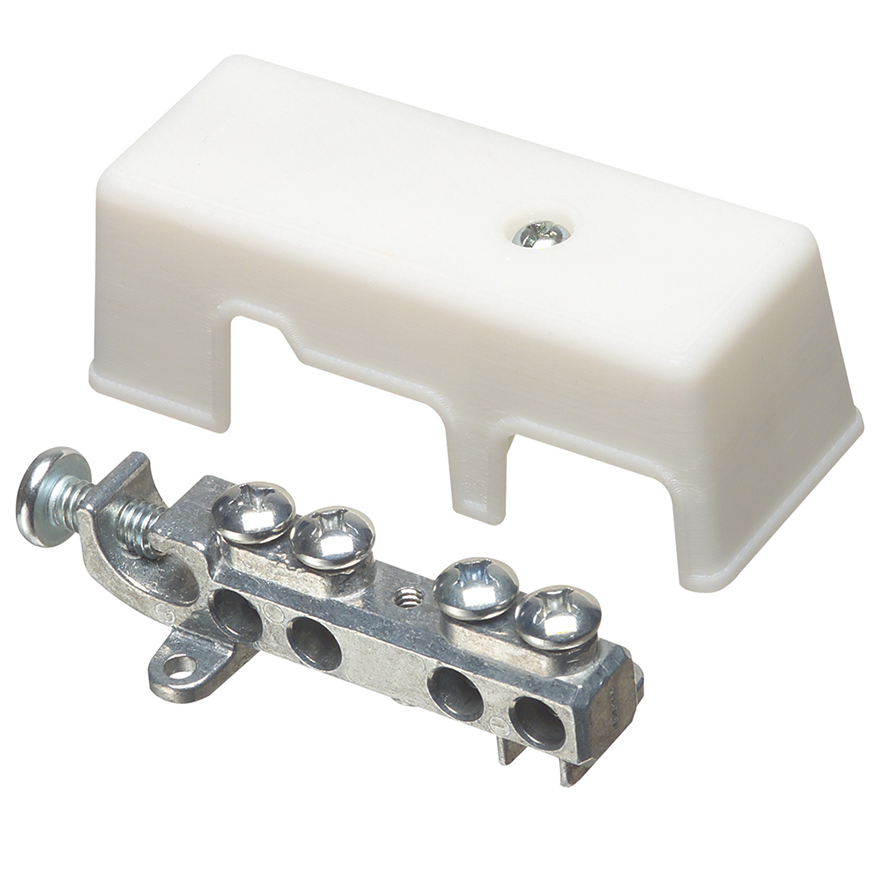

Arlington GB5 Intersystem Grounding Bridge

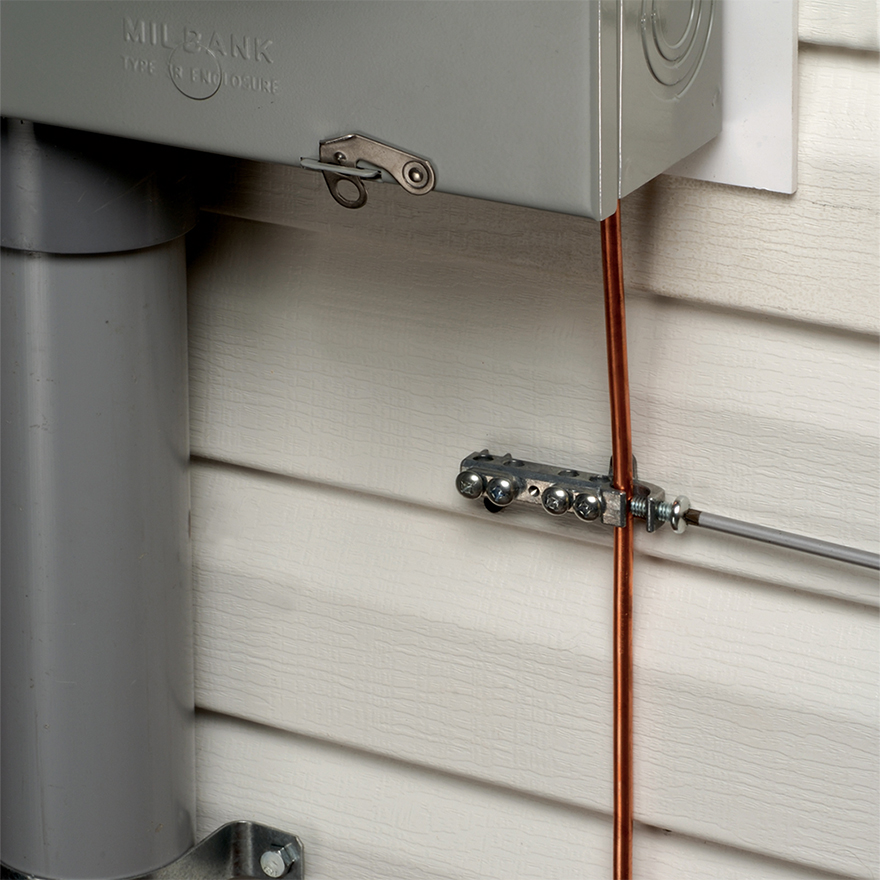

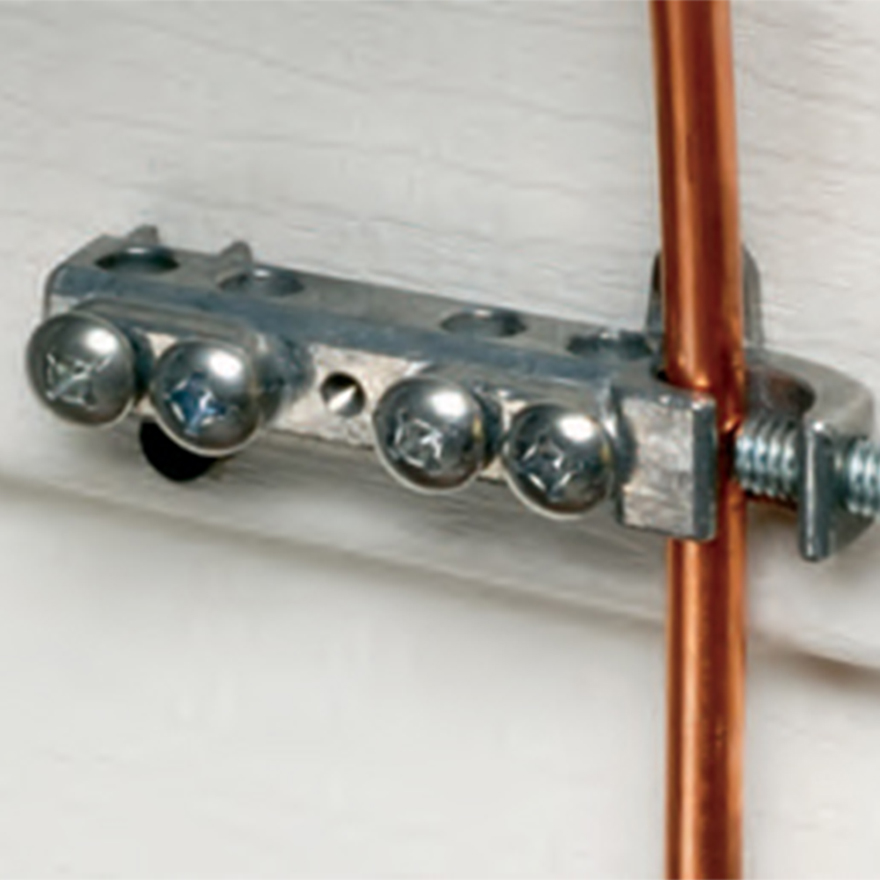

Reliable intersystem bonding! The Arlington Grounding Bridge ensures strong bonding between power and communication grounding systems. Designed with four termination points, it handles multiple hookups of communication systems like telephones, CATVs or satellite dishes.

Features

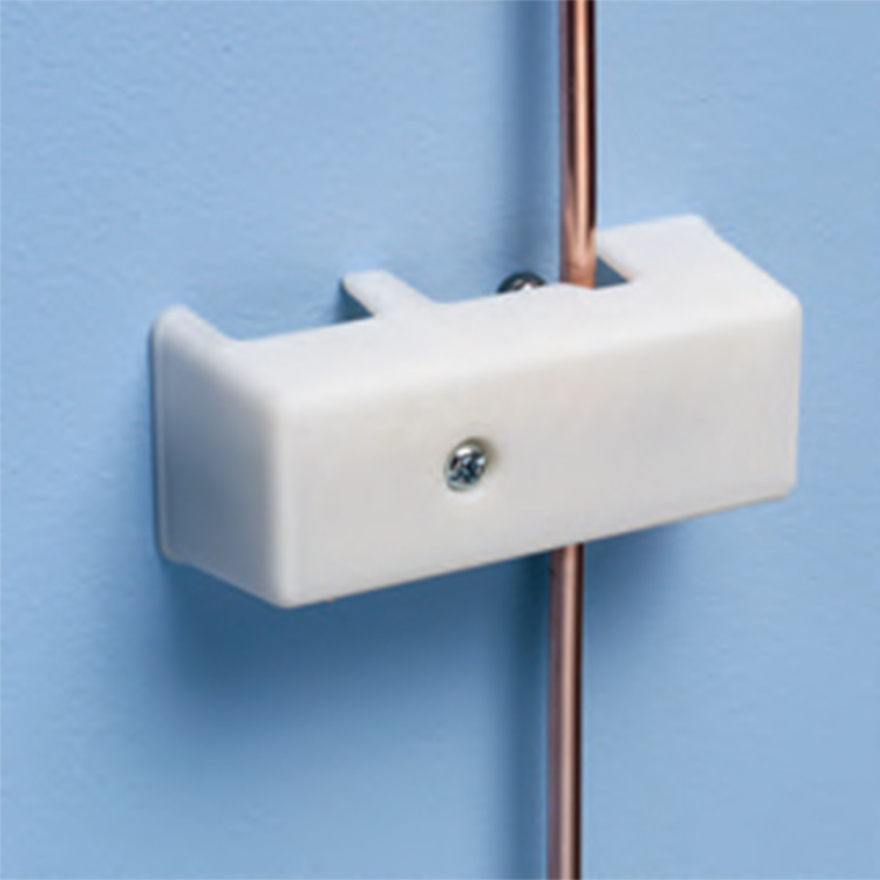

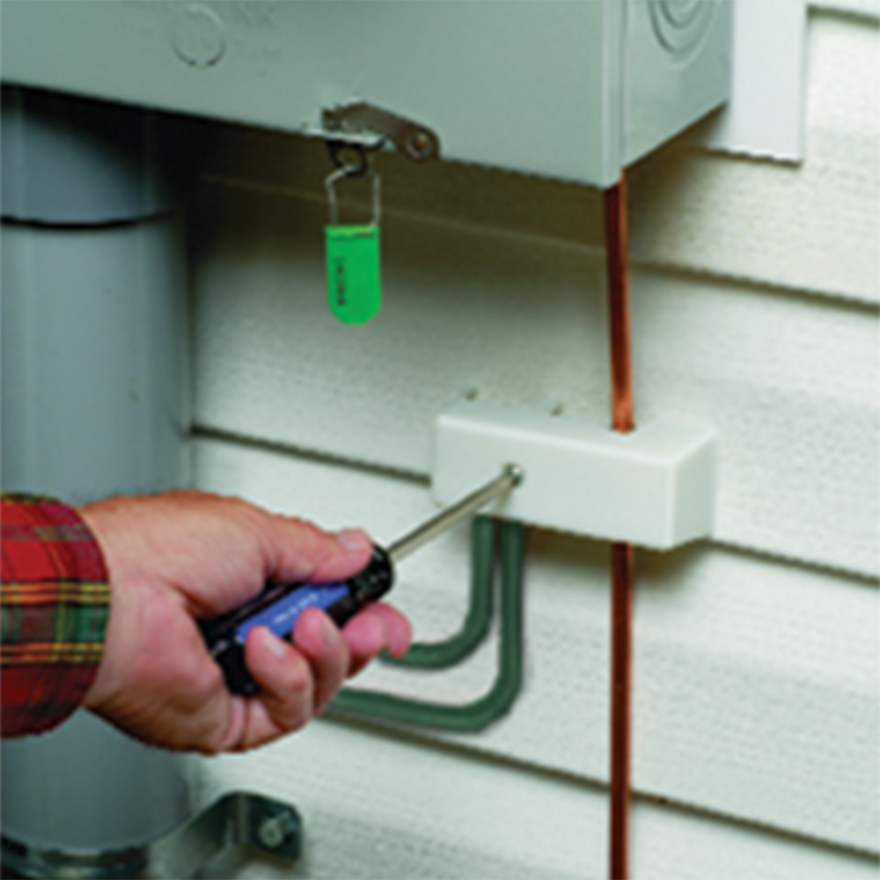

This Grounding Bridge is perfect for indoor or outdoor applications. It accommodates #14 to #4 copper or aluminum, solid or stranded. It’s the best solution for fast, simple installs that provide easy access for inspections.

Arlington

Arlington has been a leading manufacturer of quality electrical products and fittings since its founding in 1949. The company manufactures products that meet or exceed the changing needs of electrical distributors and contractors, with the vast majority produced in America.

Made in the USA:	Proudly
cULus Listed:	Yes
Weight:	0.500 lbs/each

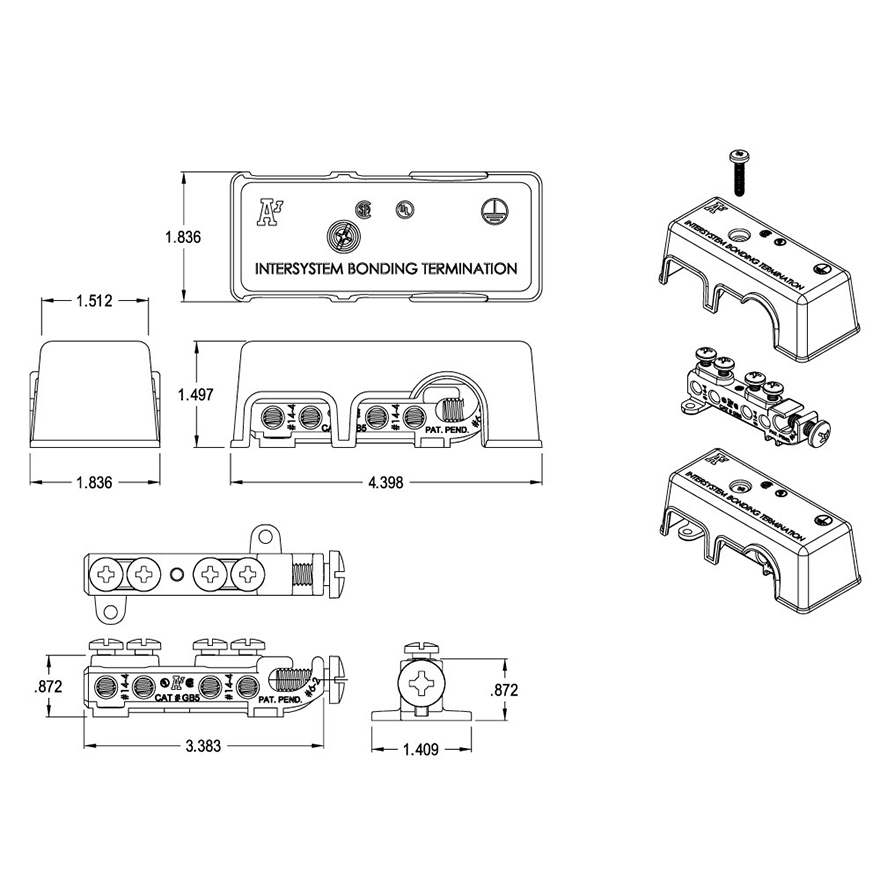

Dimensions (H x W):	1.497" x 4.398"
Color:	Silver
Materials:	Zinc (Bridge) / Paintable Plastic (Cover)
Equipment Grounding Conductor:	#6 to #2 Copper or Aluminum - Solid or Stranded
Grounding Electrode:	#6 to #2 Copper or Aluminum - Solid or Stranded
Intersystem Bonding and Grounding Conductors:	#14 to #4 Copper or Aluminum - Solid or Stranded
Termination Points:	(4) Four
Trade Size:	#6 to #2 Grounding Electrode
Includes:	(1) Grounding Bridge (1) Cover (1) 5/16"-18 x 3/4" Long Screw (4) 1/4"-20 x 5/8" Long Screws (1) #10-24 x 1" Long Screw (Cover)
