Atlas SD72WV 8" Dual Cone Speaker/Baffle 5-Watt Transformer at 70.7/25V with Volume Control (White / Each)
The speaker used in the SD72WV is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72WV.
Control the Volume
Located in the middle of the speaker grill is an easily adjustable knob that controls the speaker’s individual volume. This is useful when running several 70V speakers and you don’t want one uniform volume for all speakers. You will possibly need a higher volume in the warehouse but a lower, more appropriate volume next to the customers.
Fully Capable

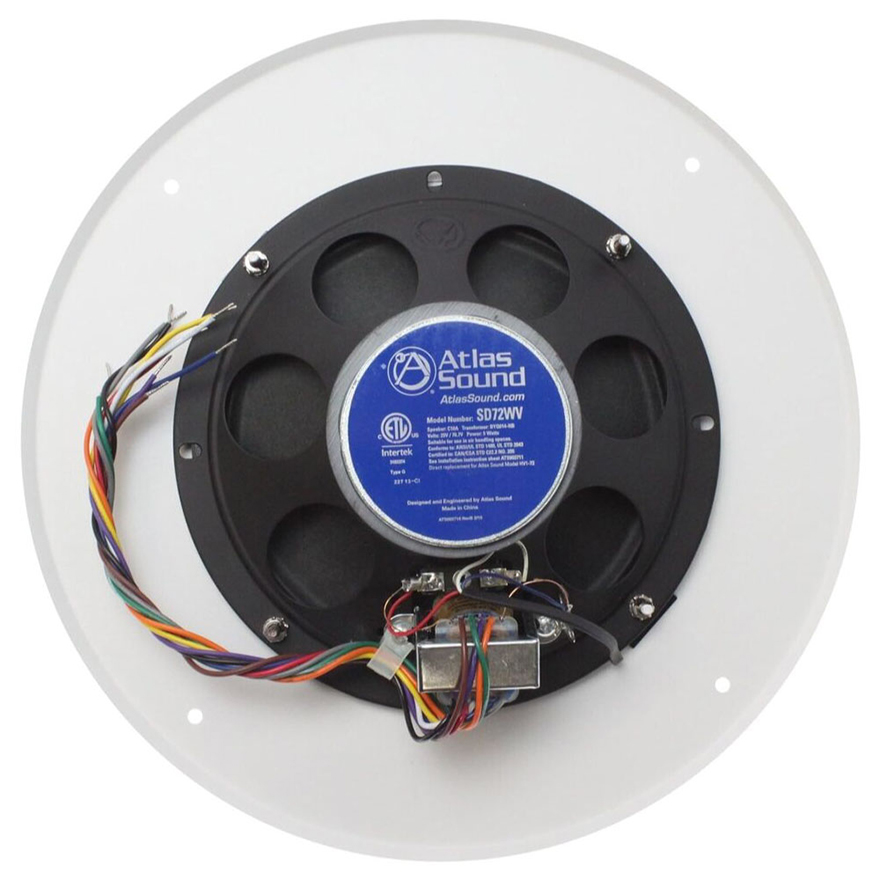

SD72WV is a dual cone, 5 watt 8" loudspeaker with a 10oz ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. It includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.
This Speaker Just Baffles
It includes a factory installed CRS baffle with concealed loudspeaker mounting studs and screw mounting hardware. The SD72WV baffle features standard mounting holes to accommodate the majority of Atlas Sound 8" tile bridges, mounting rings and enclosures. The baffle finish is white powder coat epoxy.
White Grill

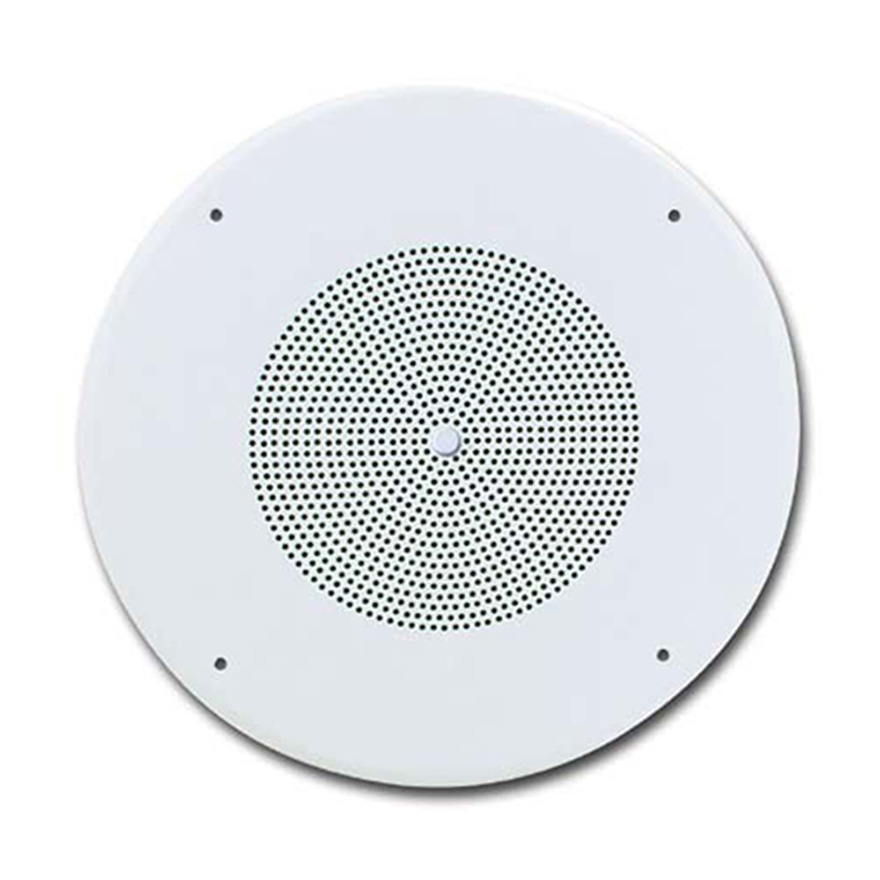

The beautiful white painted grill will blend in with most ceiling tiles.
25V and 70V
This speaker’s transformer is designed for long and short runs. Whether you’re using a 25V amplifier or a 70V amplifier, this driver can accommodate because it has both inputs.
Individual Wattage Control
By simply selecting certain wires to hook up, you can control the wattage each speaker puts out. This allows you to tailor each speaker to achieve the perfect amount of power.
Background Sound
This speaker is typically used for low volume purposes including background music and announcements.
