DIDV1026 - Digital ID View IV-MX8POENVR-2TB 8-Channel H.264 PoE Network Video Recorder w/ 2TB, 1080p

Item: DIDV1026 | Model: IV-MX8POENVR-2TB

Brand: Digital ID View Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

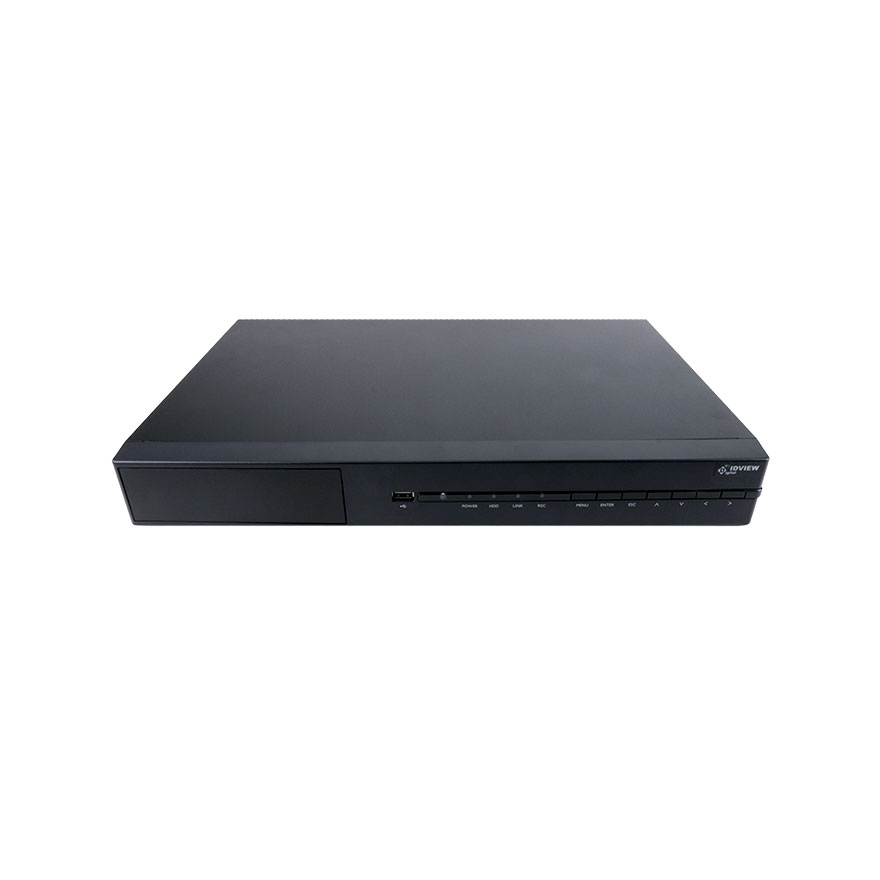

Digital ID View IV-MX8POENVR-2TB 8-Channel H.264 PoE Network Video Recorder w/ 2TB, 1080p

Store and view every recorded detail with this NVR from Digital ID View. It can support up to 5MP camera, and features (10) ports (8 for cameras, 1 for internet, and 1 for LAN). It comes with a built-in standalone Linux embedded system as well as convenient web-based management, and with 2TB of memory and QR code quick access, it’s only too easy to set up and operate.

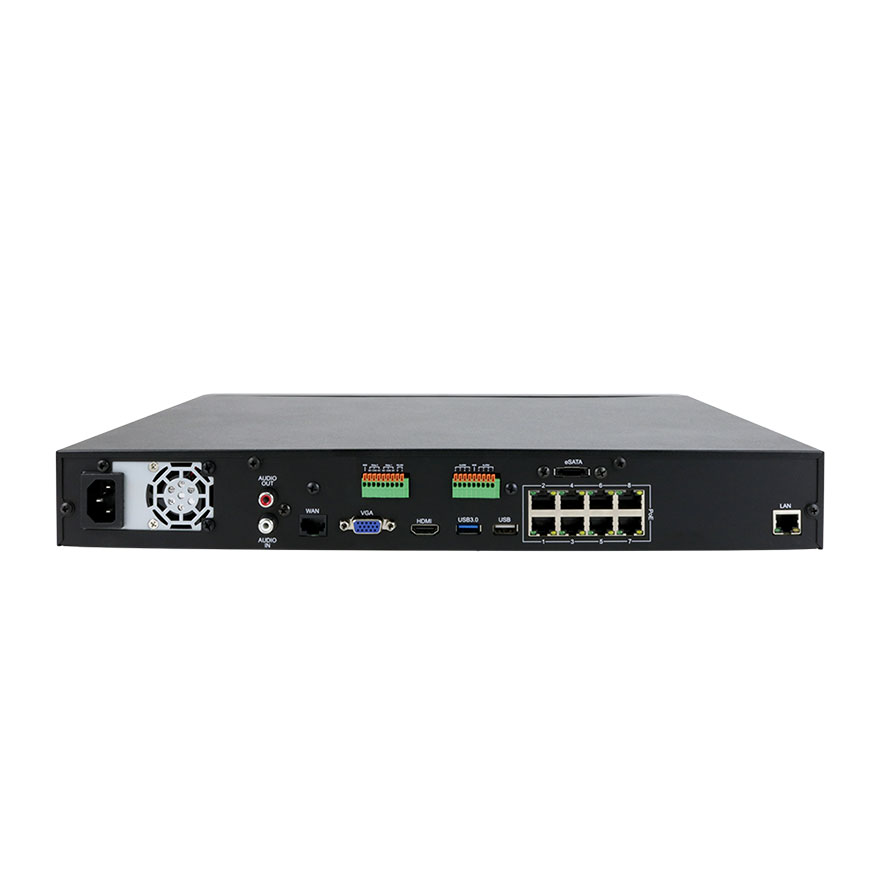

Use with Up to Eight Cameras

The IV-MX8POENVR-2TB’s (10) ports can accommodate up to (8) cameras, with the other (2) ports designed for use with internet and LAN connections. The standalone Linux embedded system is designed for use with IP cameras up to 5MP, and can be managed over the web.

PoE Functionality

PoE (Power over Ethernet) functionality allows for connected cameras to be powered directly from the NVR itself. This eliminates the need for external power cords, making for a safer setup as well as an overall simpler installation.

Support Features

Among its myriad of compatibility designs, the NVR supports P2P (Peer to Peer) remote access and iCMS systems. It features auto system management as well as a support touch monitor. Finally, for ease of installation, QR code quick access is built in!

Digital ID View

Digital ID View strives to promote affordable video security equipment with passion and professionalism for lasting results, and to provide distributors and their dealer network with timely and accurate technical support. They are committed to sharing the latest technology in digital video recording, building channel awareness, and forging partnerships with distributors who are serving the public and the private sectors.

View Information Sheet

Camera Input:	8 CH (PoE)

Video
Input:	8 CH * 5MP
Output:	Max. 5MP/4MP/3MP/1920x1080, 1 HDMI with Audio and 1 VGA

Audio
Input:	1
Output:	1

Display
Split Screen:	1, 4, 8, PIP
Auto Channel Switching:	Switching Time: 1 ~99 sec
Mode:	Zoom (Digital x2 ~ x5), PIP, Auto SEQ.

Recording
Recording Throughput:	5MP/4MP/3MP/2MP/1280 * 720 @ 30/25 fps
(60Hz/50Hz IP Camera):	5MP/4MP/3MP/1920 * 1080 @ 30/25 fps
Mode:	Continuous, Event, Schedule

Playback
Search Mode:	Date / Time, Event
Zoom:	*Digital (x2 ~ x5)

Network
Network Interface:	10/100/1000 Ethernet
Protocol:	TCP/IP, SMTP, HTTP, DHCP, PPPoE (ADSL), NTP, DDNS, FTP, SMTP
ONVIF:	Yes
Remote Software:	iWatch DVR, IE Browser, ICMS
Account:	1 Admin + 10 Users
Mobile Device System:	Windows Phone, iPhone, iPad, Android

Backup
Interface:	USB 2.0, USB 3.0
Audio Backup:	Yes
Backup Type:	Network, Ext. USB flash device, SATA optical DVD..etc

Alarm
Event Log:	Up to the 10000 events (Sensor, Motion, video loss, power on, remote login, logout, HDD error, HDD full)

OSD & DVR Control
Multi-Language:	Supported
Touch Panel:	Touch Panel LCD Monitor (USB Interface, EETI Chipset Only)
System Upgrade:	USB Flash Drive, iWatch DVR

System
Operating System:	Embedded Linux OS
SATA Devices:	• Max. 3 x SATA Devices • (HDDx2eSATAx1, HDDx1+Optical Devicex1+eSATAx1)
External HDD:	YES (eSATA)
Sensor In (NO, NC) Relay Out:	• Sensor-in x 8 • Relay-out x 2
Serial Interface:	RS-485
USB 2.0 Ports:	USB 2.0 x2, USB 3.0 x1
Dimensions:	16.93" x 2.16" x 11.53"
Weight (w/p HDD):	9.5 lbs
Power Rating:	AC 110/220V 300W With 48V (PoE)
