ELE9097 - Element Hz™ 1080p HDMI 4x4 Matrix Switch w/ 3D Support & Android/iOS App Control

Item: ELE9097 | Model: ELE9097

Brand: Element HZ Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

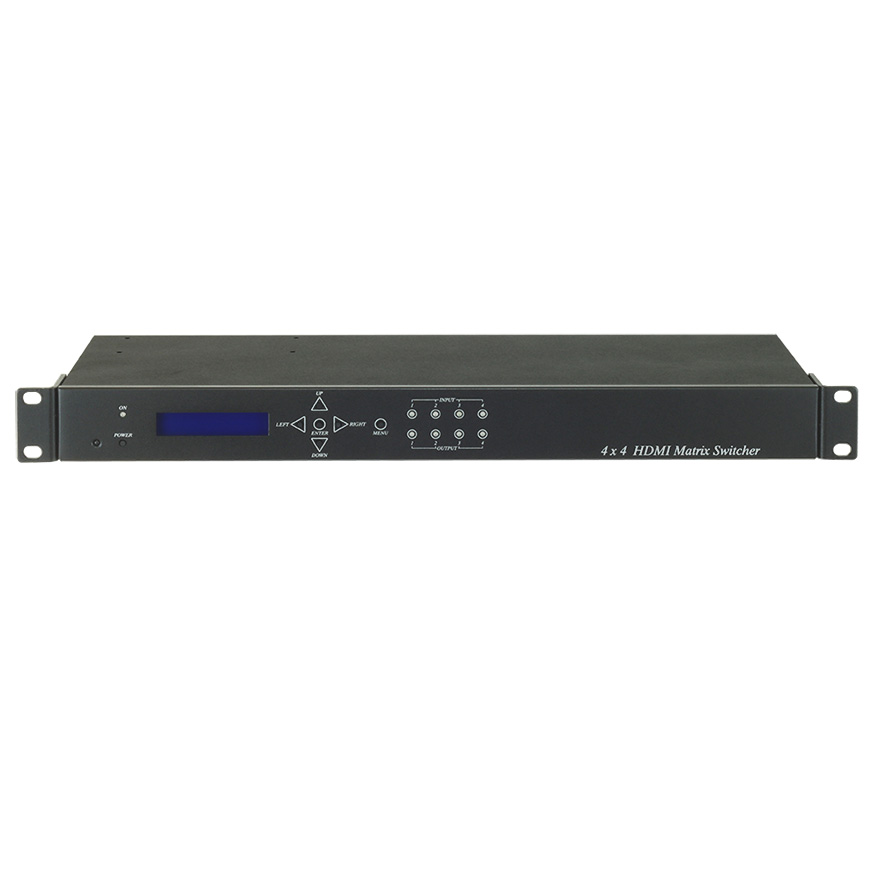

Element Hz™ 1080p HDMI 4x4 Matrix Switch w/ 3D Support & Android/iOS App Control

The ELE9097 4x4 HDMI Matrix Switch allows you to route (4) HD sources to any (4) HD displays! The 4x4 HDMI Matrix switch is a complete HD routing solution for whole home HDTV systems. It provides 3D support, full 1080p, and is 1U Rack mountable for professional installations. In addition, the ELE9097 allows for effortless control of up to (4) devices through Ethernet control, Android/iOS App Control, IR remote control, RS-232, and the front panel.

Control Options

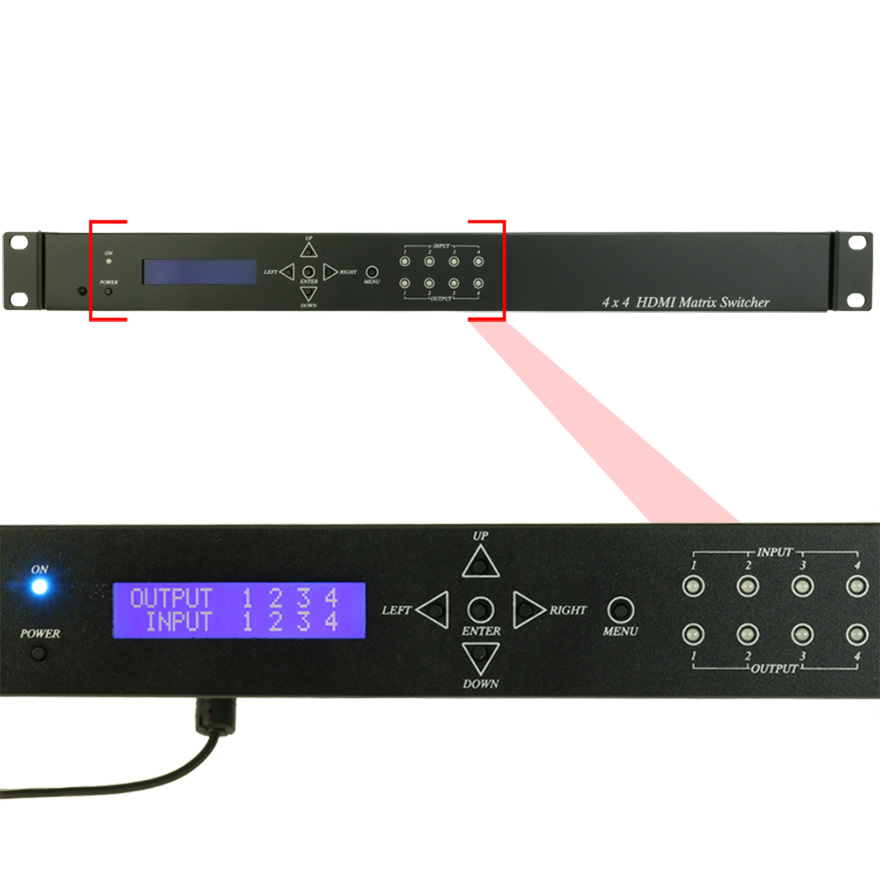

Perhaps one of the most convenient design features of the ELE9097 is the varied control options; Ethernet, RS-232 console, and Android/iOS app controls are all built-in and easy to access to select and configure input/output options. Input/Output for all outlets is displayed at the front panel via LCM and LED for quick and easy status checks. This front panel can be used or the included remote adds instantaneous control.

There are no support documents available for this product at this time.

Features:	Connect up to 4 HDMI sources to 4 HDMI display monitors. 1080p HDMI with 3D Support Easy to use front panel control of switching or using the included remote control. Built in Ethernet Control and Andoird/iOS APP Control. Built in RS232 console port to select input/output. Input/Output status can be display at front panel LCM & LED.
Video Input Interface:	HDMI Type A x 4
Video Output Interface:	HDMI Type A x 4
IR Receive Angle:	+/- 45 degree
IR Receive Distance:	5M
Power Adapter:	DC 12V 6.7A
Power Consumption:	5A
Operating Temperature:	0 to 55°C
Storage Temperature:	-20 to 85°C
Humidity:	up to 95%
