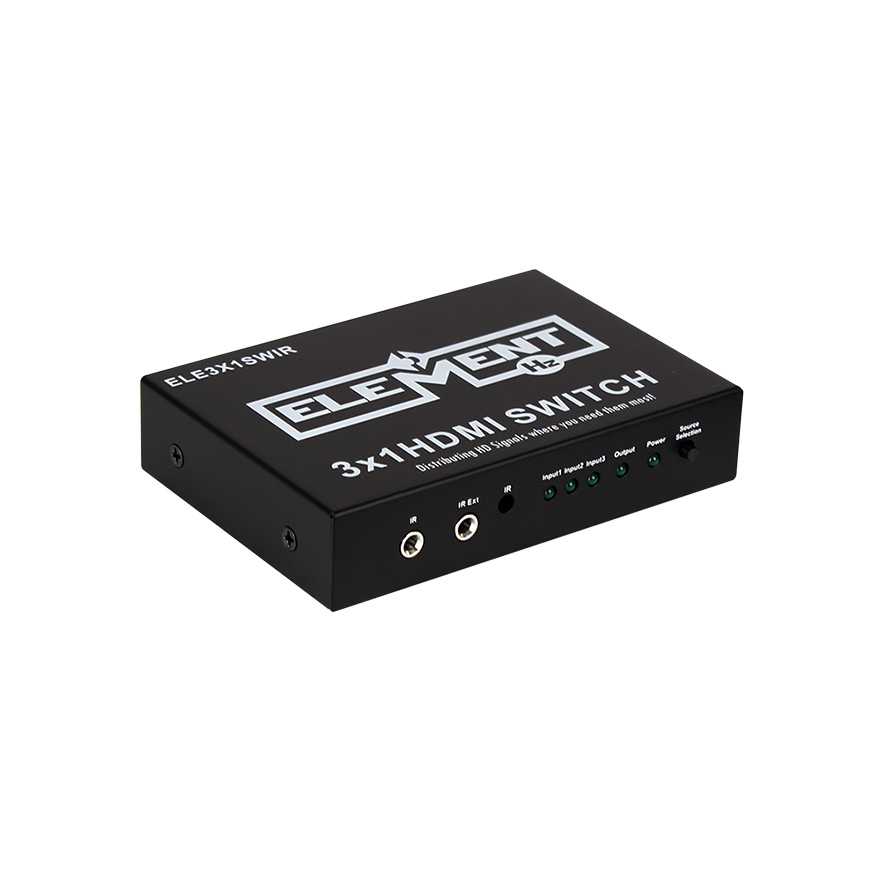

ELE3X1SWIRU - Element-Hz™ 3in / 1out HDMI Switcher with IR Capability **Used/Refurbished Item**
Item: ELE3X1SWIRU | Model: ELE3X1SWIRU

Brand: Element HZ    Last Ordered:

  • Used Item at Discounted Price
  • Fair to Good Condition - Sold As Is
  • All Necessary Parts Included - Minimal Use
  • 30-Day Return Policy


Questions Email
Call Today
Call Today (800) 844-9555


Element-Hz™ 3in / 1out HDMI Switcher with IR Capability **Used/Refurbished Item**

Do you have more devices than HDMI inputs on your TV or A/V receiver? Do you hate having to swap out HDMI cords anytime you want to switch sources or consoles? If you answered yes to either of these questions, and/or would like to expand your HDMI usage, The Element-Hz™ 3-in-1 HDMI Switcher is just what you are looking for. Access multiple HDMI sources at the touch of a button, and retain the full HD and 3D quality you want.

Fair to Good Condition

Our Used Items are slightly handled and range from fair to good condition. Many of the products we sell as Used have never required repair and are in perfect working condition. Other times they were refurbished to like new condition when minor repair was needed. We do not do component level repair.

What to expect when purchasing a Used item:

  • All parts included
  • Original box and additional contents (manuals, extra hardware, accessories, etc.) may be unavailable
  • Slightly used or repaired to like new condition
  • Product may contain a few blemishes, scratches or small dents
  • No significant wear and tear to product but keep in mind this product is being sold as used
  • Product in original packaging or repackaged in different carton(s)
  • Original packaging may be replaced or out of shape from shipping
  • 30 day return policy

Multiple Inputs

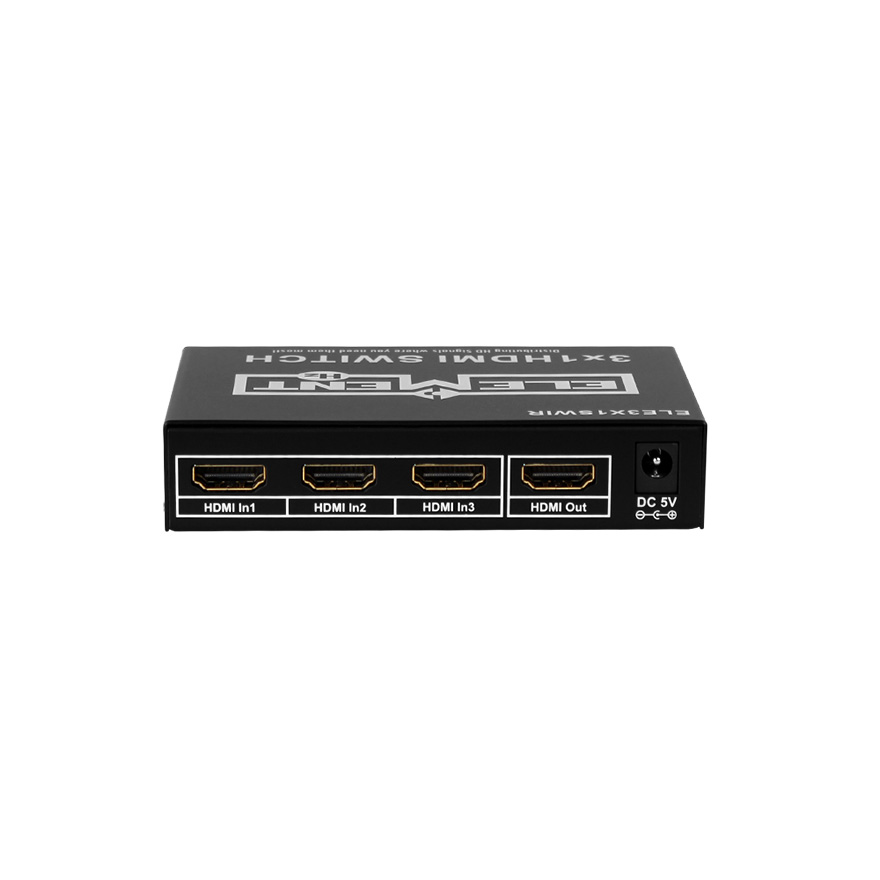

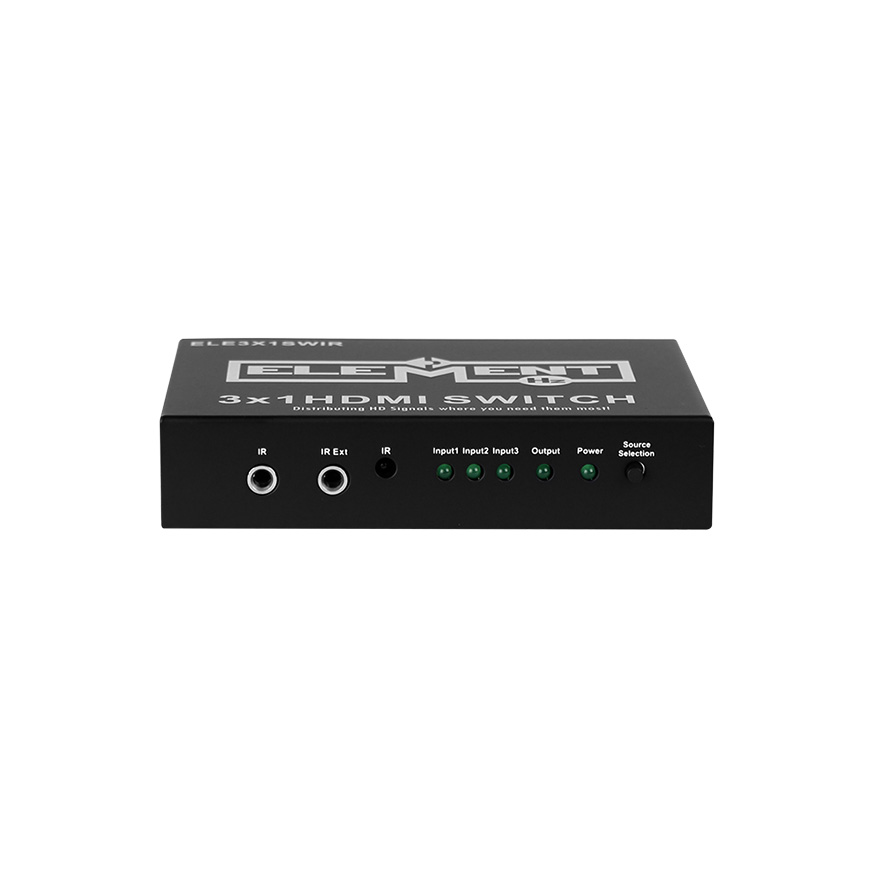

Connect up to (3) separate HDMI sources to the switcher to simplify, save room, and overall increase the efficiency of your entertainment system. Connect the output to your display via (1) HDMI output cable (not included). Easily toggle between your source devices either with the included remote or source selection button located on the face of the switcher. The compact size of the switcher guarantees minimal intrusion of valuable space.

IR Compatible

When used in conjunction with the 3D ready ELE9191IR Element-Hz™ HDMI IR Control Kit, equipment can be controlled without installing additional wires. When the signal from your remote control hits an IR sensor (not included), the signal travels into the transmitter unit and is injected into your HDMI cable. On the other end of the cable, the receiver unit picks up the signal and outputs it through an IR emitter which is facing your video equipment's IR sensor. This option gives you perfect control of your video devices every time! Take a look at the diagram below.

High Speed 3D

The Element-Hz™ 3-in-1 HDMI Switcher supports Full HD, 3D, and regenerates the HDMI signal for long runs (up to 20 meters). It transfers data at 6.75 Gbps and supports HD resolution up to 1080 – in deep color (24 bit/36 bit). It distributes HD Signals where you need them most!

In the Box

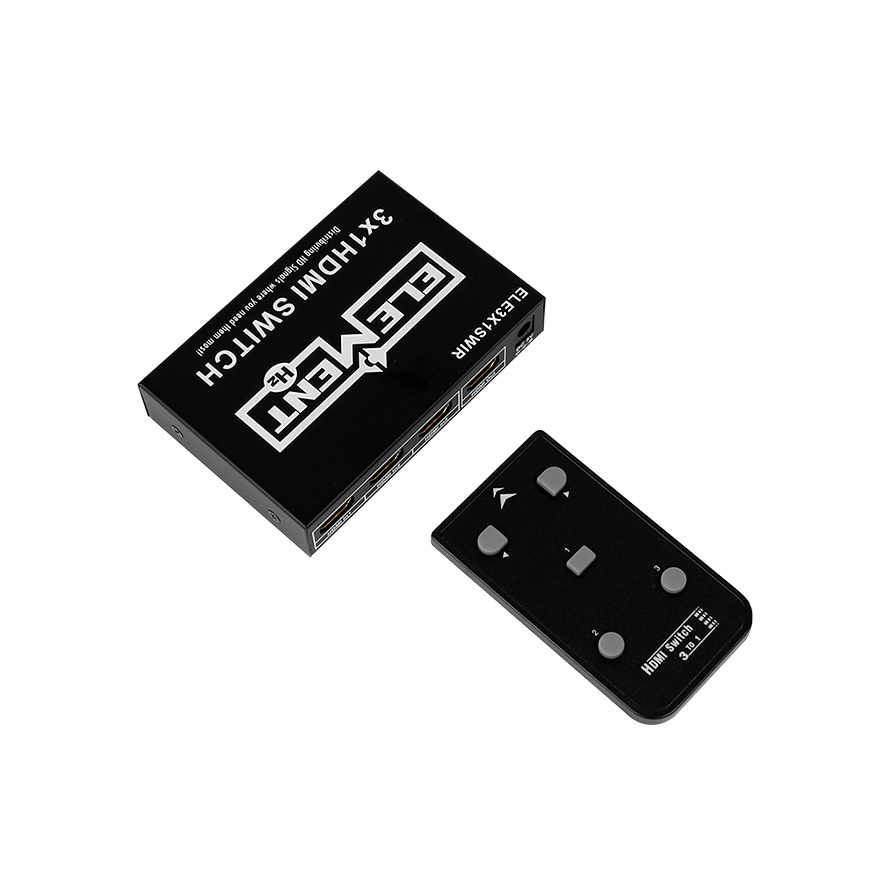

Included, is: (1) 3-in-1 HDMI Switcher, (1) 5V DC Power Supply, (1) Remote Control, and User Manual.

There are no support documents available for this product at this time.
HDMI Version High Speed with 3D
HDCP Version HDCP1.2
Support HDMI Resolution 1080P/1080i/720P/576P/576i/480P/480i
Support Video Color Bit deep color 24bit/36bit
Support Audio Format LPCM/Dolby-AC3/DTS 7.1/DSD
Input Video Signal 5.0 Voltz P-P
Output Cable Distance = 20m
Input Cable Distance = 20m
Data Transfer Speed 6.75Gbps
Operating Humidity Range 5 to 90% RH (No Condensation)
Operating Temperature Range -15 to +55C (5 to 131F)
Power Adapter Format Input AC(50Hz.60Hz) 100-240V
Power Supply DC 5V
Condition: Used/Fair to Good
