Element-Hz 40M HDMI Extender Over Cat5e/Cat6 (HD BaseT)

Extend HDMI signals over long distances! The Element HDMI Extender distributes the signal via Cat5e/Cat6a/Cat7 cable at 50~70m/POC. It also enables IT and RS232 pass-through to control the local source device from a remote or far-end display.

Features

This extender supports bi-directional POC and uses a single UTP LAN cable, and transmits 1080P@60Hz up to 70 meters and 4K x 2K@30Hz up to 50 meters.

There are no support documents available for this product at this time.

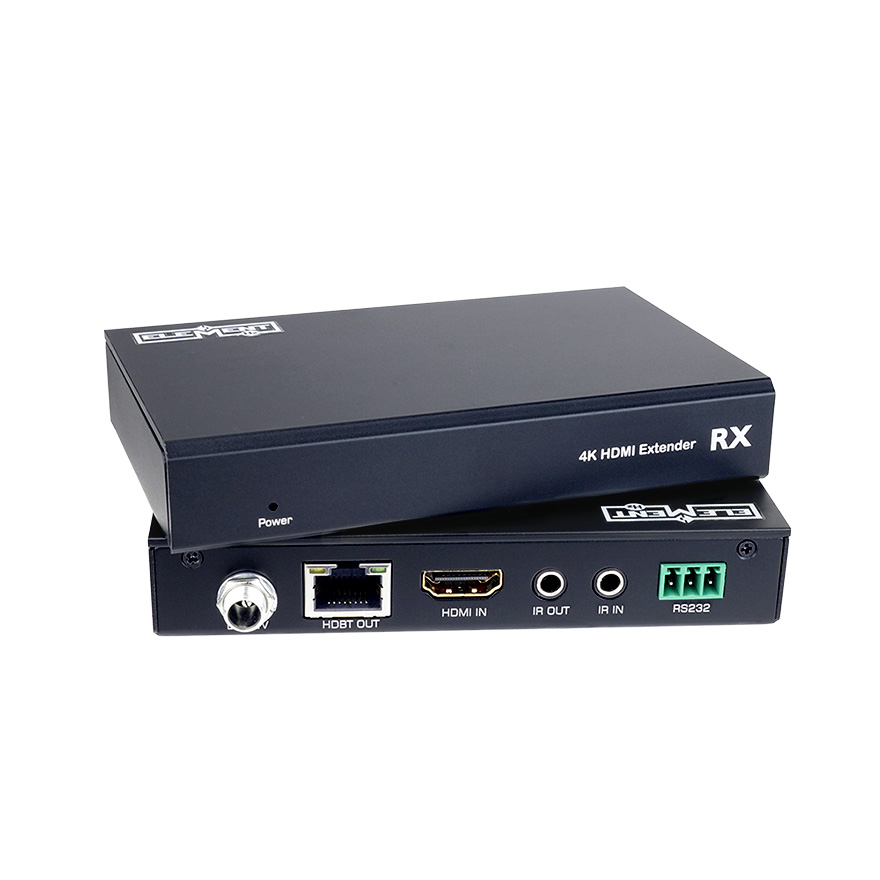

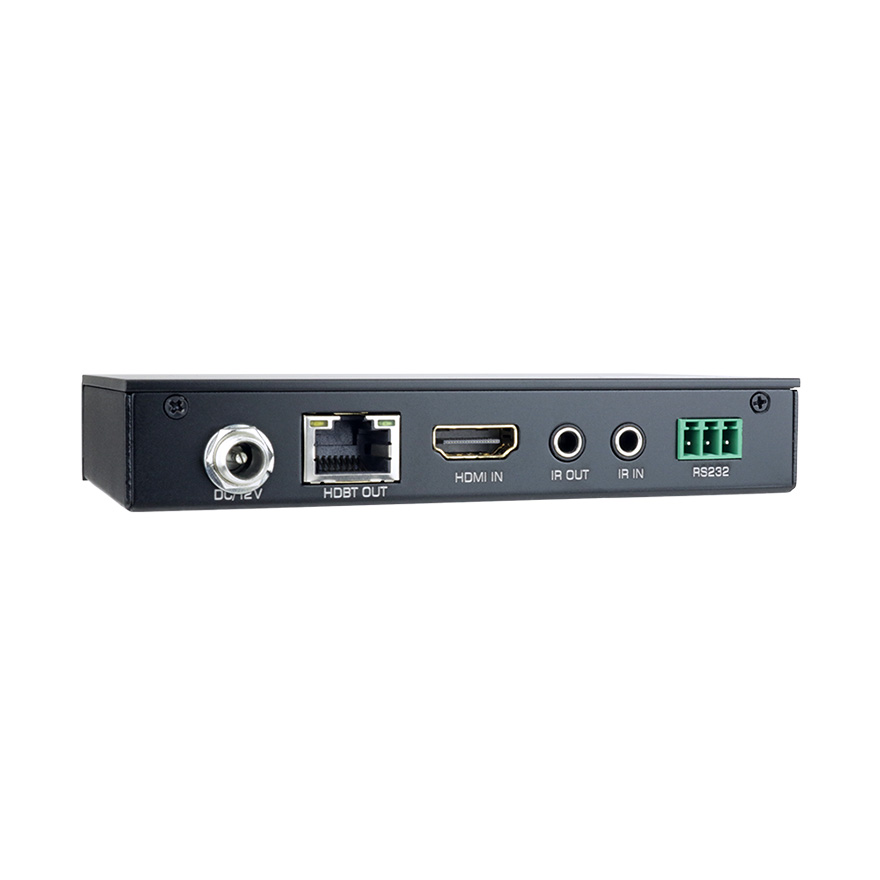

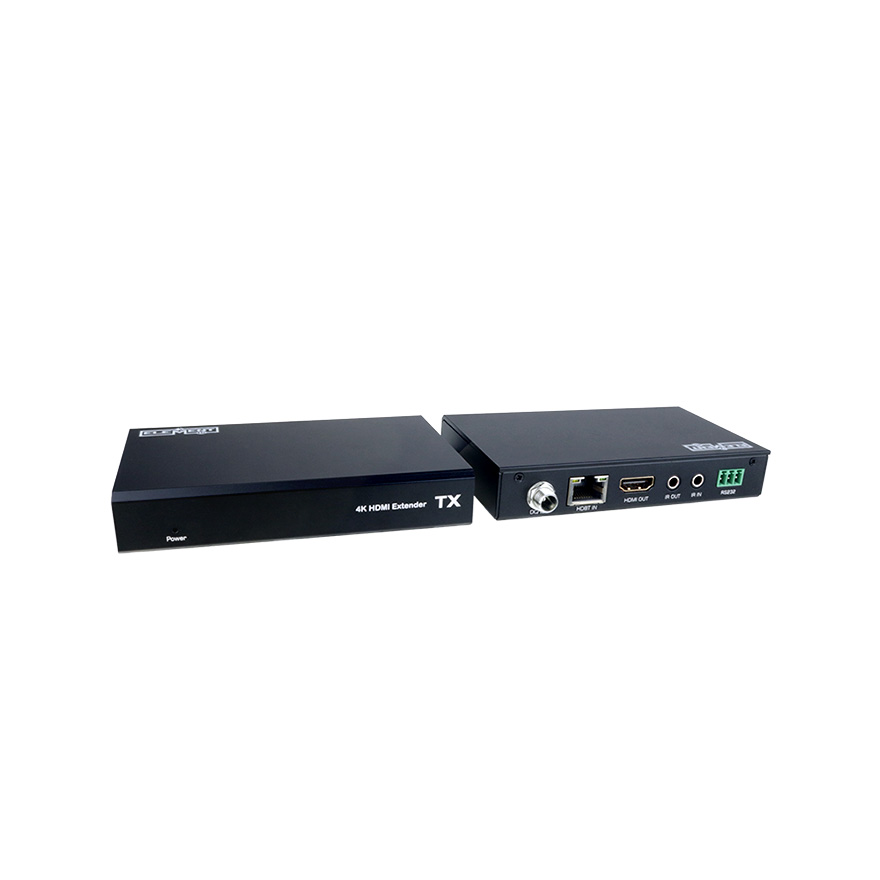

HDMI Transmitter Input/Output Ports:	(1) HDMI Female Ports / (1) CAT6 / (1) IR Transmitter / (1) IR Receiver
HDMI Receiver Input/Output Ports:	(1) HDMI Female Port / (1) CAT6, (1) IR Transmitter, (1) IR Receiver
Power Supply:	DC 12V 2A
ESD Protection Human Body Model:	+/- 8kV (air-gap discharge), +/- 4k V (Contact Discharge)
Dimensions (mm / W x D x H):	65mm W x 100mm D x 25mm H
Operating Temperature:	0°C ~ 40°C / 32°F~104°F
Storage Temperature:	-20°C~90%RH (Non-Condensing)
Power Consumption (Max):	20W
