Element-Hz™ 5 x 1 HDMI Switcher w/ 4K x 2K Capability & Source Lock
Do you have more devices than HDMI inputs on your TV or A/V receiver? Do you hate having to swap out HDMI cords anytime you want to switch sources or consoles? If you answered yes to either of these questions, and/or would like to expand your HDMI usage, The Element-Hz™ 5 x 1 HDMI Switcher is just what you are looking for. Access multiple HDMI sources at the touch of a button, and retain the full HD and 3D quality you want. Plus, this model features the ability to lock on a single source of your choice!
Multiple Inputs
Connect up to (5) separate HDMI sources to the switcher to simplify, save room, and overall increase the efficiency of your entertainment system. Connect the output to your display via (1) HDMI output cable (not included). Easily toggle between your source devices either with the included remote or source selection button located on the face of the switcher. The compact size of the switcher guarantees minimal intrusion of valuable space.
Auto-Switching Function
When a new source device is connected and turned on, the HDMI Switch automatically selects that input. When turning the currently selected source device off the HDMI Switch automatically bypasses the inputs that are without an active signal and selects the next highest numbered input that has an active signal. The HDMI Switch will automatically switch to the last selected source input when restarted.
Input Lock Function
This feature locks the input automatically to whichever one you set. To enable this feature, simply press the “lock” button on the remote control. The currently selected source input will be locked and the LED of that input changes to Purple. When an input is locked, the auto-switching function will not interfere with the locked input. To disable this, press the “lock” button again – the currently locked input will be unlocked and the auto-switching function will be re-enabled. If the HDMI switch is restarted, or if the source on a locked input is powered off, the input lock function is disabled.
4K x 2K
Enter the future of hi-def with the benefits of 4Kx2K. This is the latest in High Definition TV resolution and provides such a clear picture that the future is now.
High Speed 3D
The Element-Hz™ 5 x 1 HDMI Switcher supports Full HD, 3D, and regenerates the HDMI signal for long runs (input 10M max / output 15M max over 24AWG standard 4K HDMI Cable). It transfers data at 10.2 Gbps and supports HD resolution up to 1080 – in deep color (24 bit/48 bit). It distributes HD Signals where you need them most!
Supported Audio Formats
This unit is compatible with a variety of today’s latest audio formats; Dolby Digital and AC-3, DTS-HD Master Audio, DTS, LPCM, PCM, DSD. It’s perfect for use with any audiophile’s entertainment setup.
IR Remote Included
Included with the switcher is a custom IR Remote Control that allows you to power on/off the unit, toggle and switch inputs, cycle active inputs (perfect for security camera setups, and lock/unlock the selected input.
In the Box

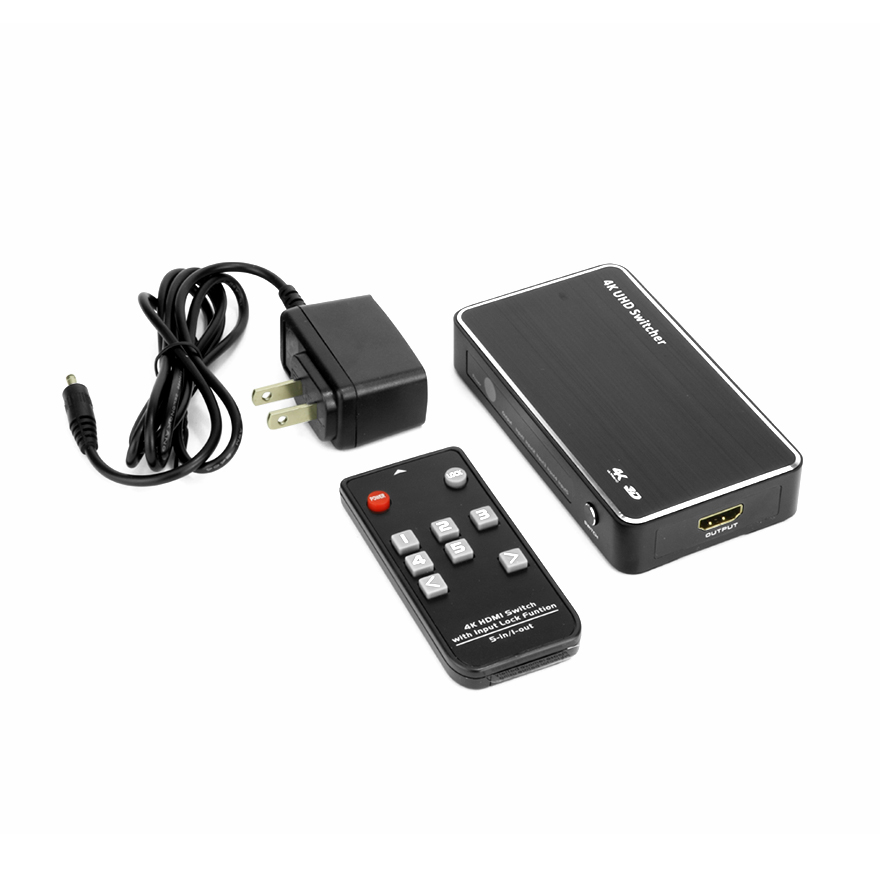

Included, is: (1) 5 x 1 HDMI Switcher, (1) 5V DC Power Supply, (1) Remote Control, and User Manual.
