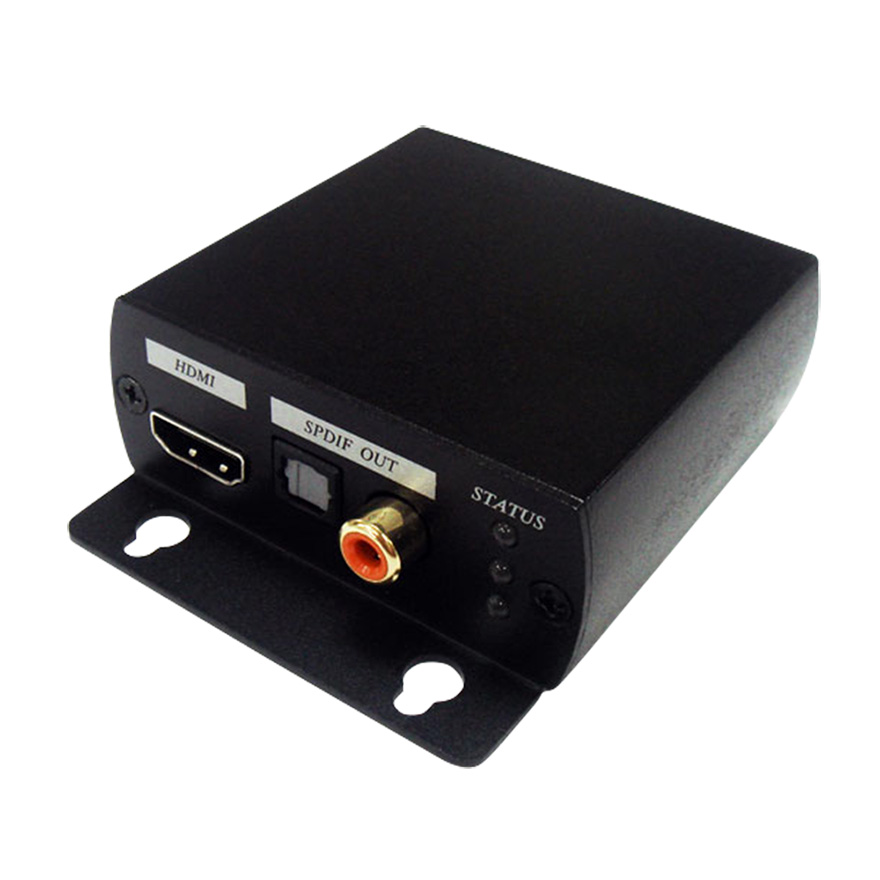

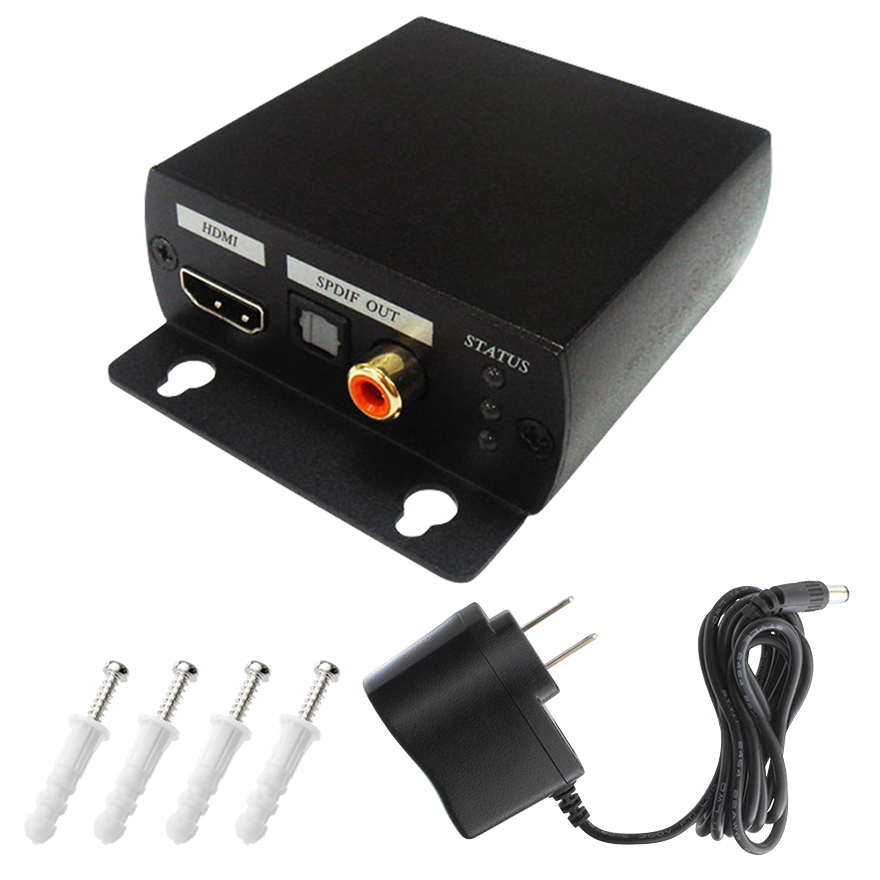

Element Hz™ HDMI Digital Audio Converter w/ ARC

The compact HDMI Digital Audio Converter with ARC is designed to embed/extract digital audio from ARC enabled devices. It’s perfect for use when the AV receiver or TV Monitor in your customer’s setup is not ARC compatible. The HDMI Digital Audio Converter with ARC can decode or encode HDMI audio to its digital input/output for easy integration with their existing surround sound system. Oh, and the ELE7084 supports both coax and optical input/output!

Multiple Setup Options

The HDMI Digital Audio Converter features Extraction and Embed functions. Both setups are intended for TV’s without ARC function, and require simple connection to the AV Receiver and TV via a typical HDMI cable. Whether you need Extraction or Embed, it’s only too easy to set up for convenient operation.

There are no support documents available for this product at this time.

Features:	ARC decoder/encoder. Designed to be used with an AV receiver or TV without ARC function. Decodes HDMI ARC audio to digital audio. Encodes digital audio to HDMI ARC output. Supports Coax and optical input/output. ARC to AC Center Mode does NOT support CEC boot functions.
Choosing a Setup:	Using Extraction Function Connect HDMI IN to AC Receiver HDMI Out. HDMI Out connects to TV HDMI input. For use with an AV receiver without ARC function, connect the ELE7084 optical or coax output to the AV receiver audio input to decode the TV ARC signal. Note: the optical and coax signal can be output simultaneously. Using Embed Function Connect HDMI IN to AV Receiver HDMI Out. HDMI OUT connects to TV HDMI input. For use with a TV without ARC function, connect the ELE7084 optical or fiber input to the TV audio output to encode digital audio to ARC. Note: the optical and coax signal can NOT be input simultaneously.
Connectivity:	HDMI In: HDMI input (connect to AV Receiver HDMI output) HDMI Out: HDMI output (connect to TV HDMI input) Coaxial In: Digital audio coax input (connect to TV digital audio coax output) Optical In: Digital audio optical input (connect to TV digital audio optical output) Coaxial Out: Digital audio coax output (connect to AV Receiver digital audio coax input) Optical Out: Digital audio optical output (connect to AV Receiver digital audio optical input)
Video Input/Output:	HDMI Type A
Digital Audio Input/Output:	RCA 75 Ohms, Toslink
Operating Temperature:	0 to 55
Storage Temperature:	-20 to 85
Humidity:	up to 95%

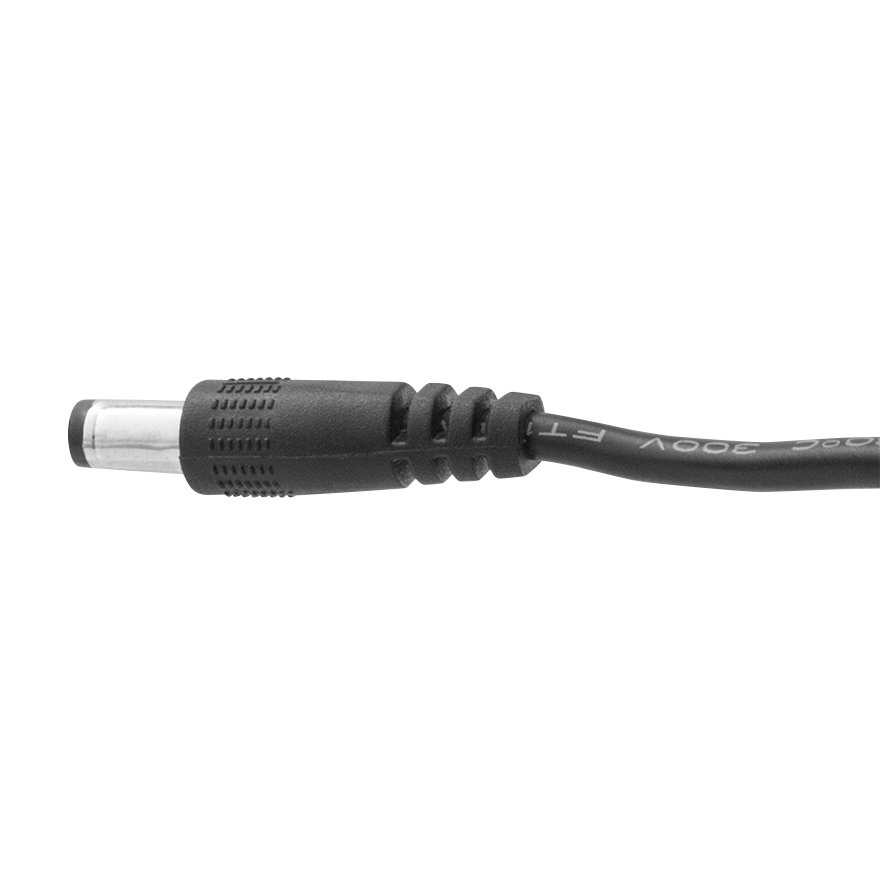

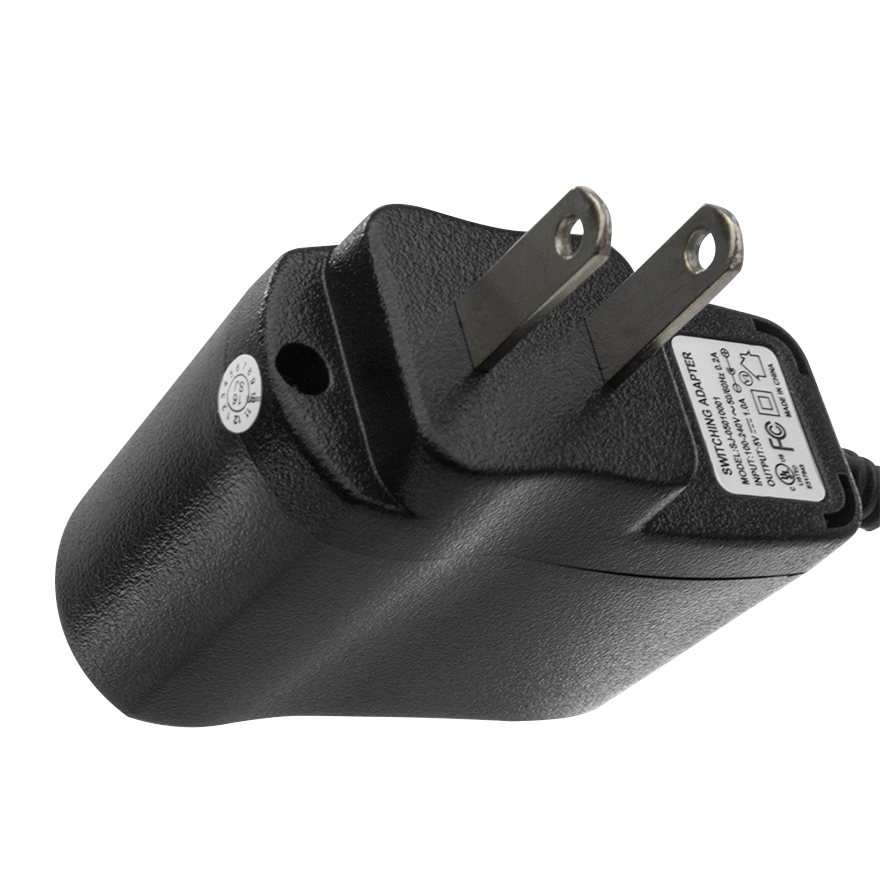

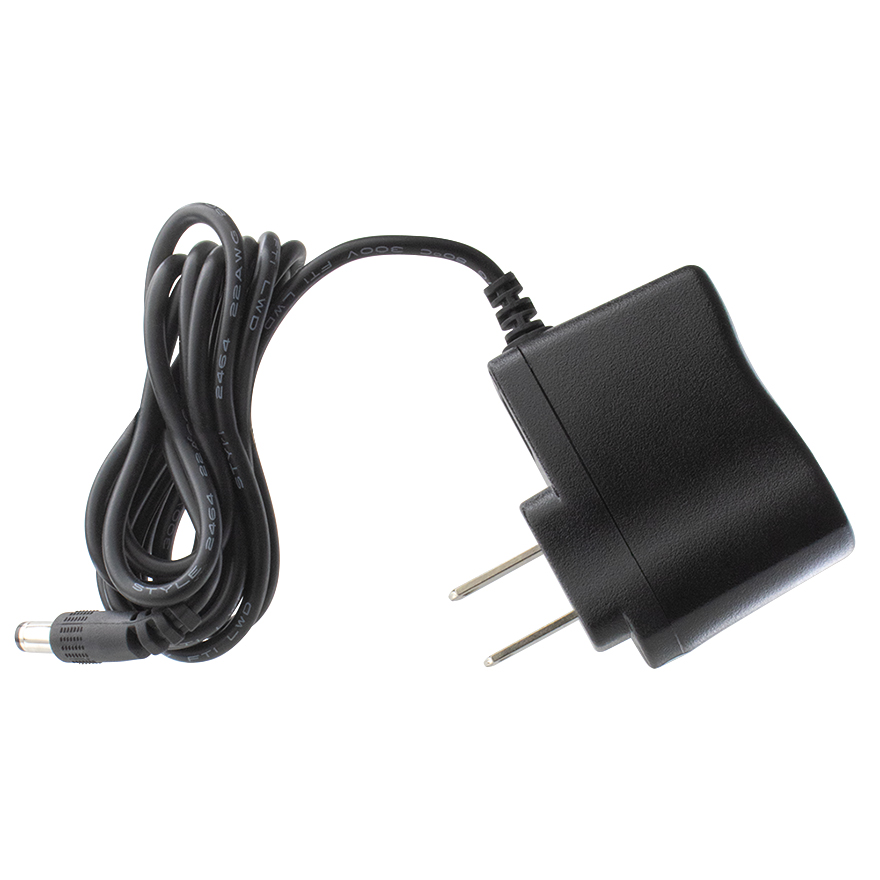

Power Supply:	DC5V 1 Amp
Power Consumption:	90mA (Typical) / 150mA (Max)
Dimensions:	2.64" x 3.58" x 1.06"
Weight:	4.94 oz
