ELE7015 - Element-Hz™ VGA over Cat5e/6 Extender Wall Plate

Item: ELE7015 | Model: ELE7015

Brand: Element HZ Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

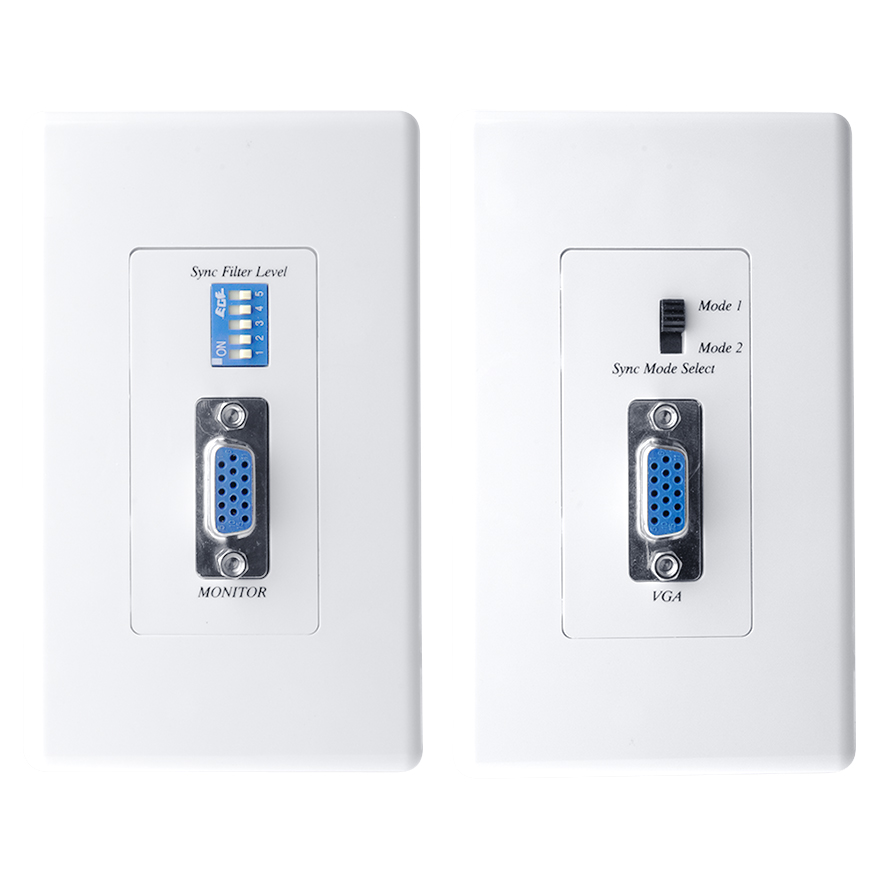

Element-Hz™ VGA over Cat5e/6 Extender Wall Plate

Here’s what you get when style meets function. The Element-Hz™ VGA extender wall plate is both a clean and subtle finish for any install. It extends VGA signals up to 445ft (135m) via one standard Cat5e/6 STP or UTP cable, letting you connect your display or projector from any part of your home or building. The ELE7015 also supports up to 1280 x 1024 pixels, allowing for superb video quality. Transmitter and receiver are both included in a convenient, standard size wall plate.

Virtual DDC

The transmitter features a built-in virtual DDC to avoid any improper resolution or frequency settings. It also features a sync mode selection for signal stability. And as an extra layer of insurance, the receiver has a built-in sync-filter level adjustment for more signal integrity.

The Perfect Finish

Stop worrying that you’ll need to put extra holes in your walls or ceiling! Our décor-style wall plate provides the perfect finish to your install. Elegant, and easy to install, you’ll be more than satisfied with this piece from Element-Hz™.

There are no support documents available for this product at this time.

Max Distance via Cat5e/6 Cable:
∙640 x 480 pixels (15MHz)	443ft (135m)
∙800 x 600 pixels (30MHz)	345ft (105m)
∙1024 x 768 pixels (60MHz)	246ft (75m)
∙1280 x 1024 pixels (100MHz)	197ft (60m)
Wall Mountable:	fits in a standard single-gang box
Includes:	Decora-style wall plate, Transmitter & Receiver
Passive Device:	NO power required
Supports:	up to 1280 x 1024 pixels
Up to:	443ft (135m) via standard 4-pair Cat5e or Cat6
Dimensions w/Plate:	2.75”W x 4.5”H x 2.5”D
