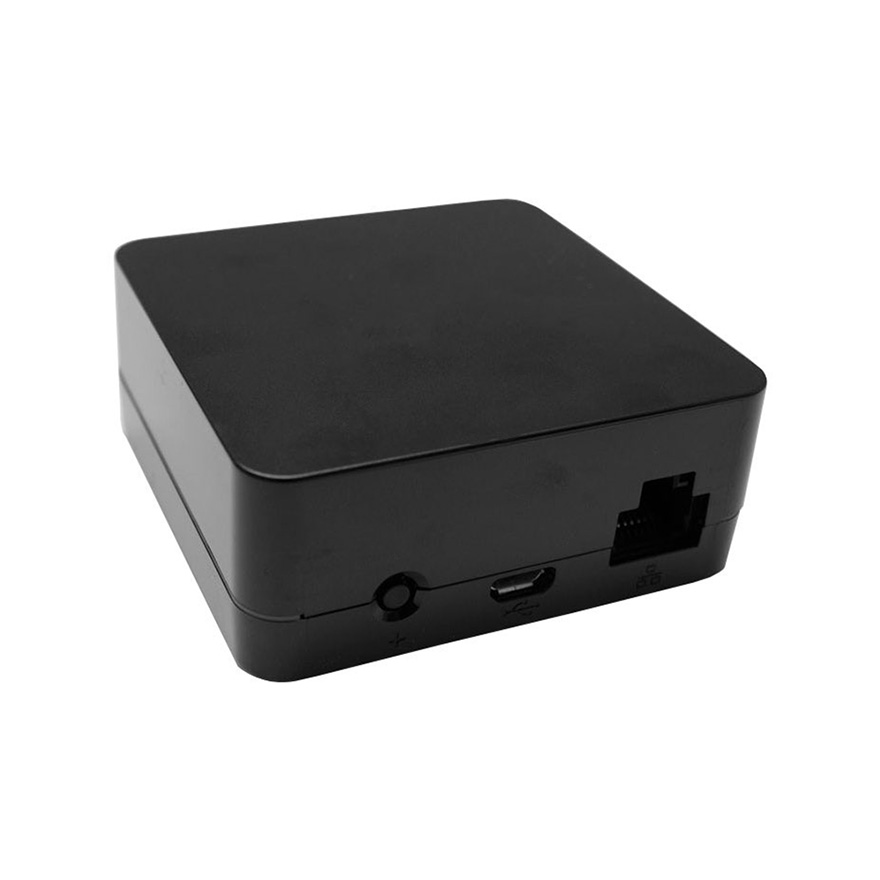

Lutron® CONNECT-BDG2-1 Lutron Connect Bridge

Create a link between the RadioRA 2 or HomeWorks QS system and the cloud! The Lutron Connect Bridge does this to enable remote access to the system.

Features

This Connect Bridge is equipped with time-lock synching to ensure accurate timing, and is compatible with Apple HomeKit technology for up to 99 zones. It integrates with Amazon Alexa enabled devices, and works with the Lutron Connect app.

Lutron®

Lutron is a technology-centered and people-driven company. As a private corporation guided by their founder’s simple but profound Five Principles, Lutron has a long history of significant growth and smart innovations. Lutron holds over 2,700 worldwide patents. In almost 50 years of innovation, Lutron has invented hundreds of lighting control devices and systems, and expanded their product offering from 2 products to 15,000. Since the beginning, the company has maintained exceptional service, offering 24-hour technical support for its products, and a friendly customer service department that sustains close relationships with Lutron clients.

View User Manual

Power:	5 V- 300 mA, Power Supply (CONNECT-BDG2-1): 5 V- 550 mA; cable length 6 ft (1.83 m), Power Supply Kit (CONNECT-BDG2-3): 5 V- 1000 mA; cable length 6 ft (1.83 m)
Typical Power Consumption:	1.3 W, Test conditions: LED on, Ethernet cable plugged in, powered by the 5 V- power supply
Regulatory Approvals:	cULus® listed; certified for IEC/EN compliance; CE marked; FCC/Industry Canada Compliant., CONNECT-BDG2-1 Power Supply (T-5DC-USB-WH): cULus® listed; NOM certified., CONNECT-BDG2-3 Power Supply Kit (T-5V-PS-KIT-BL): cULus® listed; CE marked; CCC certified.
Environment:	Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% non-condensing humidity. Indoor use only.
Communications:	Internet connection is required for initial setup, to maintain system date/time, for remote access from the Lutron Connect app, and to receive periodic firmware updates. Network connection to RadioRA 2 main repeater or HomeWorks QS processor is required. Not a wireless device.
Protection:	Tested to withstand electrostatic discharge without damage or memory loss in accordance with IEC 61000-4-2. Tested to withstand surge voltages without damage or loss of operation in accordance with IEEE C62.41-1991.
Power Failure:	Power failure memory: should power be interrupted, the Lutron Connect Bridge will return to its previous state and reconnect to the Lutron system and cloud services when power is restored.
Connections:	Ethernet: 3 ft (0.92 m) cable included for internet and Lutron Connect Bridge connection via RadioRA 2 main repeater or HomeWorks QS processor. Micro USB cable (power only).
Warranty:	www.lutron.com/TechnicalDocumentLibrary/warranty.pdf, www.lutron.com/TechnicalDocumentLibrary/Intl_warranty.pdf
