PLA2031 - Platinum Tools™ 100047C ezEX®38 ezEX-RJ45® Cat5e Connector (Clamshell Pack of 50)

Item: PLA2031 | Model: 100047C

Brand: Platinum Tools Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

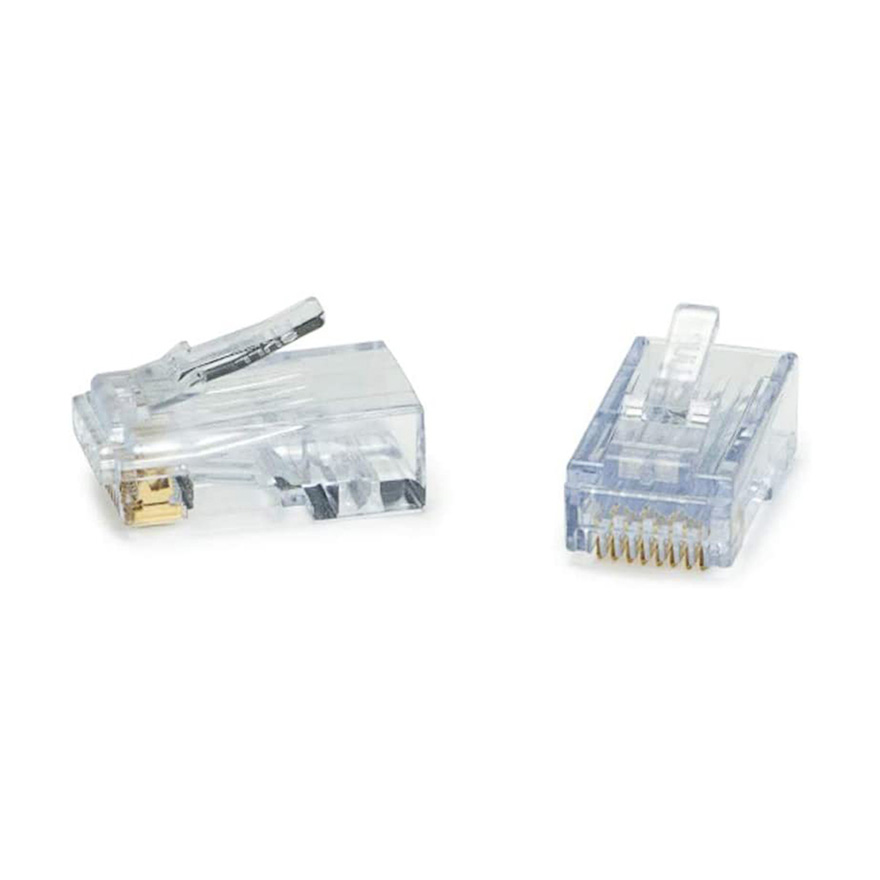

Platinum Tools™ 100047C ezEX®38 ezEX-RJ45® Cat5e Connector (Clamshell Pack of 50)

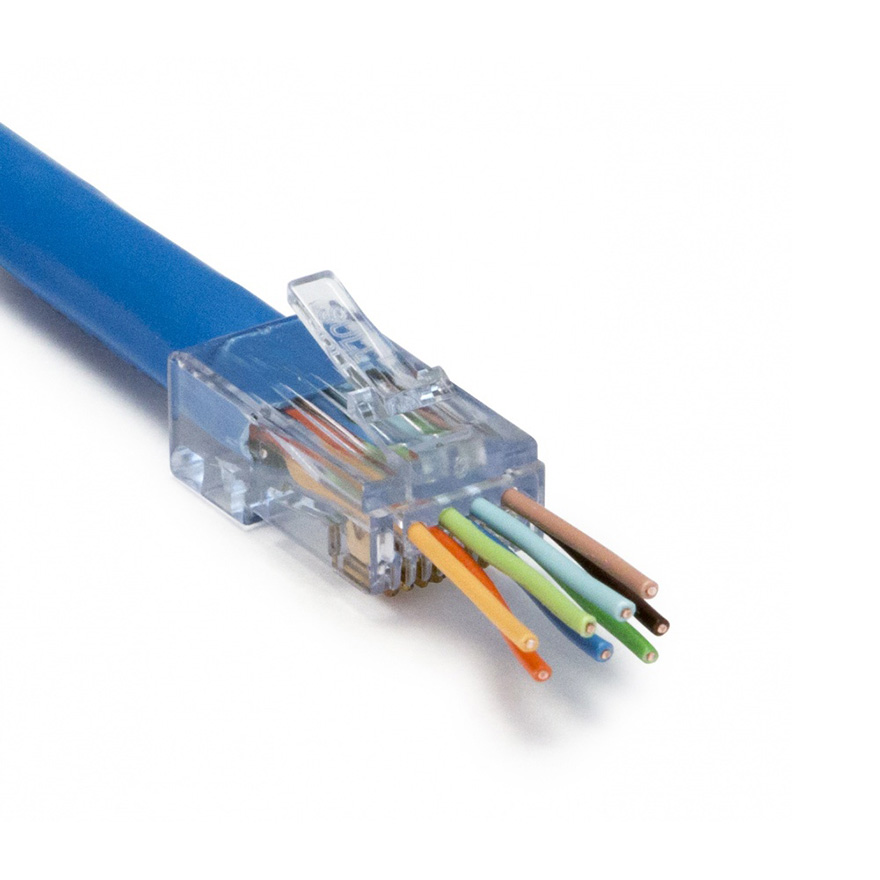

Easy verification! The Platinum Tools™ ezEX®38 ezEX-RJ45® Cat5e Connectors feature a unique integrated Hi-Lo stagger load bar and allows big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. They are used with Cat5e (Sm. Cat6) cabling and is recommended for PoE/PoE+ and Data applications.

Features

These connectors are designed with 50 micron gold plated contacts. They are TIA, TAA, RoHS, UL & FCC compliant, 5e/6/6A compliant, AND proudly made in the USA.

Platinum Tools™

Platinum Tools™, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation, and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of Platinum Tools™ products absolutely must satisfy three critical benchmark criteria, utility of function, quality of function, and economic value.

View Information Sheet

Hi-Lo Stagger:	To isolate each conductor
Simple One-Piece/Pass-Through Design:	No bars or liners
Insulation Diameter (Conductor) Size Range:	.033” – .038” (0.84 –0.97mm)
Max Outer Diameter:	.290” (7.36mm)
Gold Plated Contacts:	50 micron
Compliance:	5e/6/6A
24-22 AWG:	Solid or Stranded
Certifications:	TIA, TAA, RoHS, UL & FCC
Typically Used With:	Cat5e (Sm. 6)
Shielded (STP) Internal Ground Available:	Yes
Made in the USA:	US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
