PLA1151 - Platinum Tools™ 22048J ezEX48 – RJ45® Cat6A Connectors (Jar of 100)
Item: PLA1151 | Model: 202048J

Brand: Platinum Tools    Last Ordered:

  • Same Day Shipping


Questions Email
Call Today
Call Today (800) 844-9555

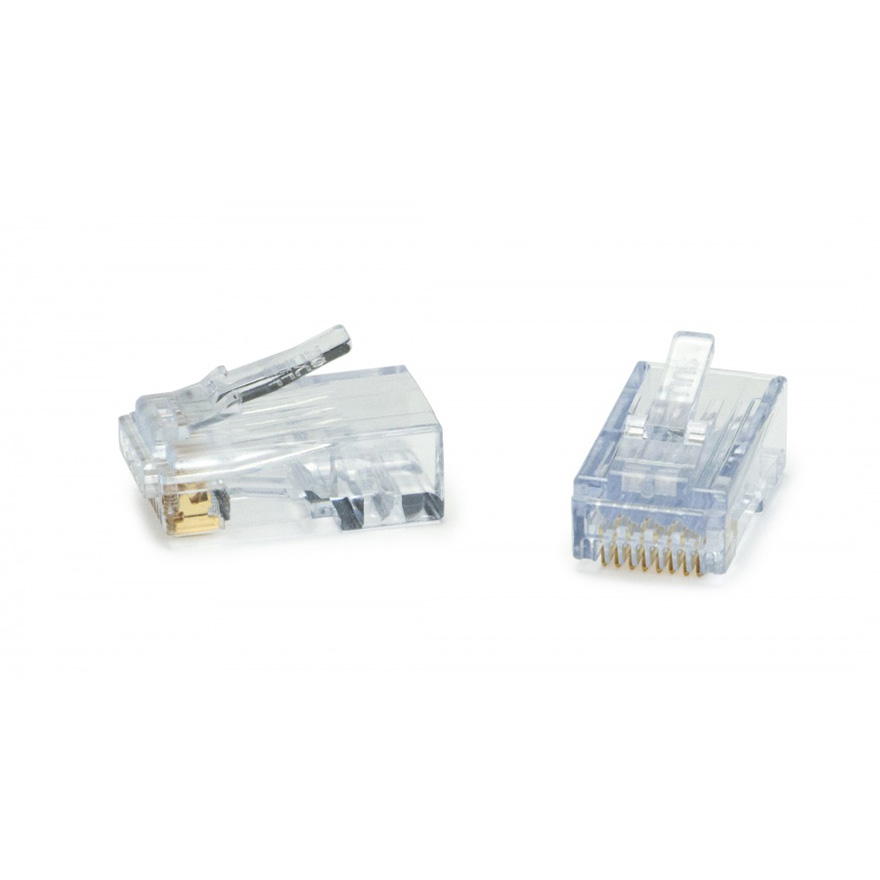

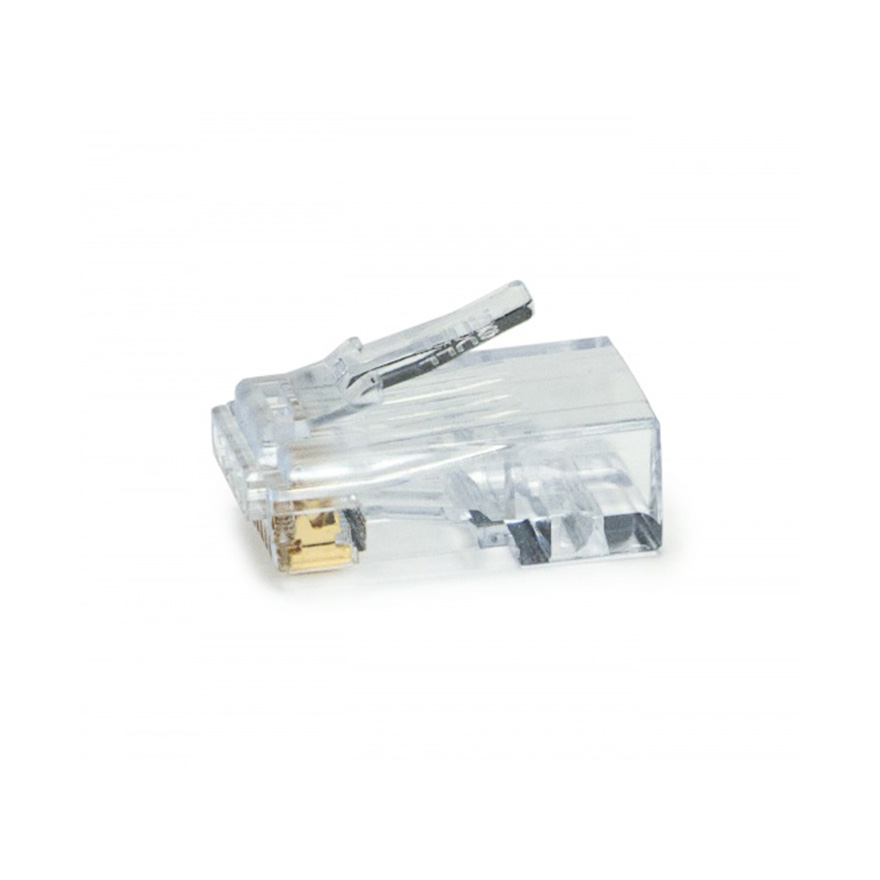

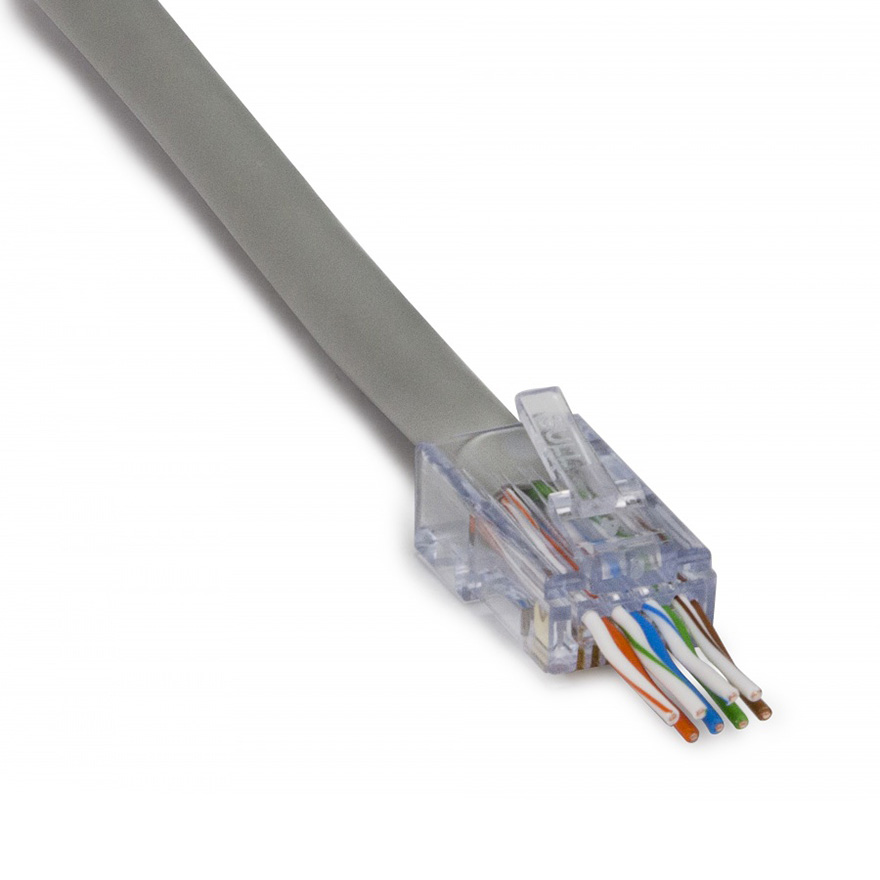

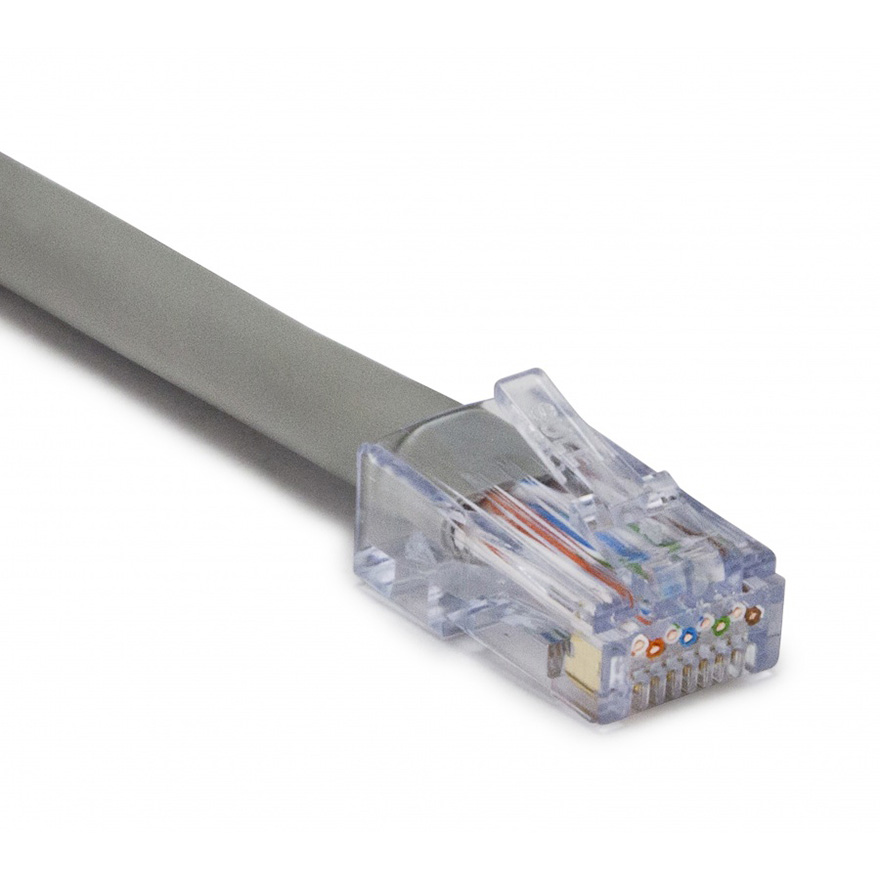

Platinum Tools™ 22048J ezEX48 – RJ45® Cat6A Connectors (Jar of 100)

Get the right fit! The Platinum Tools™ ezEX48 Connectors are designed for solid or stranded wire. They feature a simple one-piece pass-through design that is sure to get the job done and are made for the EXO Crimp Frame.

Features

Designed for larger cables and conductors, these connectors feature a simple one piece/pass through and a Hi-Lo stagger that isolates each conductor. They are also TIA, TAA, RoHS 2, UL, and FCC compliant. Best of all they work with solid or stranded 23-22 AWG and are made in the USA.

Platinum Tools™

Platinum Tools™, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation, and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of Platinum Tools™ products absolutely must satisfy three critical benchmark criteria, utility of function, quality of function, and economic value.

There are no support documents available for this product at this time.
Quantity: 100
Packaging: Jar
Max Outer Diameter:  .290" (7.36 mm)
Insulation Diameter (Conductor) Range: .043” – .048” (1.09 – 1.22mm)
