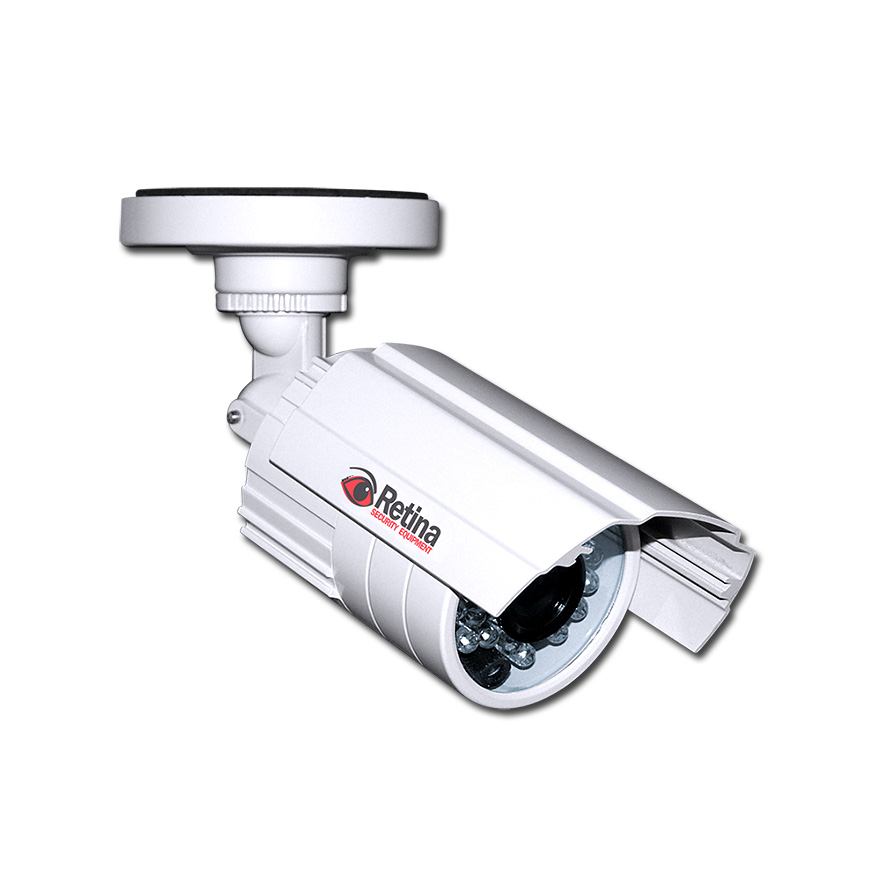

Retina Weather Proof IR Day/Night Camera with Sony Lens & 3 Axis

The RET1026 Weather Proof IR Camera features SONY high resolution CCD sensor technology and a water-resistant housing. This day/night camera comes with a 3.6mm lens and can reach a sight distance up to 20m with its 24 unit infrared LED design. With a horizontal resolution of 420 TV Lines, this security camera is an economical solution built to maintain picture clarity by providing rich color and high definition. The RET1026 also features an auto gain control and an auto electronic shutter.

View User Manual

Pick Up Element:	Sony 1/3" CCD
Effective Picture Elements (H*V):	NTSC (510 x 492) PAL (500 x 582)
Horizontal Resolution:	420 TVL
S/N Ratio:	>48dB
Clock Frequency (MHz):	NTSC (19.0699) PAL (18.9375)
Scanning System:	2:1 Interface
Minimum Illumination:	0 Lux (with IR LED ON)
Synchronous System:	Internal, Negative Sync
Auto Electronic Shutter:	NTSC (1/60-1/100,000) PAL (1/50-1/100,000)
Gama Characteristic:	0.45
IR Distance:	20m . 65.62ft (with 24 unit IR LED)
IR Status:	<10 Lux by CDS
IR Power On:	CDS Auto Control
Video Output:	1 Vpp, 75ohm
Auto Gain Control:	Auto
Power/Current:	12V DC (±10%) / 300mA
Lens:	3.6mm / F2.0 (optional F2.5 / F6.0 / F8.0)
Water Resistance:	N/A
Dimensions:	51mm (W) x 85mm (H) x 60mm (D) (2" x 3.34" x 2.36")
Weight:	1.5 lbs
Storage Temperature:	-30° to +60°C
Operating Temperature:	-10° to +45°C
Power Supply:	Power Supply not Included
