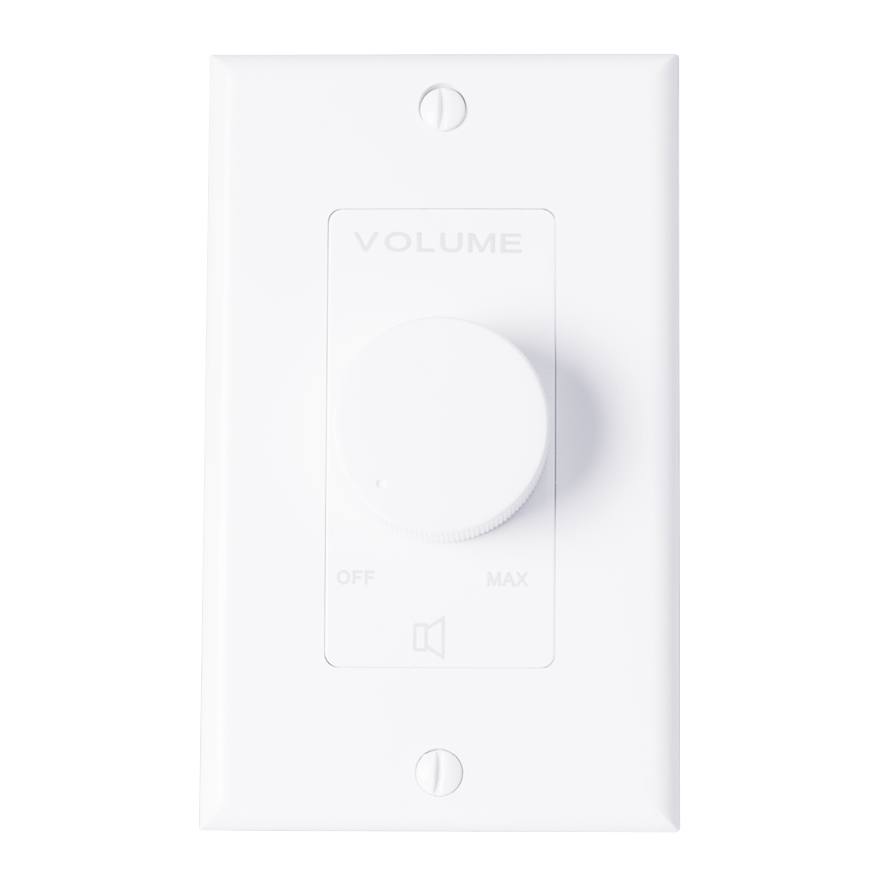

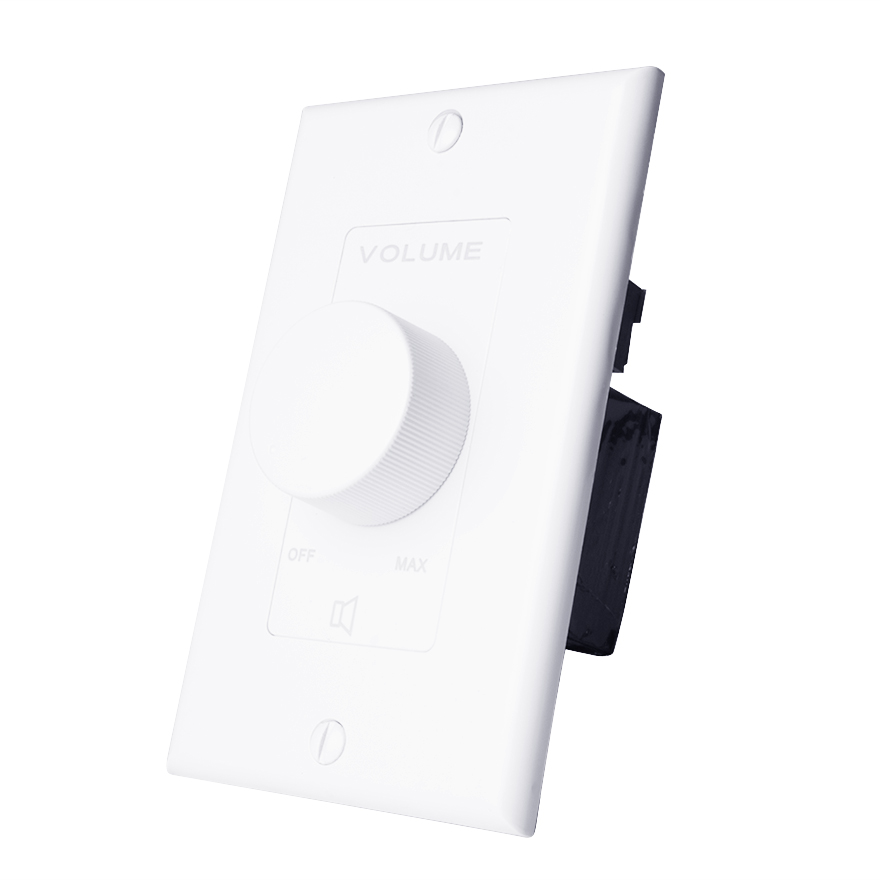

Saga Elite™ 10 Watt 25-70V Volume Control w/ White & Ivory Decora Plates (3dB Steps)

The Saga Elite™ 10 Watt Volume Control is a high-quality auto transformer designed with the advantages of excellent frequency response, low insertion loss, and reliable performance for volume control applications in 25 and 70 volt systems. Attenuation is accomplished in eleven “make-before-break” 3dB steps, plus a positive off position (with no stop between maximum and off positions to prevent switch damage).

Features

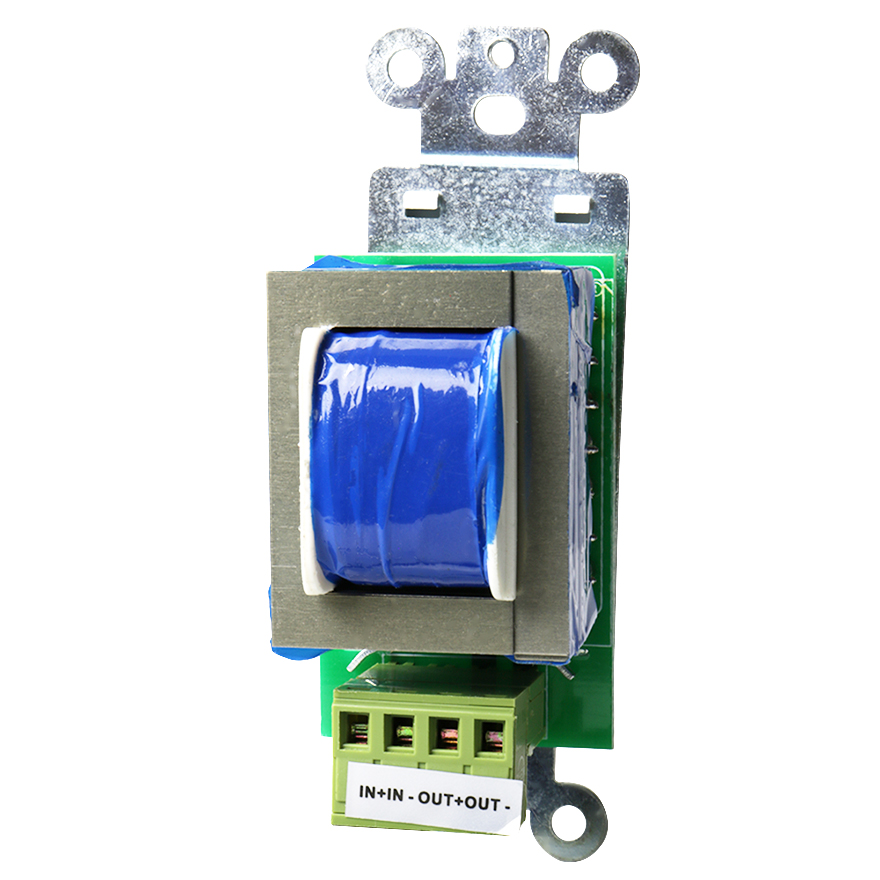

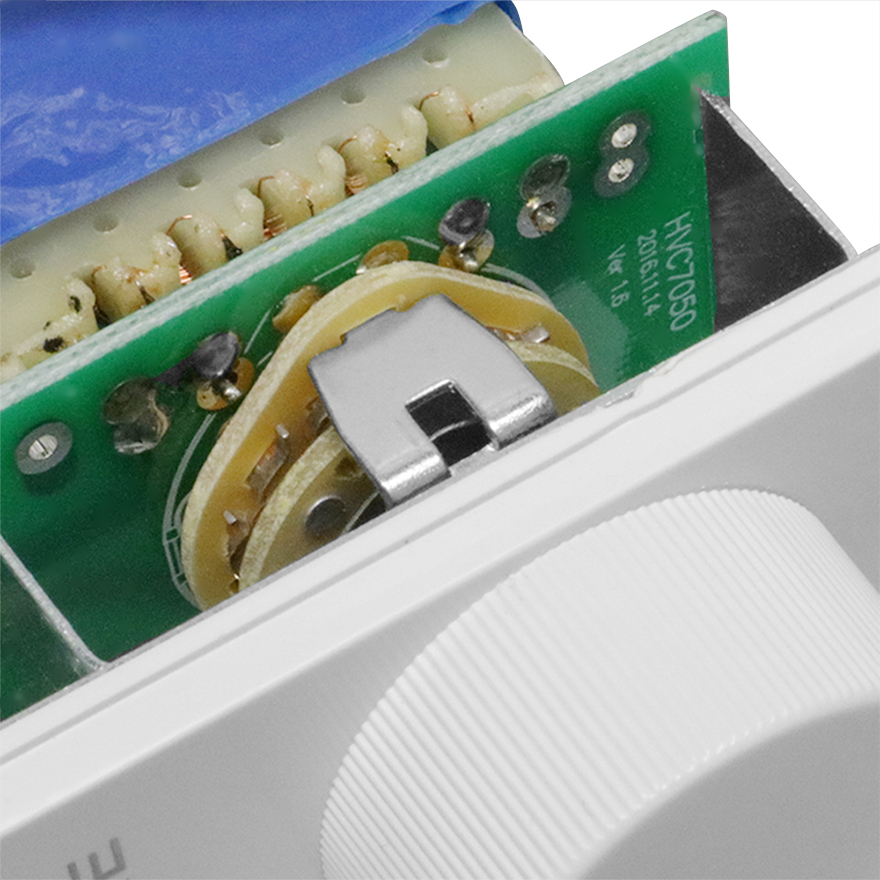

All contacts are silver-plated for noise-free operation. The 10 Watt Volume Control features a removable terminal block, and comes complete with white and ivory decora style plates and matching skirted knobs. Also available in 50W and 100W options (sold separately).

Power Rating:	10W
Total Attenuation:	33 dB
Mount:	Single Gang
Dimensions (L x W x H x D):	4.5" x 2.75" x 4.5" x 2-1/8"
Box Depth:	2"
Total Depth from knob to back:	2-7/8"

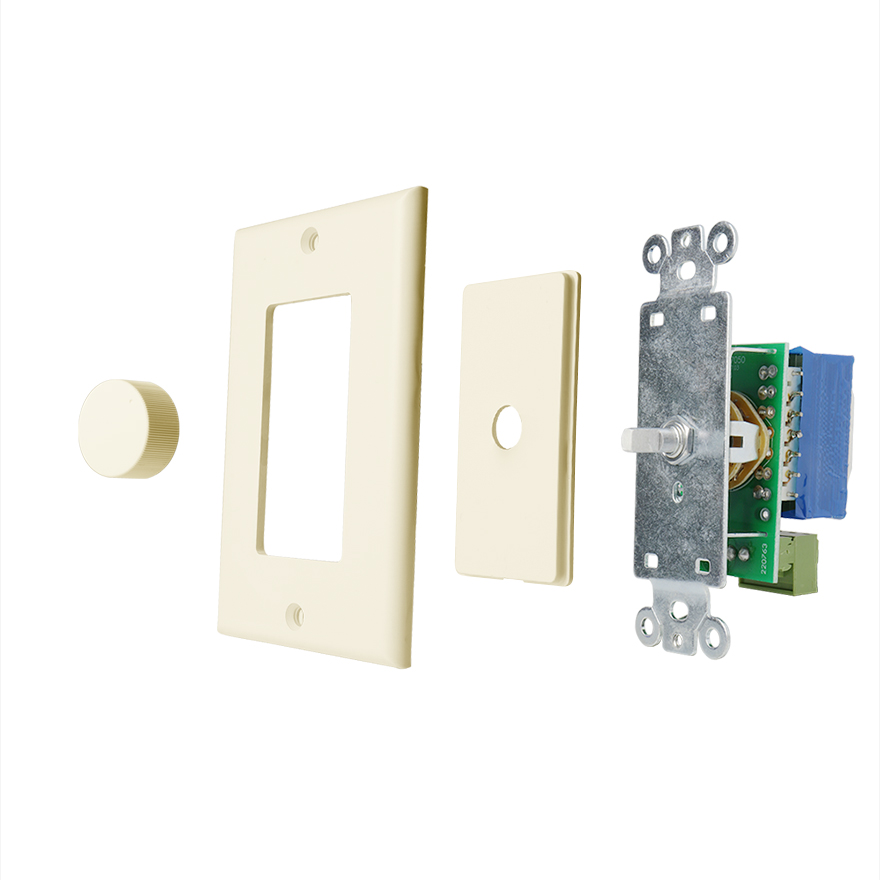

Includes:	White and Ivory Decor Style Plastic Faceplates with Matching Skirted Knobs
