GSC1007 - Simply45® S45-1500 – Cat5e Unshielded Pass-Through RJ45 Modular Plugs (Jar of 100)

Item: GSC1007 | Model: S45-1500

Brand: Simply45 Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

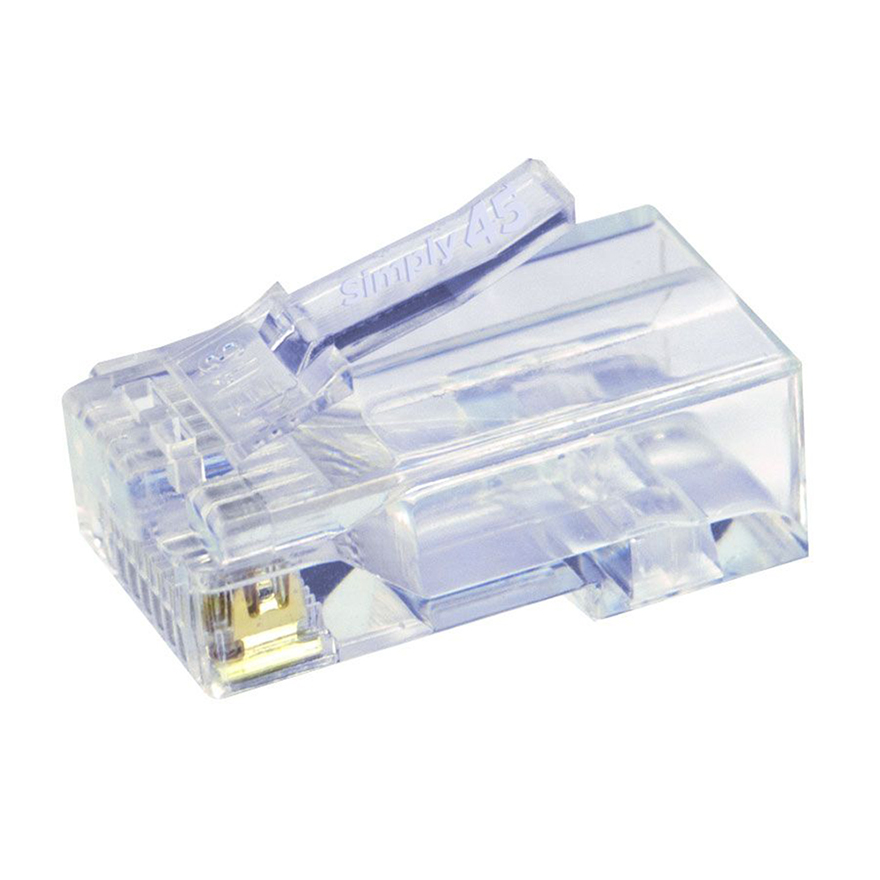

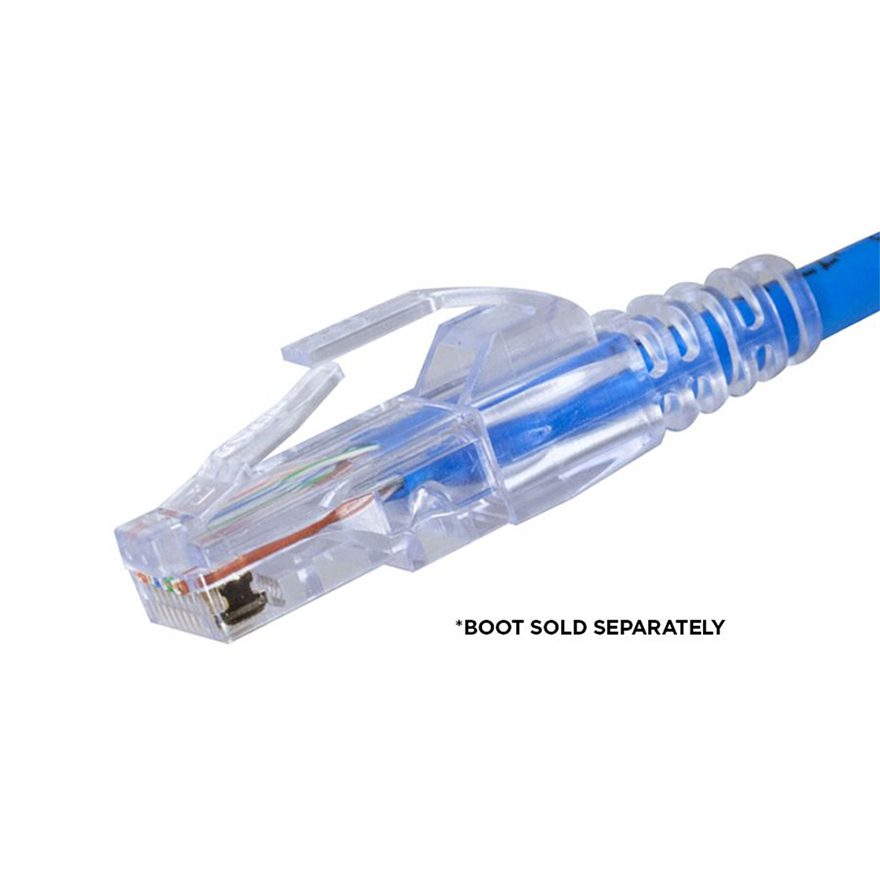

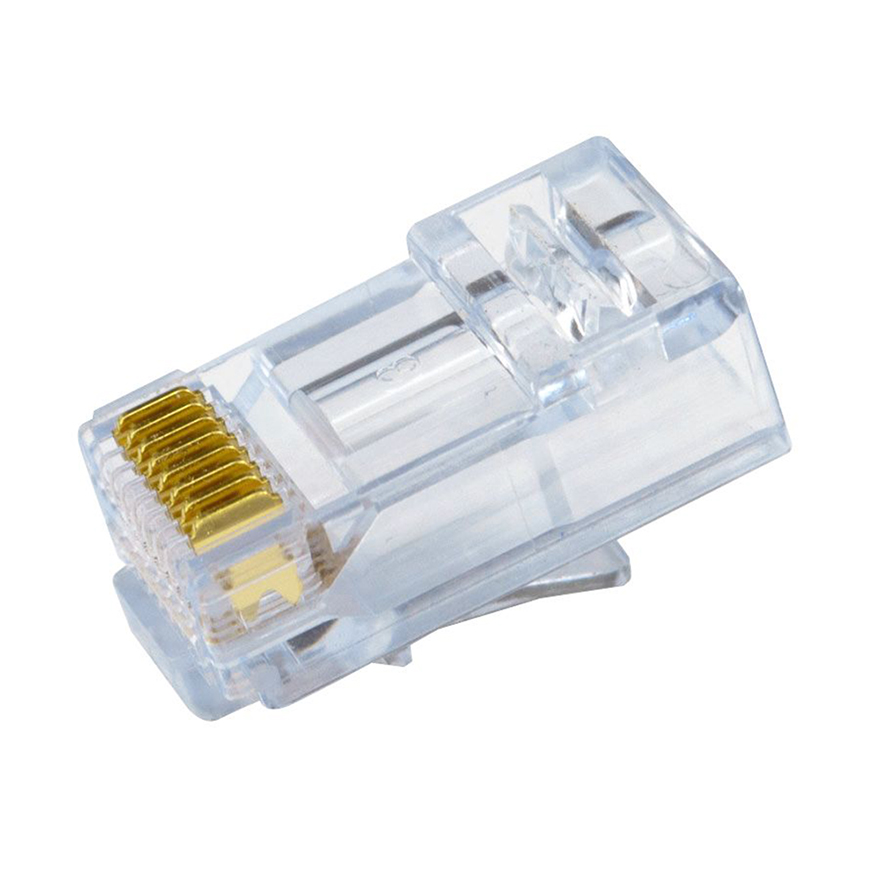

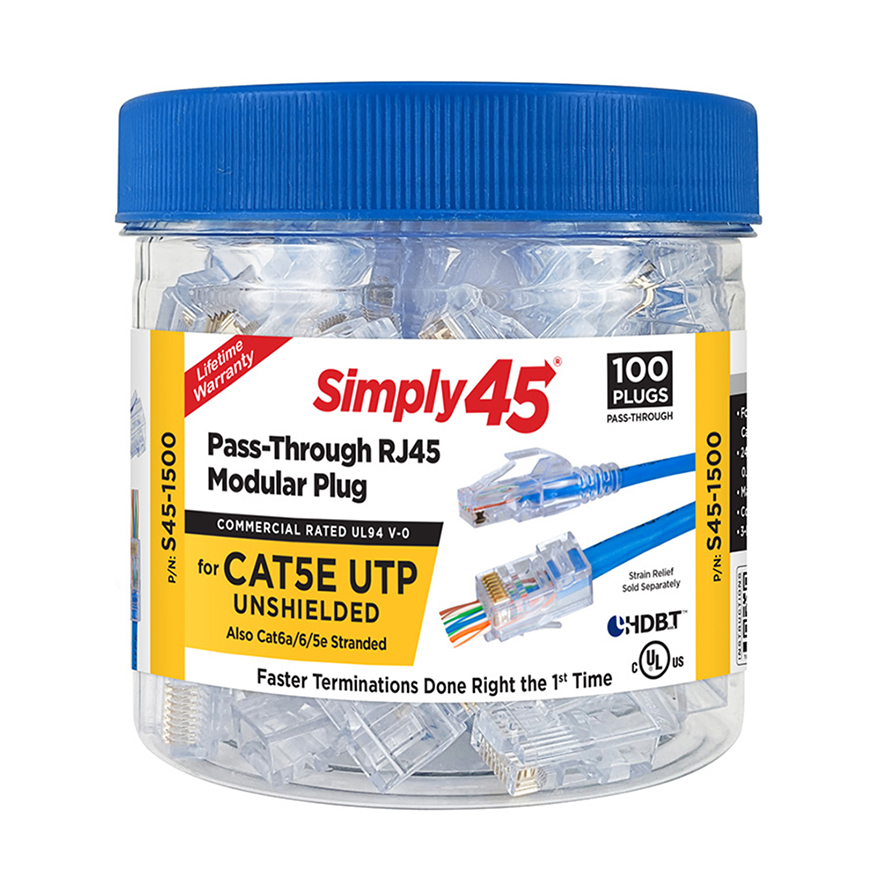

Simply45® S45-1500 – Cat5e Unshielded Pass-Through RJ45 Modular Plugs (Jar of 100)

Always have what you need! The Simply45® Cat5e Modular Plugs are designed for unshielded LAN cables and are made with 50µ 24ct gold plated 3-Prong pins. They work perfectly with Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.95mm – 1.05mm (0.037” – 0.041”).

Features

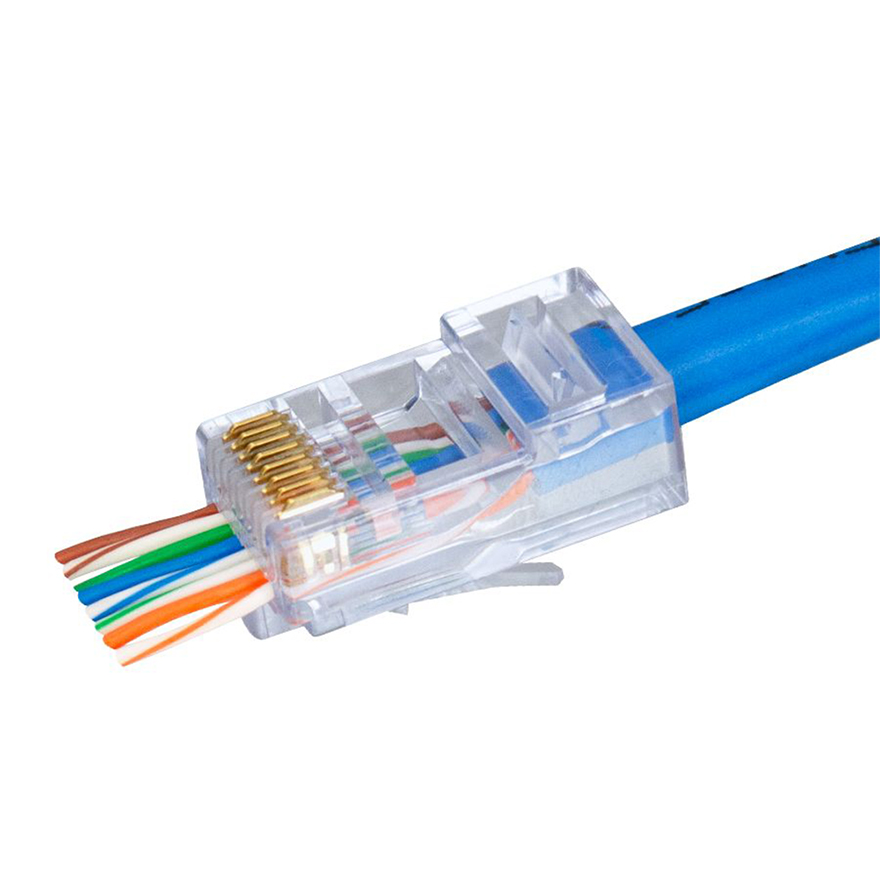

These Cat5e Modular Plugs improve crosstalk performance due to the LAN cable’s ability to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. Commercial rated and UL listed, these plugs are also color-coded for easy identification.

Simply45®

Go Simply Connect offers 20+ years of streamlining the installation process for wire, cable and field terminations. Their unique and innovative designs provide installers with the confidence to achieve the highest performing connectivity solutions for technology used today.

View Sell Sheet

View Information Sheet

Type:	Cat5e
Style:	Pass Through
Wire Alignment:	Straight Insert
Cable Type:	UTP
AWG:	24AWG Solid , 28-26AWG Stranded
Conductor Range:	0.95 – 1.05mm (0.037″ – 0.041″)
Max Cable OD:	6.5mm (0.255″)
Plug Material:	Polycarbonate
Material Rating:	UL94 V0 Commercial (Plenum, LSZH) Rated
Plug Color:	Blue Tint
Contact Design:	3 Prong Style
Contact Material:	Phosphor Bronze
Base Contact Plating:	100µ of nickel plating
Surface Contact Plating:	50µ 24ct Gold
UL & cUL Listing:	E520614
Compliant:	TAA, P65
HDBaseT:	Approved
Quantity:	100
Packaging:	Jar
