GSC1001 - Simply45® S45-1750P Shielded Pass-Through RJ45 Modular Plug with Cap 45 (50 Piece Jar)

Item: GSC1001 | Model: S45-1750P

Brand: Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

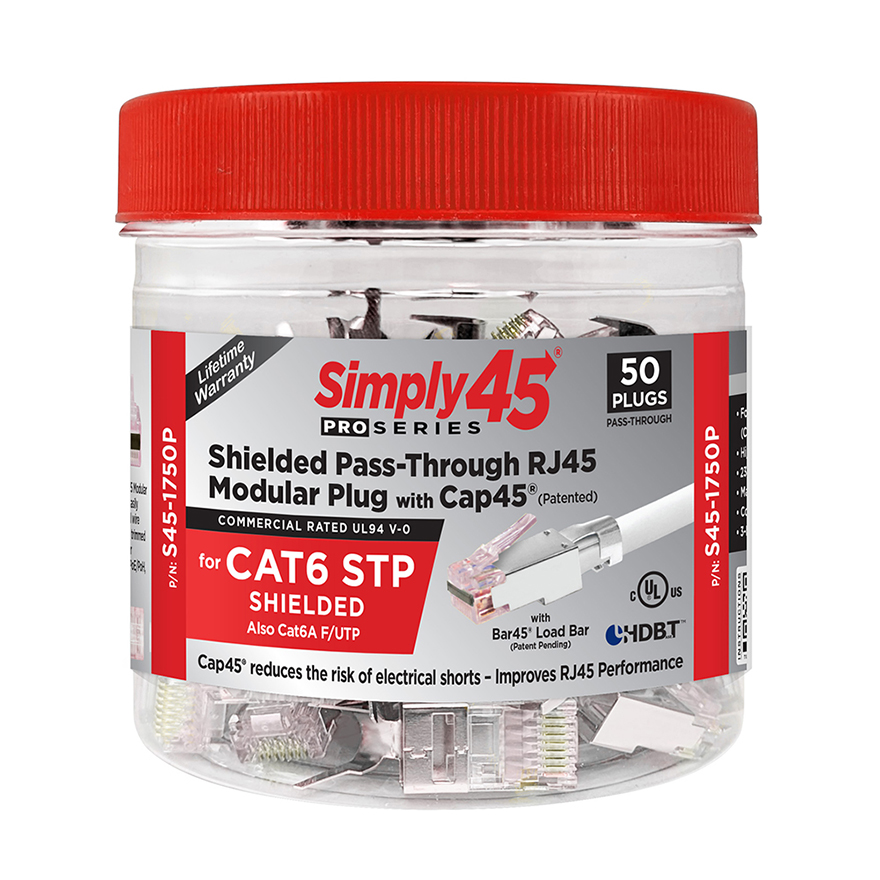

Simply45® S45-1750P Shielded Pass-Through RJ45 Modular Plug with Cap 45 (50 Piece Jar)

Simplify and improve terminated plug performance for shielded Cat6/6a LAN cables! Simply45® Shielded Pass-Through RJ45 Modular Plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate Cat6 Shielded STP and Cat6a F/UTP LAN cables. They work in all compliant RJ45 modular plug sockets and support performance standards: ANSI/TIA 568.2-D and ISO/IEC 11801.

Features

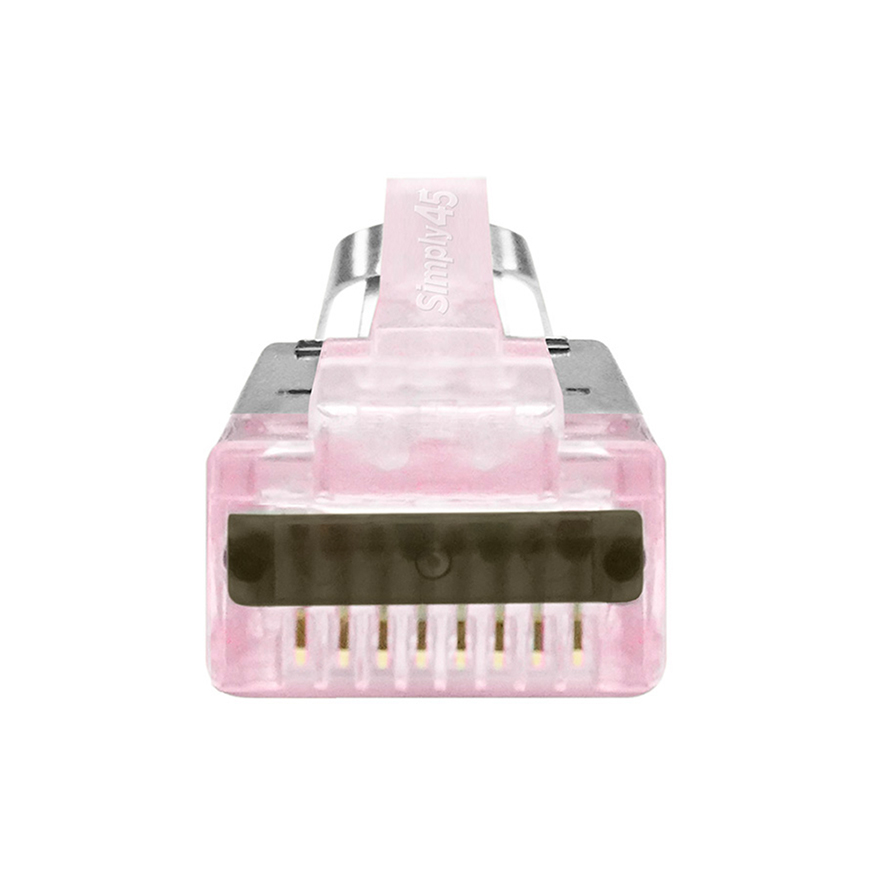

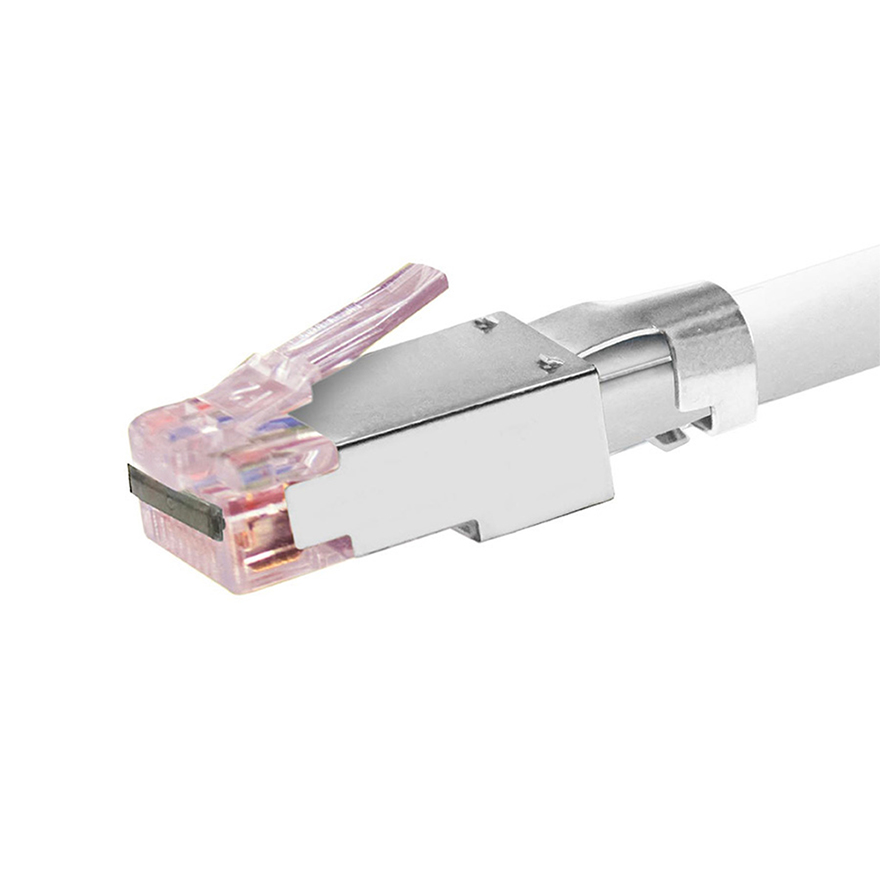

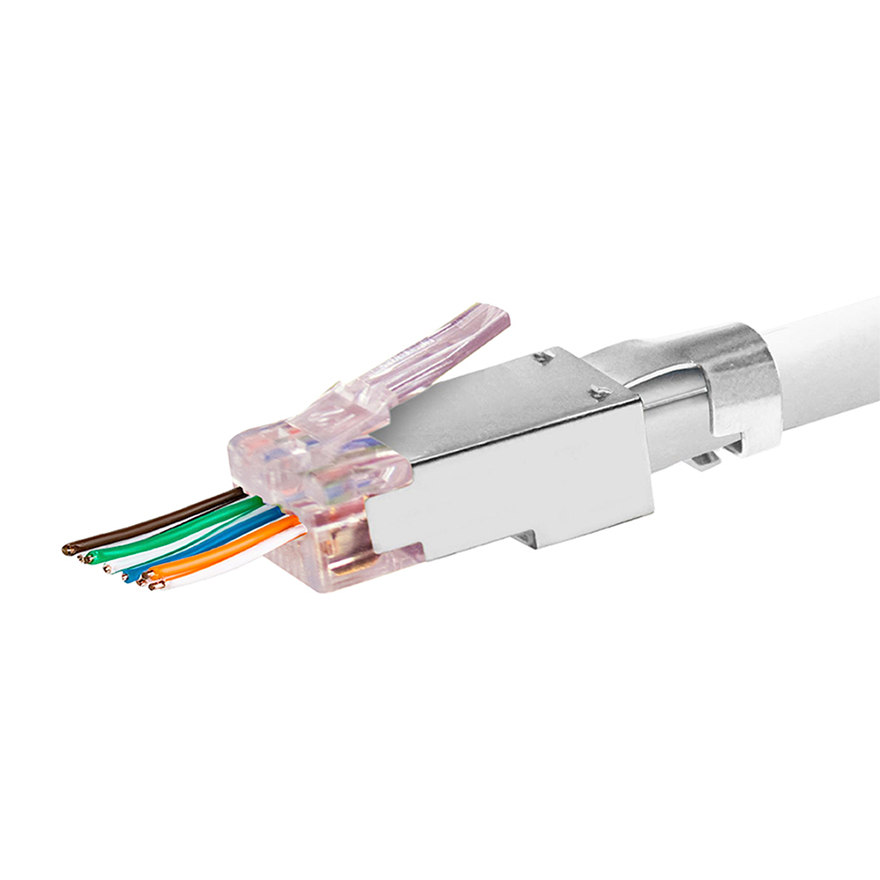

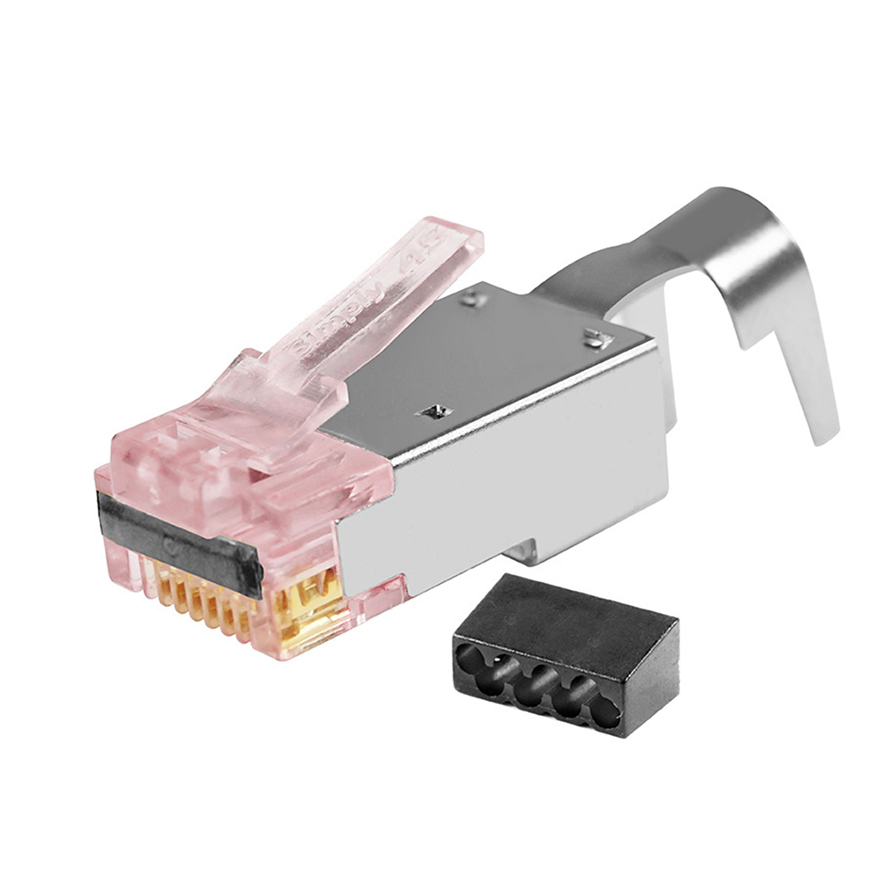

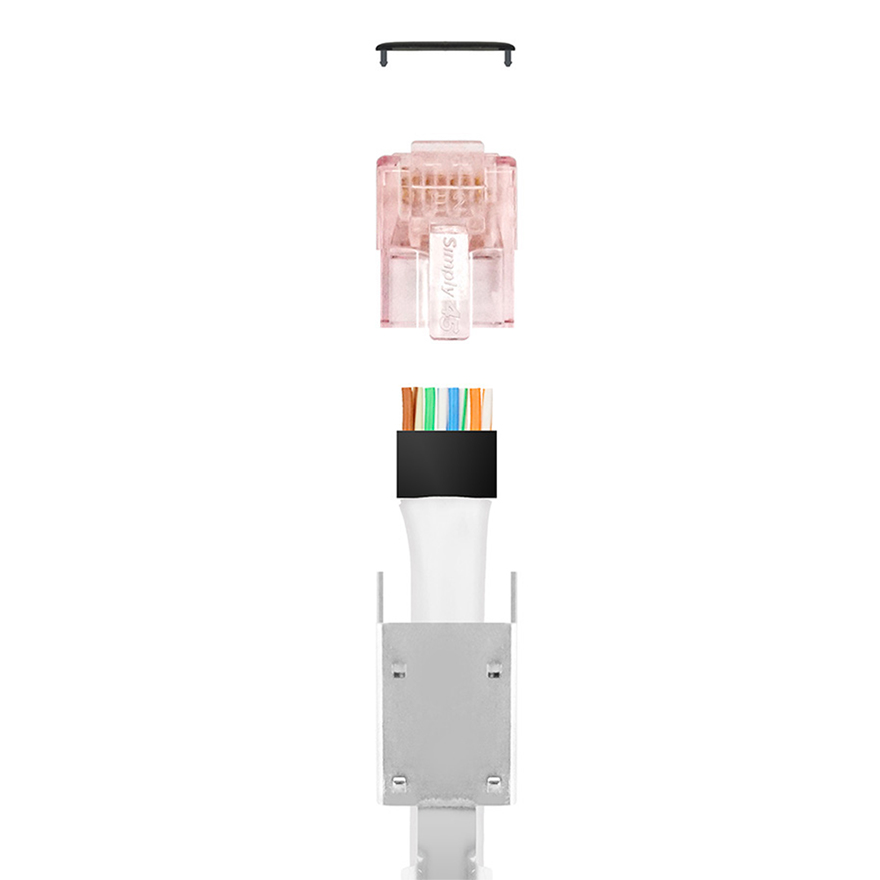

These Plugs boast a two-piece plug that separates the metal shell shield from the RJ45 body to allow the large diameter 10G LAN cables to be inserted further into the plug. Add in the high/low staggered wire insert, 3-prong pin design with 50µ of 24ct gold plating, improved crosstalk performance, and more and they’re a must-have.

Simply45®

Simply45 offers 20+ years of streamlining the installation process for wire, cable and field terminations. Their unique and innovative designs provide installers with the confidence to achieve the highest performing connectivity solutions for technology used today.

There are no support documents available for this product at this time.

Wire Alignment:	Hi/Lo Stagger Load Bar
Cable Type:	STP
AWG:	23AWG Solid
Conductor Range:	1.10mm - 1.20mm (0.043″-0.047")
Max Cable OD:	8.0mm (0.315″)
Plug Material:	Polycarbonate
Material Rating:	UL94 V0 Commercial (Plenum, LSZH) Rated
Plug Color:	Red Tint
Style:	3-Prong
Contact Material:	Phosphor Bronze
Base Contact Plating:	100µ of nickel plating
Surface Contact Plating:	50µ 24ct Gold
UL & cUL Listed:	E520614
Compliant:	TAA, P65
HDBaseT:	Approved
Quantity:	50
