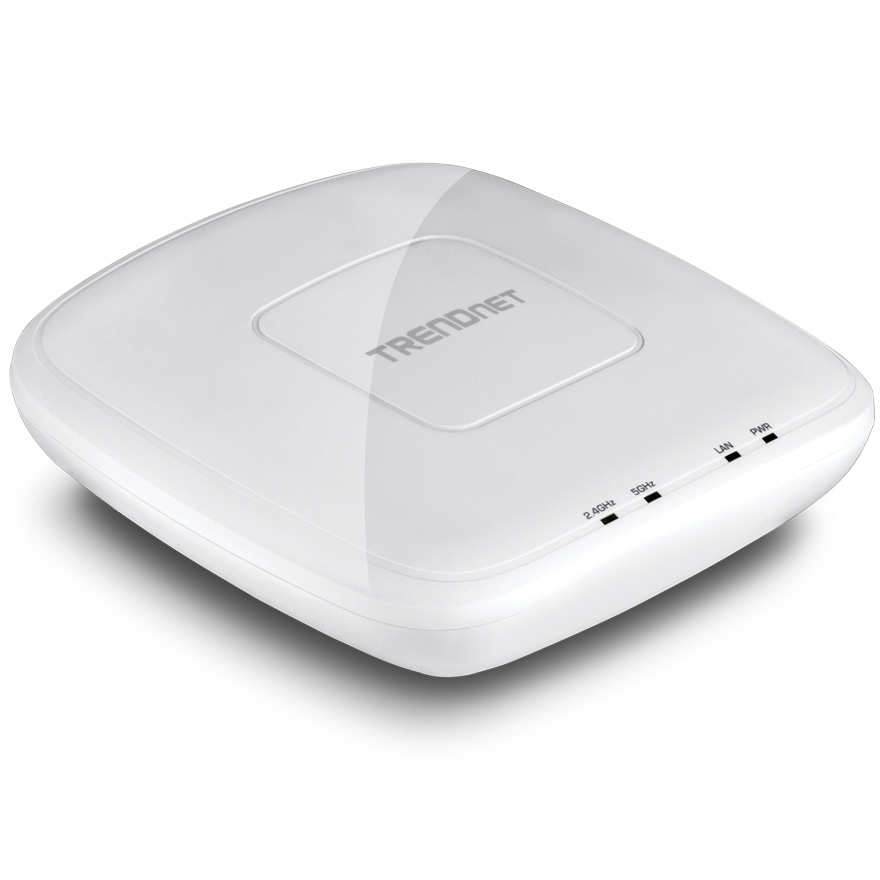

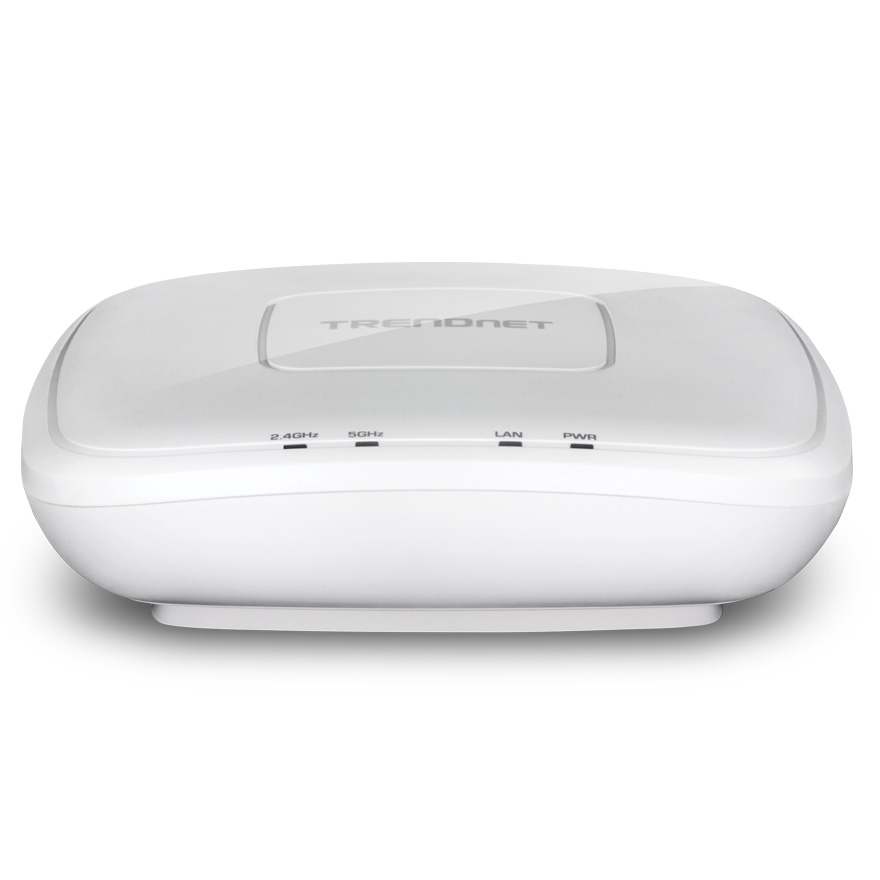

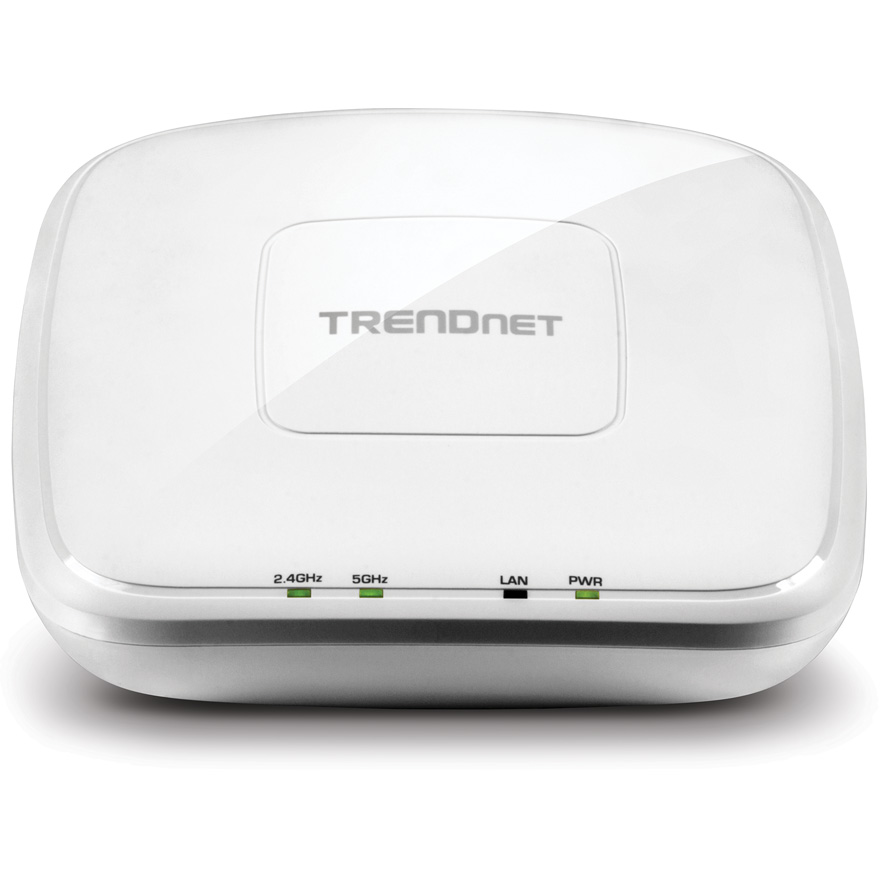

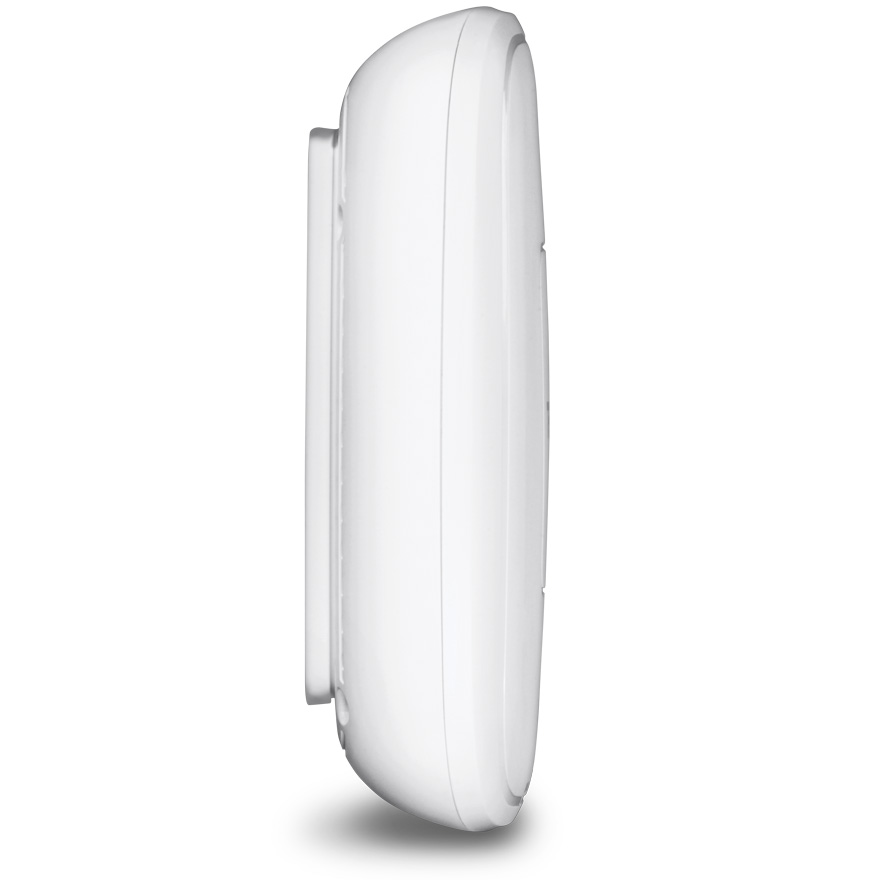

TRENDnet TEW-825DAP AC1750 Dual-Band PoE+ Access Point

Equip your business with eth TRENDnet TEW-825DAP. This Dual-Band PoE Access Point broadcasts concurrent 1300 Mbps of Wi-Fi AC and 450 Mbps of Wi-Fi N networks. It relieves congestion and overcrowding with band steer technology. Made with a low-profile design it will blend into most any environment.

Features

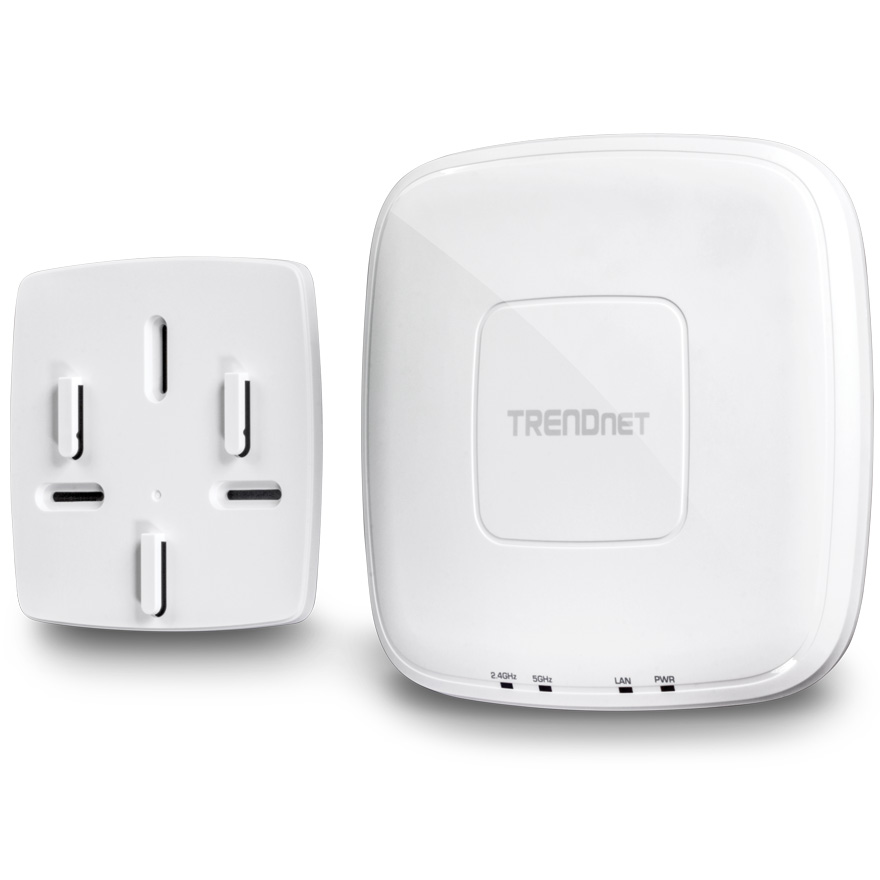

Installation is a breeze. Just power the access point with the included AC adapter or via PoE+. It also includes a convenient ceiling / wall mounting plate. Led Control, Wi-Fi traffic shaping, multiple SSIDs, Multiple modes, and wireless coverage are all included in this Access Point’s awesome abilities.

TRENDnet

Founded in Torrance, California, TRENDnet has grown to become a leading global networking hardware brand. From the network core to the periphery, TRENDnet's expansive product portfolio includes Wireless, Wired, Surveillance, Connectivity, and Peripheral device categories. An emphasis on continual improvement and our ISO9001:2015 quality management certification is an essential component of TRENDnet’s success. The TRENDnet brand is consistently recognized for exceptional quality, superior performance, and responsive support.

View User Manual

View Sell Sheet

View Information Sheet

Standards:	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (up to 450 Mbps), IEEE 802.11ac (up to 1300 Mbps)

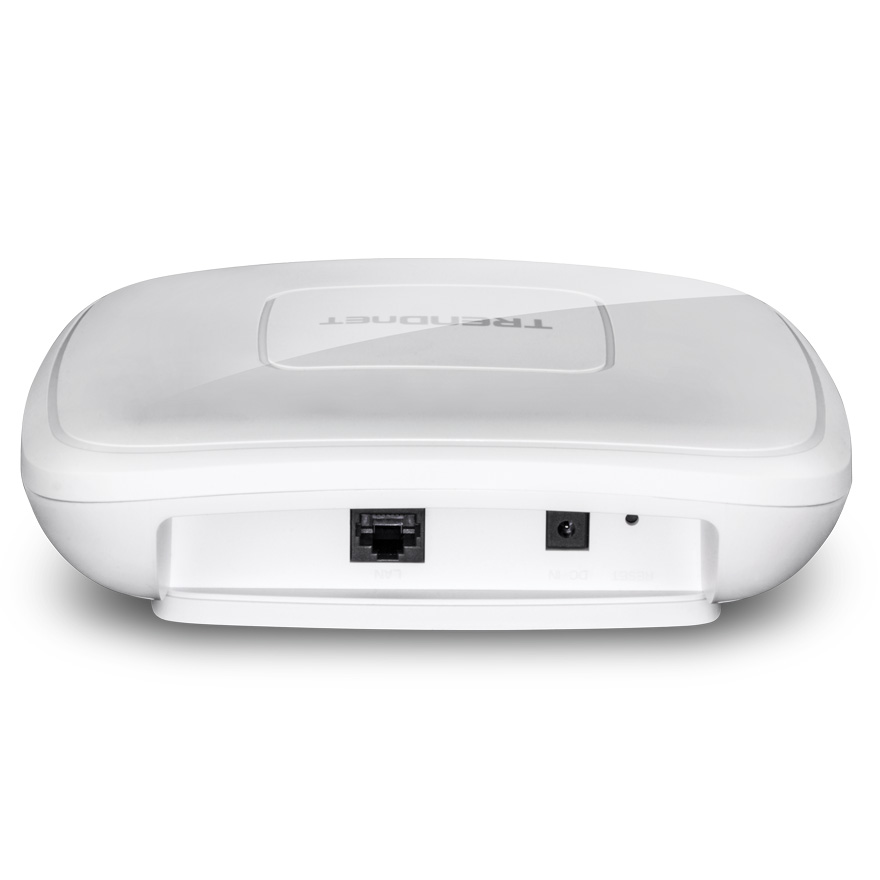

Hardware Interface	1 x PoE+ Gigabit LAN port, Power port (optional non-PoE installation), Reset button, LED indicators, Mounting plate
Special Features:	IP30 rated housing (with mounting plate installed), Concurrent Dual band, Band Steering, WiFi traffic shaping, 802.1Q VLAN assignment per SSID, IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC / DHCPv6), Multi-Language interface, English, French, Spanish, German, Russian, LEDs on / off, Captive Portal (Coovachilli)
Operation Modes:	Access Point, Client, WDS AP, WDS Bridge, WDS Station, Repeater, Web based management, Software Utility, SNMP v1 / v3, STP, Event logging, Ping test, Traceroute, CLI
Utility OS Compatibility::	Windows® 10, 8.1, 8, 7, Vista, XP
Access Control:	Windows® 10, 8.1, 8, 7, Vista, XP
Access Control:	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS / MAC filter / Maximum client limit
QoS:	WMM, Traffic shaping per SSID
SSID:	Up to 8 SSIDs per wireless band (16 total)
Frequency:	2.4 GHz: 2.412 – 2.472 GHz, 5 GHz: 5.180 – 5.8525 GHz
Wireless Channels:	2.4 GHz: FCC: 1 – 11, ETSI: 1 – 13 / 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)**
Modulation:	DBPSK/DQPSK/CCK for DSSS technique, BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain:	2.4 GHz: 3 x 4 dBi, 5 GHz: 3 x 4 dBi, 802.11a: FCC: 23 dBm, ETSI: 21 dBm (Max.) / -65 dBm (typical) @ 54 Mbps, 802.11b: FCC: 22 dBm (Max.), CE: 8 dBm (Max) / -83 dBm (typical) @ 11 Mbps, 802.11g: 17 dBm (Max.), CE: 10 dBm (Max.) / -65 dBm (typical) @ 54 Mbps, 802.11n: FCC: 17 dBm (Max.), CE: 11 dBm (Max.) / -61 dBm (typical) @ 450 Mbps 2.4 GHz, 802.11n: FCC: 23 dBm, CE: 21 dBm (Max.) / -61 dBm (typical) @ 450 Mbps 5 GHz, 802.11ac: FCC: 23 dBm, CE: 21 dBm (Max.) / -54 dBm (typical) @ 1300 Mbps
Power:	100 – 240 V AC, 50 - 60 Hz / Output: 12 V DC, 1.5 A external power adapter (non-PoE installation), Consumption: 12.5 Watts (max.)
Operating Temperature:	0 – 40 °C (32 – 104 °F)
Operating Humidity:	Max. 95 % non-condensing
Certifications:	CE, FCC
Dimensions:	187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)
Weight:	416 g (14.7 oz.)
Warranty:	3 year limited
Package Contents:	TEW-825DAP, 1 x Network cable (1.5 m / 5 ft.), CD-ROM (Utility and User’s Guide), Quick Installation Guide, Power adapter (12V DC, 1.5 A), Mounting plate
