VER1604 - Vertical Cable® 060-494/YL Cat6 550MHz 8 Conductor Cable (1000ft Box | Yellow)
Item: VER1604 | Model: 161-110YL

Brand: Vertical Cable    Last Ordered:

  • Shipping & Handling Fees Apply
  • Same Day Shipping


Questions Email
Call Today
Call Today (800) 844-9555

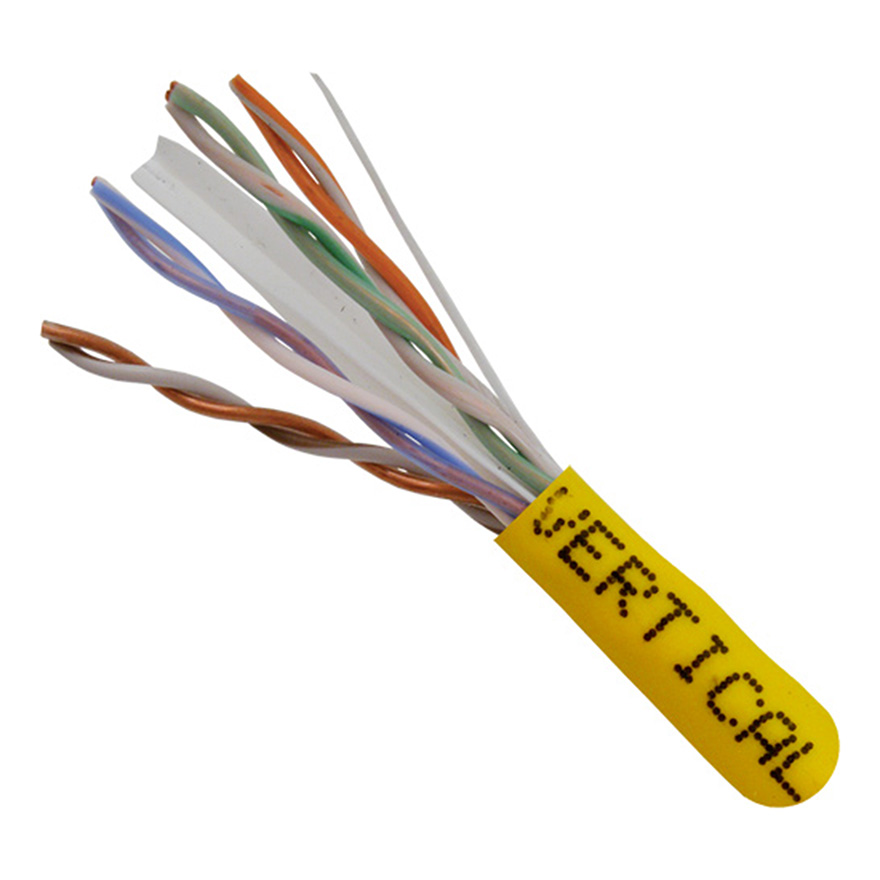

Vertical Cable® 060-494/YL Cat6 550MHz 8 Conductor Cable (1000ft Box | Yellow)

Deliver power with ease! The Vertical Cable 060-494/YL Cat6 550MHz 8 Conductor Cable is up for just about anything. From audio, video, or any type of data transfers, this Cable is up to the task.

Complete Clarity

Guaranteed to last, this cable is designed to ensure signal integrity. It is specifically designed to provide unrivaled audio and video clarity.

Effortless Install

The Vertical Cable 060-494/YL has an easily-strippable jacket and sequential distance offering you an effortless install.

There are no support documents available for this product at this time.
Technical Data
Rated Temperature 70ºC
Rated Voltage 60v
Product Standard Certification CMR
NVP 69%
Conductor Solid Bare Copper
Size 23AWG
Insulation PE
Average Thickness 0.22 mm
Min. Point Thickness 0.19 mm
Insulation Diameter (±0.05mm) 1.01
Twisted Pair Diameter (±0.01) 2.02
Average Jacket Thickness 0.60 mm
Min. Point Thickness 0.50 mm
Outer Diameter (±0.10 mm) 6.20 mm
Rip Cord Yes
Color of Pairs
Pair1 Blue, White-Blue
Pair 2 Orange, White-Orange
Pair 3 Green, White-Green
Pair 4 Brown, White-Brown
Mechanical Properties
Test Object Jacket
Test Material PVC
Before Tensile Strength (Mps) ≥13.8
Aging Elongation (%) ≥100
Aging Condition (ºCxhrs) 100x168
After / Tensile Strength ≥85% of unaged
Aging / Elongation ≥50% of unaged
Cold Bend (-20±2º Cx4hrs) No Crack
