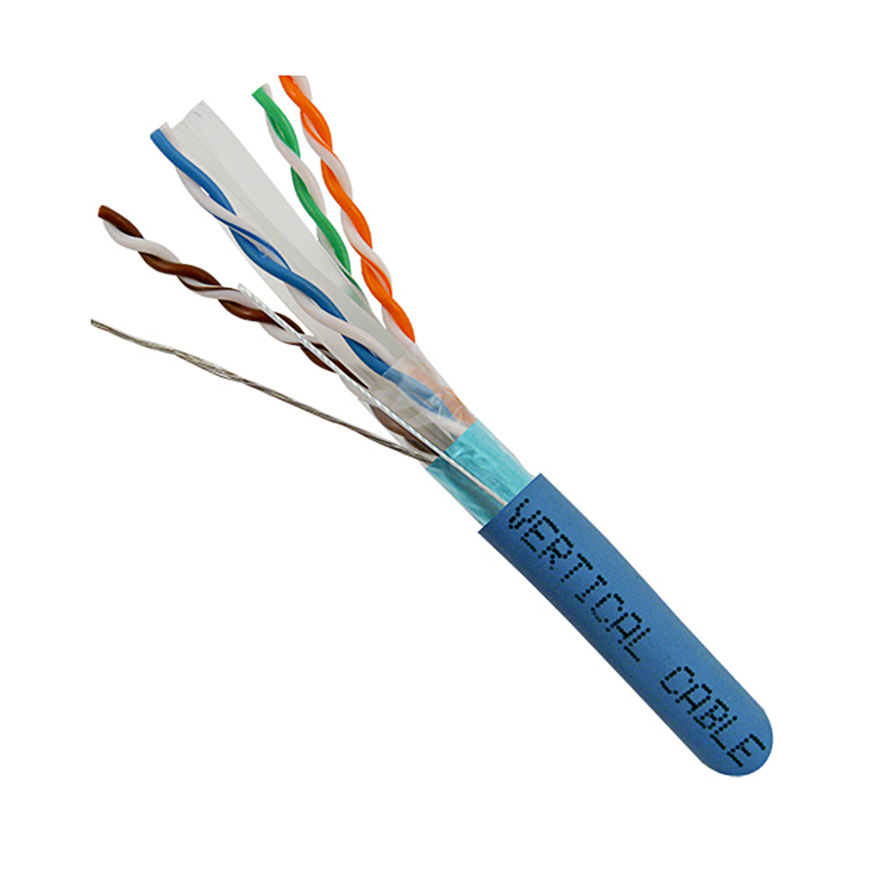

Vertical Cable 062-504/S/BL Cat6 Shielded 550MHz 23AWG Solid Bare Copper Conductor Cable (1000ft Spool | Blue)

Deliver power with ease! The Vertical Cable 062-504/S/BL Cat6 Shielded 550MHz 23AWG Solid Bare Copper Conductor Cable delivers high performance. Easily Identified Color-Striped Pairs and 550MHz Bandwidth for Data Application make for fast Ethernet and 155 Mbps TP-PMD/CDDI.

Complete Quality

ETL listed, and RoHS compliant, this cable is sound. It exceeds EIA/TIA 586-C.2, ISO/IEC-11801 and is Riser Rated.

Effortless Install

The Vertical Cable has an easily-strippable jacket and comes in a convenient 1000-foot spool.

Rated Temperature	75ºC
Rated Voltage	30V
Product Standard Certification	CMR
NVP	70%

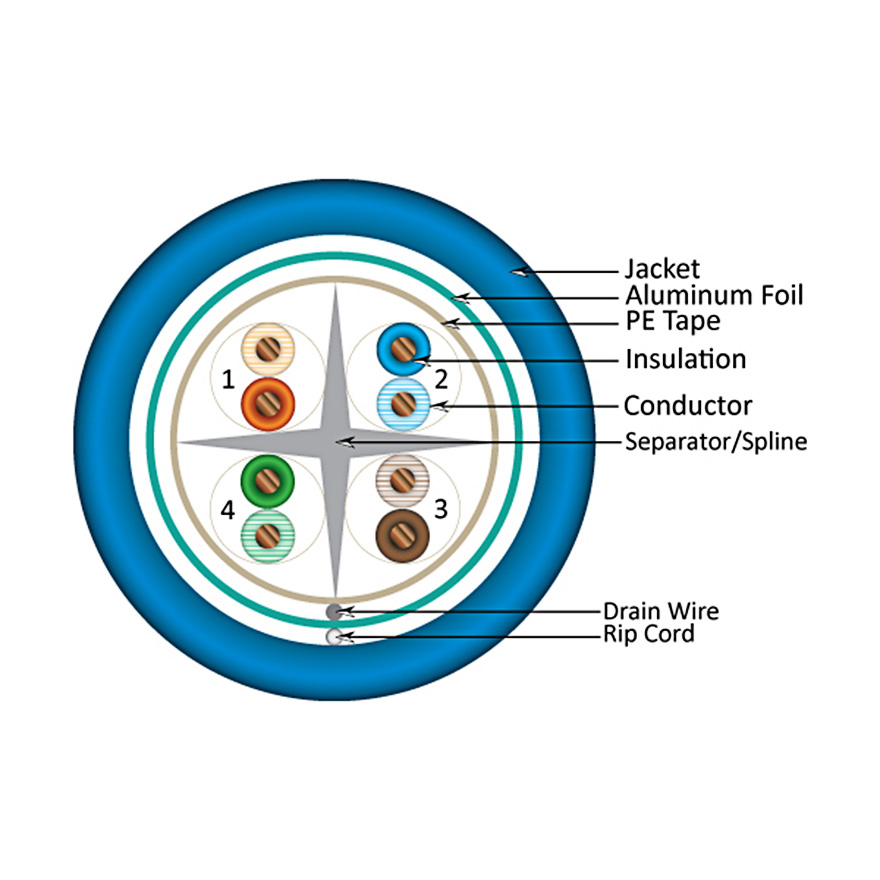

Conductor	Solid Bare Copper
Size	23 AWG
Insulation	HDPE
Average Thickness	0.29 mm
Insulation Diameter	1.15 ± 0.0005mm
Filler	LDPE
Bond	PE Tape
Shield	AL-Foil
Drain Wire (TC)	0.5
Jacket	PVC
Average Thickness	0.64 mm
Outer Diameter	7.6 ± 0.10 mm
Rip Cord	Yes
Color of Pairs
Pair 1	Blue, White-Blue
Pair 2	Orange, White-Orange
Pair 3	Green, White Green
Pair 4	Brown, White-Brown
Mechanical Characteristics
Test Object	Jacket
Test Material	PVC
Before Tensile Strength	≥10.34 Mpa
Aging Elongation	≥100%
Aging Condition	100 x 168ºCxhrs
After Tensile Strength	≥7.21 (Mpa)
Aging Elongation	≥45%
Cold bend	No Crack -20±2º Cx4hrs
Marking on Jacket	Vertical 4001453 c(ETL) VERIFIED CMR FT4 STP SHIELDED 4PR 23 AWG CAT6 550MHz TIA/EIA-568C.2 ISO/IEC 11801:2002 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
