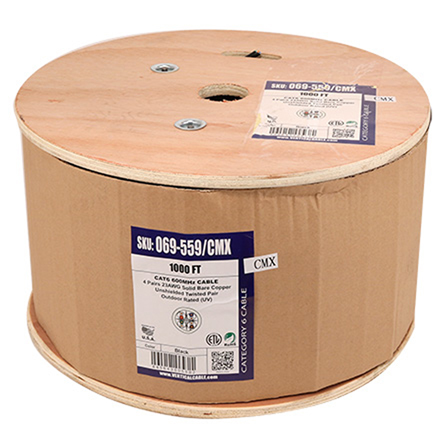

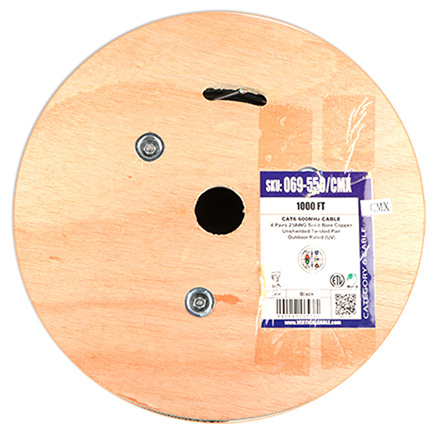

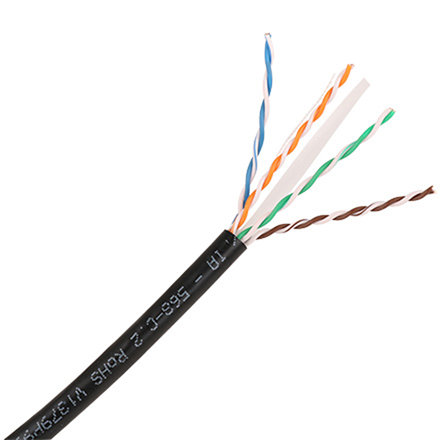

Vertical Cable 069-559/CMX Outdoor UV Rated Cat6 Category Cable, 23AWG (1,000 ft. Spool / Black)

High-speed needs deserve high speed performance! Get the Vertical Cable 069-559/CMX to handle just about anything under the sun. Audio, video, or any type of data transfer will be delivered with the weatherproof security of this Cat6 Category Cable.

Weatherproof

Vertical Cable’s 069-559/CMX is constructed with a protective Double Jacket layer. This cable is not only stormproof, but also UV resistant to withstand any type of harsh environment.

Effortless Install

The Vertical Cable 069-559/CMX has an easily-strippable jacket and sequential distance offering you an effortless install.

Rated Temperature:	-40°~75° C
Rated Voltage:	30V
Flammability Test:	IEC-332-1
Conductor:	Solid Bare Copper
Size:	23 Awg
Insulation:	PE
Assembly Diameter:	5.00
Jacket:	LLDPE(UV)
Outside Diameter (+/-0.01mm:	6.20
Rip Cord:	Yes
Color:	Black
Color of Pairs:
Pair 1:	Blue, White-Blue
Pair 2:	Orange, White-Orange
Pair 3:	Green, White-Green
Pair 4:	Brown, White-Brown
Test Object:	Jacket
Test Material:	LLDPE
Before:	Tensile Strength (mpa) ≥13.8
Aging:	Elongation (%) ≥100
Aging Condition:	(ºCxhrs) 100 x 168
After:	Tensile Strength (Mpa) ≥85% of unaged
Aging:	Elongation (%) ≥50% of unaged
Cold Bend (-40+2º Cx4hrs):	No Crack
Marking on Jacket:	VERTICAL 4001453 cETlusVERIFIED CMX UTP 4PR 23AWG OUTDOOR UV CAT5 600MHz TIA/EIA-568C.2 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
