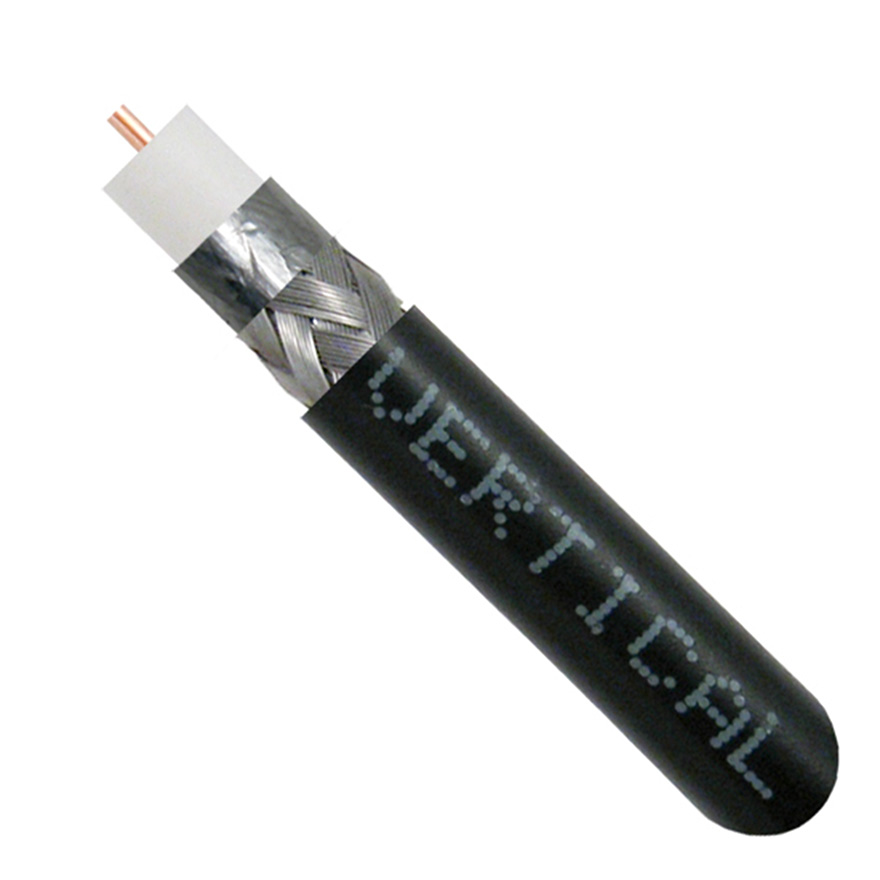

Vertical Cable® 107-1032BK/R11 RG-11 Standard Shield Coaxial Cable, 14AWG Solid (Black | 1,000ft Spool)

Some installations call for big cables. This RG-11 Standard Shield Coax from Vertical Cable can handle these jobs; it features a 14AWG solid conductor, and is wrapped in a PVC jacket. As far as performance goes: it boasts 75 Ohm impedance, and is sweep tested to 3GHz to ensure high quality signals over the longest distances. What’s more, it’s CL2 and CM rated, and ETL and RoHS compliant!

Tough for Long Runs

Vertical Cable’s RG-11 Coax cable is thick and durable – up to just about any abuse. It’s ideal for utilization in long-distance cable runs.

Wooden Spool

This thousand-foot length of cable is wrapped around a sturdy wooden spool – simple, strong, and secure.

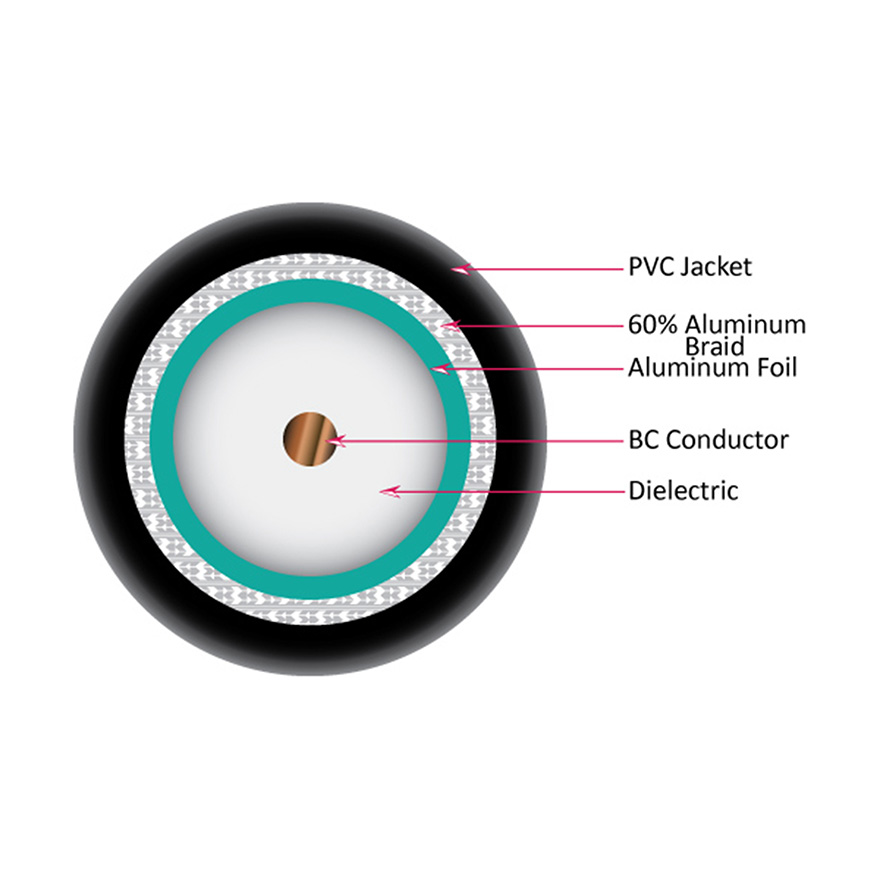

Construction:	Conductor Copper Clad Steel (CCS) Size: 1.63±0.01mm (14AWG) Dielectric: Foam PE Size: 7.11±0.05mm Shield: Bonded Aluminum Foil Braid: Alu-Mag Coverage; 60%x16x6x0.16±0.005mm Jacket: PVC Size: 10.03±0.2mm
Electrical Characteristics:	Sparker Test: 4000VAC Impedance: 75±3 Ohm Capacitance: 54±3pF/m Velocity of Propagation: 85% Return Loss: 23dB min (5-2300MHz)
Mechanical Characteristics:	Operating Temperature Range: -20°C to 70°C
Features:	75 Ohm Impedance Sweep Tested to 3GHz TEL, RoHS Compliant 1,000ft Wooden Spool
Jacket Color:	Black
