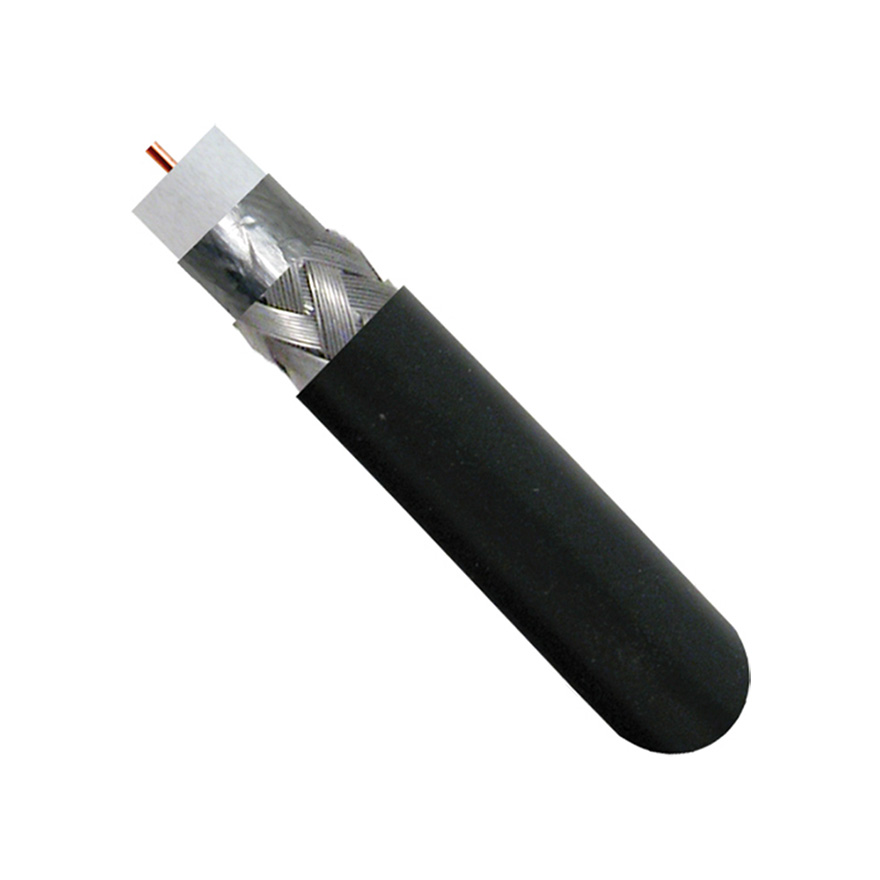

Vertical Cable 107-1234BK6S1BX RG6 Standard Shield 18 AWG CCS Center Conductor Coax Cable Pull Box (1,000' / Black)

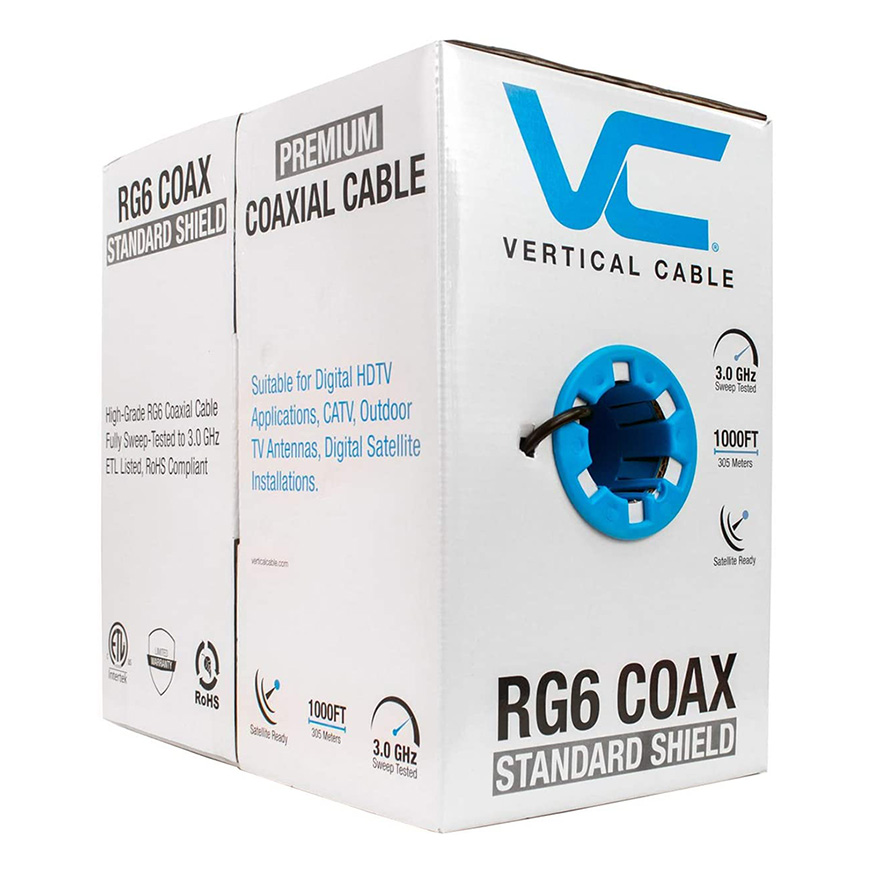

Make the right connection! The Vertical Cable RG6 Standard Shield Power Cable is ETL, RoHS compliant, fully sweep tested to 3000MHz, and made of 18AWG solid copper-clad steel. Conveniently delivered in a 1,000 foot pull box, there’s plenty to go round.

Features

This cable is designed with a PVC, CM/CL2 Rated Jacket. It is suitable for digital HDTV applications, CATV, and digital satellite installations.

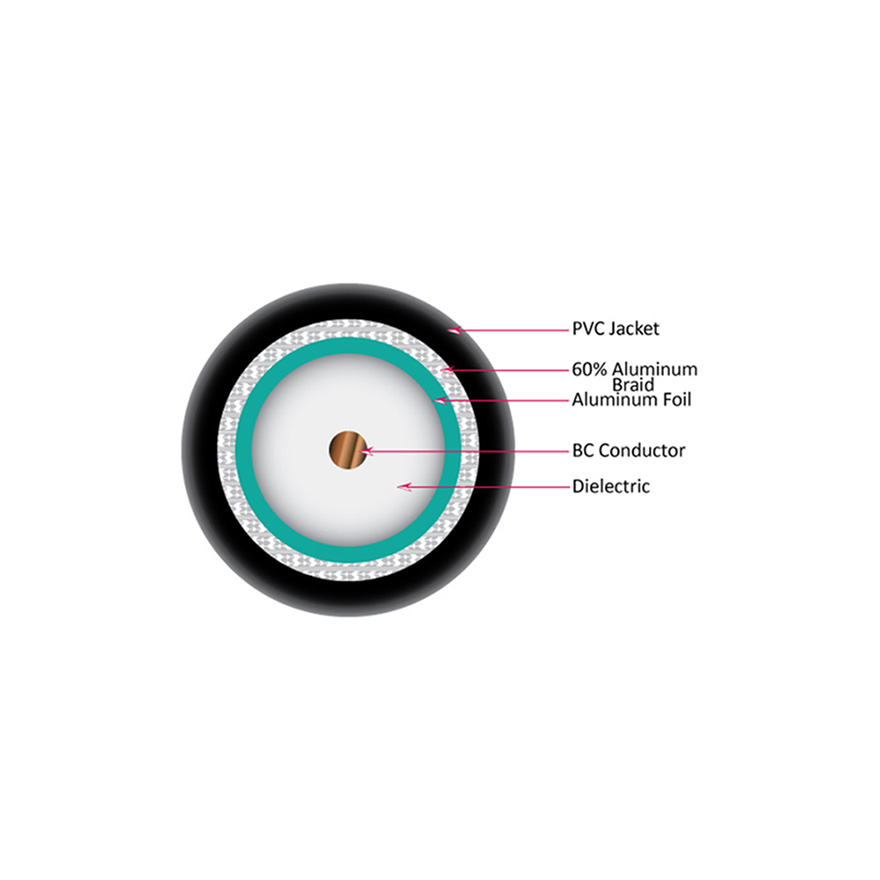

Conductor Material:	Copper Clad Steel (Solid)
Size:	18 AWG
Construction:	φ1.024±0.10 mm
Insulation Material:	Foamed PE
Diameter:	φ4.57±0.10mm
Min. Thickness:	1.52mm
Color:	White
First Shield Outer Conductor Material:	Aluminum/PET-Foil Bonded
Second Shield Outer Conductor Material:	Aluminum Wire
Size:	0.16mm
Construction:	0.16 x 4 x 16mm, 60% Coverage
Jacket Material:	PVC
Diameter:	6.9±0.15mm
Min. Thickness:	0.62mm
Jacket Color:	Black
Electrical Specifications:	(20°C)
Conductor DC Resistance:	≤120Ω/km
Nominal Capacitance:	52±2pF/m
Impedance:	75±3 Ohms
Jacket Print:	c(ETL)us 4009326 CM RG6 18AWG 60% 3.0GHz CMG FT4, CATV/CL2 RoHS XXXXFT
