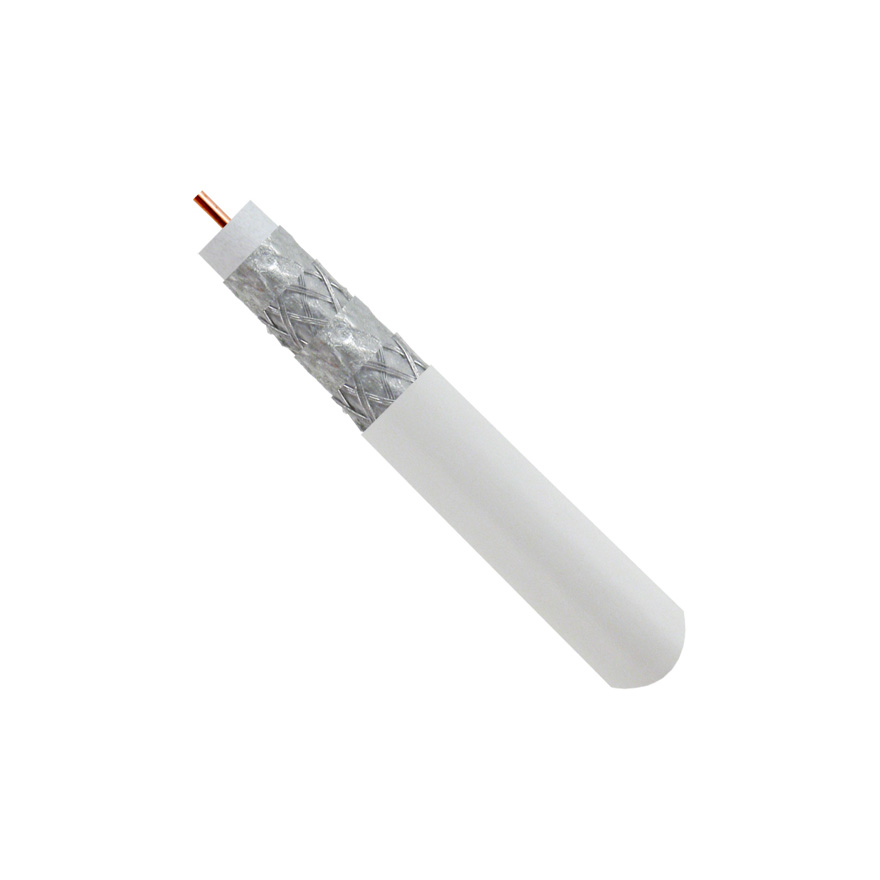

Vertical Cable 107-1953WH6Q1BX RG-6 75 OMH 18AWG Quad Coax (White / 1000 ft Pull Box)

Provide both versatility and the best quality with the Vertical Cable 107-1953WH6Q1BX.Made with Copper Clad Steel, this RG-6 75 OMH 18AWG Quad Coax offers durability AND signal integrity that lasts!

Pull Box

Installs are quicker than ever. This speaker cable comes in a convenient pull box so you can keep things organized without any hassle.

Effortless Installs

Get in and get out in no time. Specifically crafted with easily-strippable jackets, this Vertical Cable makes installs effortless.

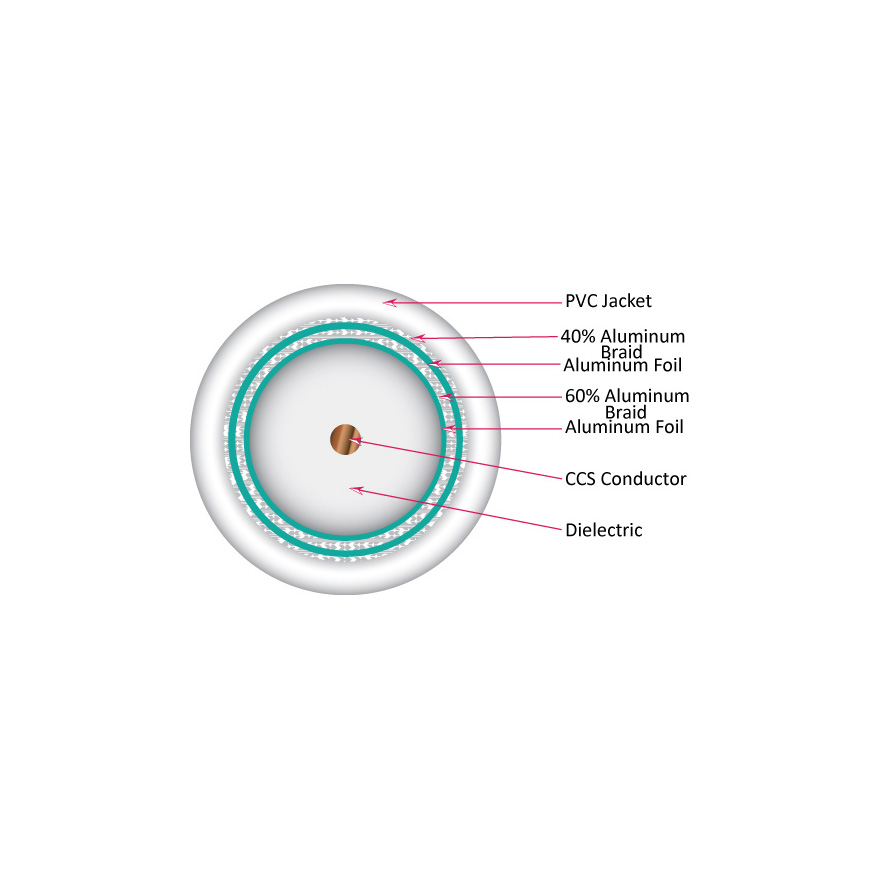

Conductor

Conductor Material:	Copper Clad Steel (Solid)
Size:	18 AWG
Construction:	1.02±0.01 mm

Insulation

Material:	Foamed PE
Diameter:	4.57±0.01mm
Color:	White

First Sheila

Material:

Aluminum Foil Bonded

Second Shield

Material:	Aluminum Alloy Braid
Construction:	5x16x0.12mm 60%

Third Shield

Material:

Aluminum Foil

Fourth Shield

Material:	Aluminum Alloy Braid
Construction:	3x16x0.12mm 40%

Jacket

Material:	PVC
Diameter:	7.54±0.20mm

Electrical Specifications

Spark Test:	3000VAC
Impedance:	75±3 Ohms
Capacitance:	54±3.0 pF/m
Velocity of Propagation:	≥82%
SRL:	5-1000MHz ≥25dB / 1001-3000MHz ≥20dB

Mechanical Specifications

Operating Temperature:	-30°C ~ 75°C
Bending Radius:	65mm

Jacket Print

c(ETL)us:	4009326 CM RG6 QUAD 18AWG 3.0GHz CMG FT4
CATV/CL2:	RoHS XXXFT
