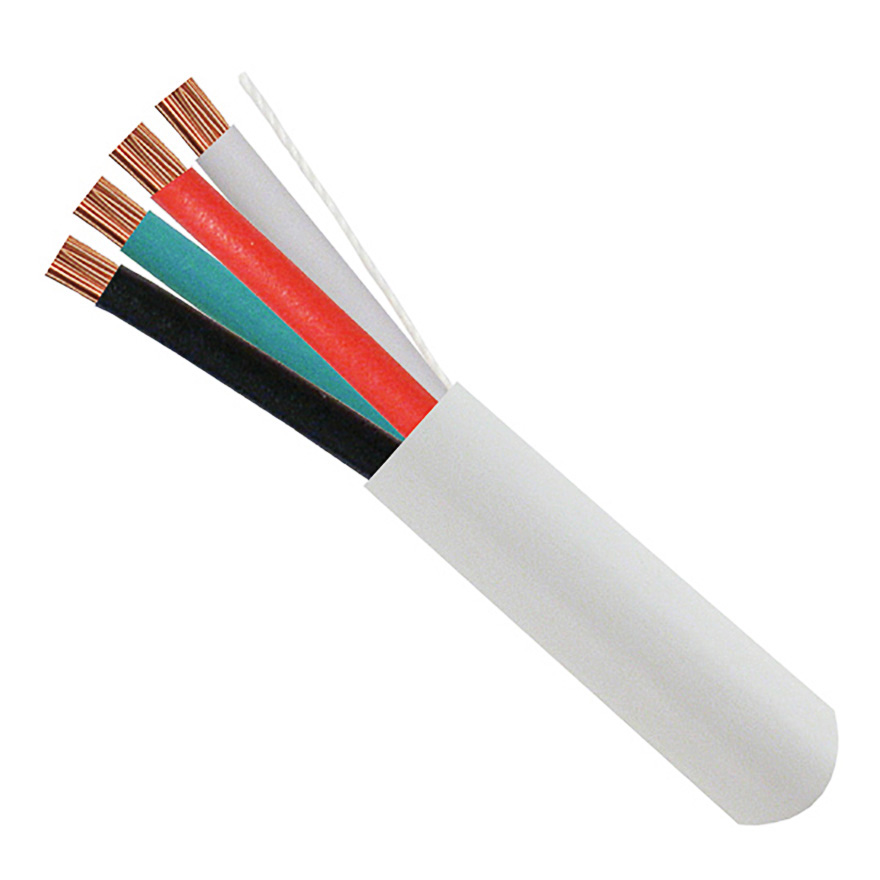

Vertical Cable 209-2321 4-Conductor 14G CL3 Rated Wire Speaker Cable (White / 500 ft Pull Box)

Deliver a wide range of sound frequencies with the Vertical Cable 209-2321. With this 4 Conductor 14G CL3 Rated Wire Speaker Cable, connect intercoms, sounds systems, and more! High-quality, professional grade sound never came through so well.

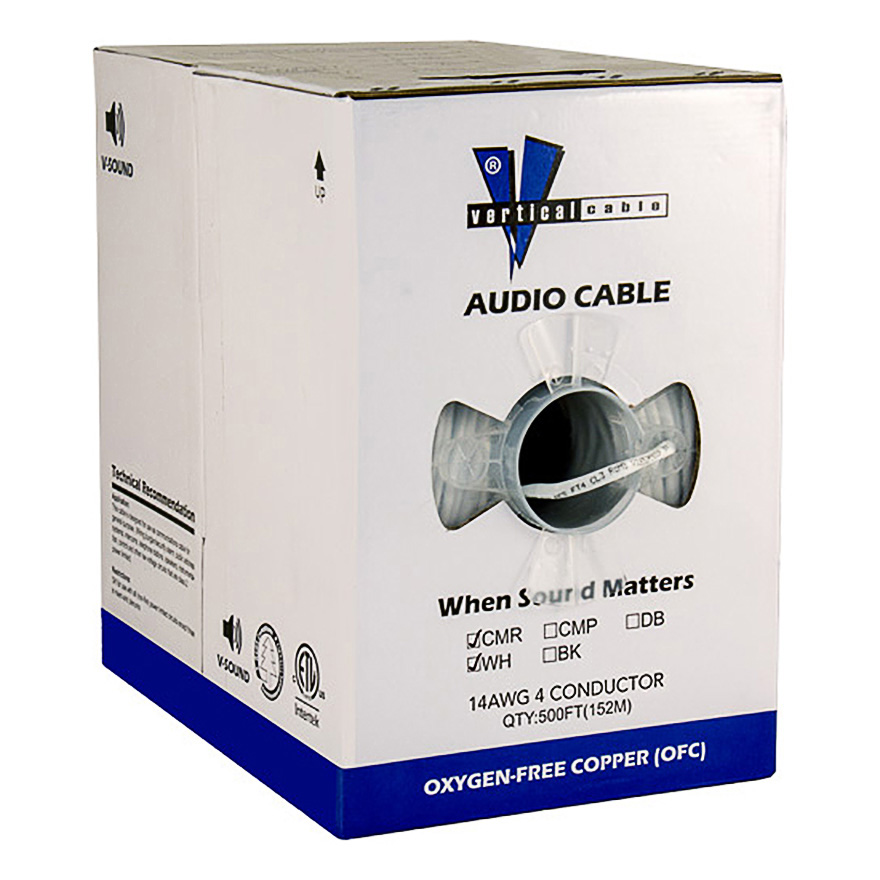

Pull Box

Installs are quicker than ever. This speaker cable comes in a convenient pull box so you can keep things organized without any hassle.

Effortless Installs

Get in and get out in no time. Specifically crafted with easily-strippable jackets, the Vertical Cable 209-2321 makes installs effortless.

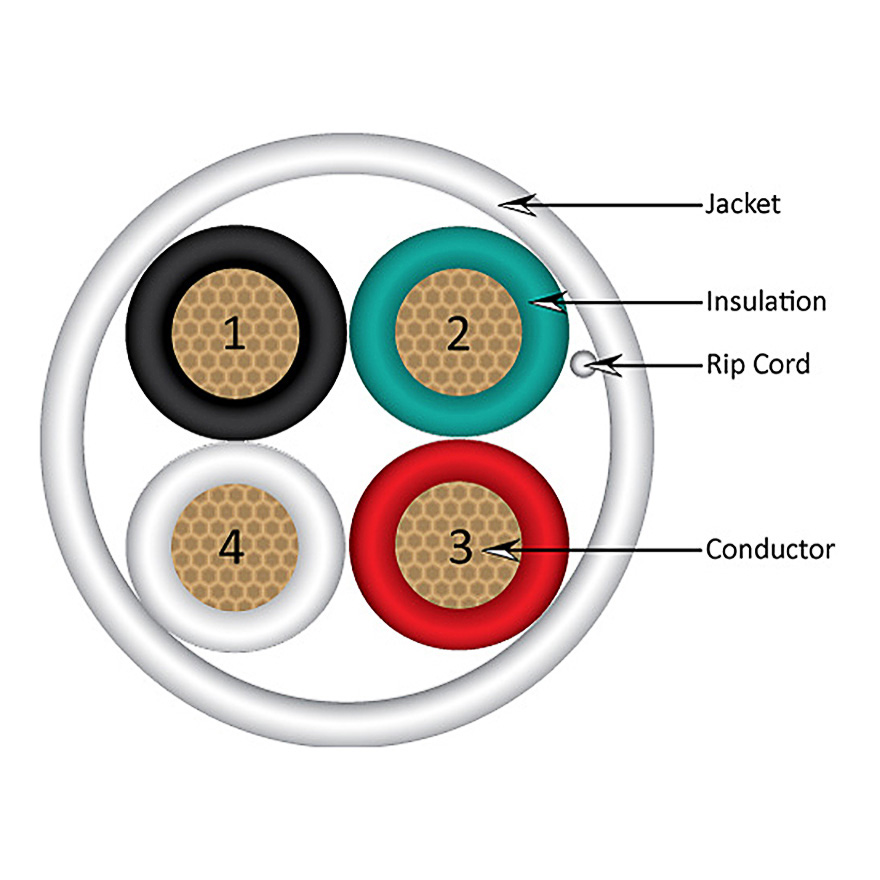

Conductor	4 Core (Standard BC)
Material	Oxygen Free Copper Wire Strands
Size	14AWG
Stranding	41 Strand
Strand Diameter	0.254 mm
Material	PVC
Average Thickness (mm)	0.36
Min. Point Thickness (mm)	0.33
Insulation Diameter (±0.1 mm)	2.60
Color	White
Average Jacket Thickness (mm)	0.80
Min Point Jacket Thickness (mm)	0.72
Outer Diameter (±0.1 mm)	8.00
Insulation Color	Black, Red, Green, White
Material	Nylon
Rated Temperature	75
Voltage Rating	300V
Reference Standard	ETL, CMR, CL3
Test Object	Jacket
Test Material	PVC
Before Tensile Strength (Mpa)	≥13.8
Aging Elongation (%)	≥100 (ºCxhrs)
Aging Condition	100 x 168
After Tensile Strength(Mpa)	≥85% of unaged
Aging Elongation (%)	≥50% of unaged
Cold Bend (-20±2º Cx4hrs)	No Crack
