VER1563 - Vertical Cable® 209-2321/DB 4 Conductor Direct Burial 14AWG Speaker Cable, UV Rated, Stranded (Black | 500 ft. Pull Box)

Item: VER1563 | Model: 209-2321/DB

Brand: Vertical Cable Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

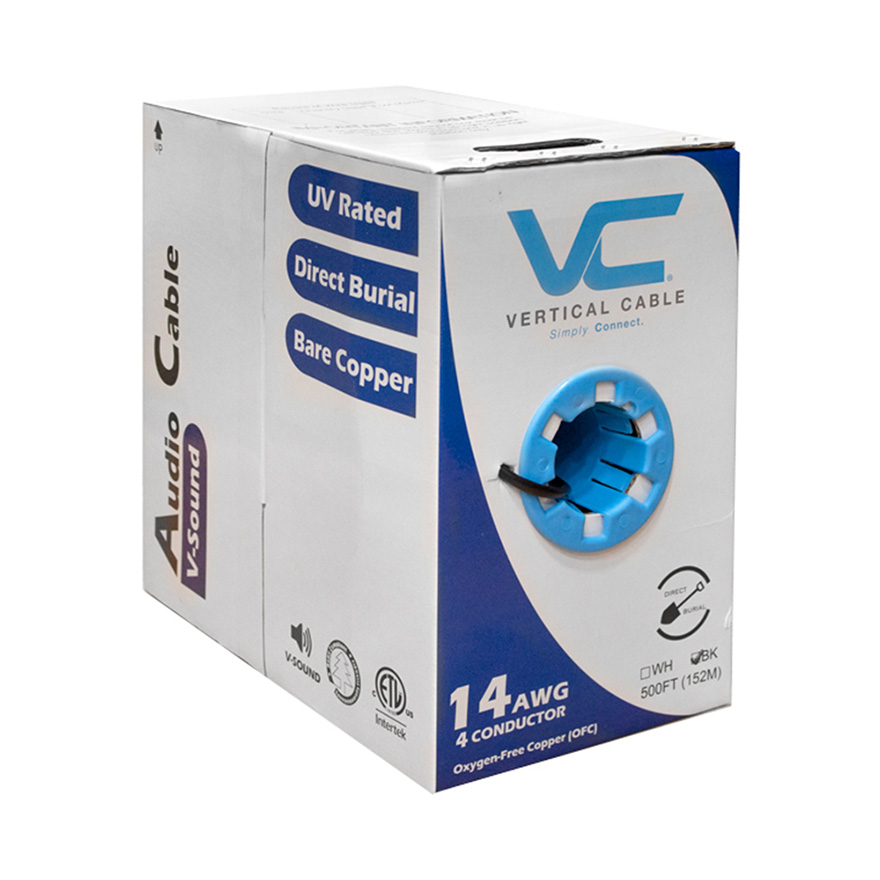

Vertical Cable® 209-2321/DB 4 Conductor Direct Burial 14AWG Speaker Cable, UV Rated, Stranded (Black | 500 ft. Pull Box)

Deliver a wide range of sound frequencies with the Vertical Cable 209-2320/DB. With this 4 Conductor 14AWG Wire Speaker Cable you can connect intercoms, sounds systems, and more! High-quality, professional grade sound never came through so well. What’s more, the direct burial design makes it easier than ever to produce efficient sound systems that require outdoor runs!

Direct Burial

This Direct Burial cable is specially designed to withstand exposure to heat, moisture, conductivity, and soil acidity. Rest assured knowing that your underground cables are protected by a durable weather-resistant (and UV rated) PE jacket!

Pull Box

Installs are quicker than ever. This speaker cable comes in a convenient pull box so you can keep things organized without any hassle.

Effortless Installs

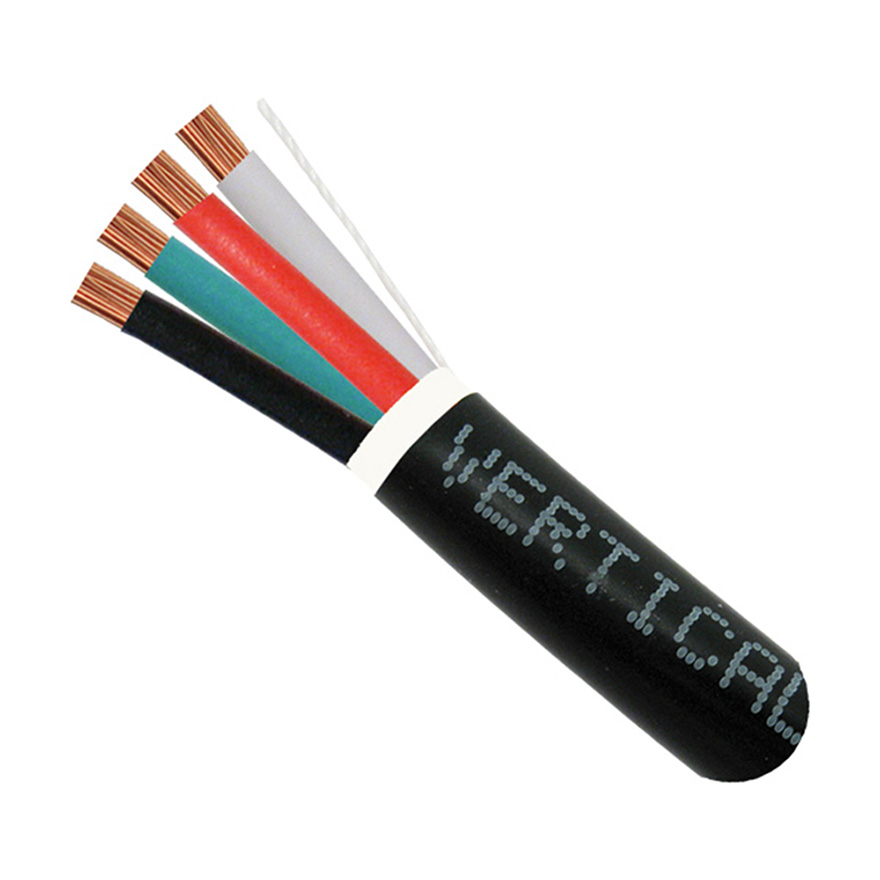

Get in and get out in no time. Specifically crafted with high-strand, oxygen-free, bare copper conductors, this cable is ETL listed and RoHS compliant!

View Information Sheet

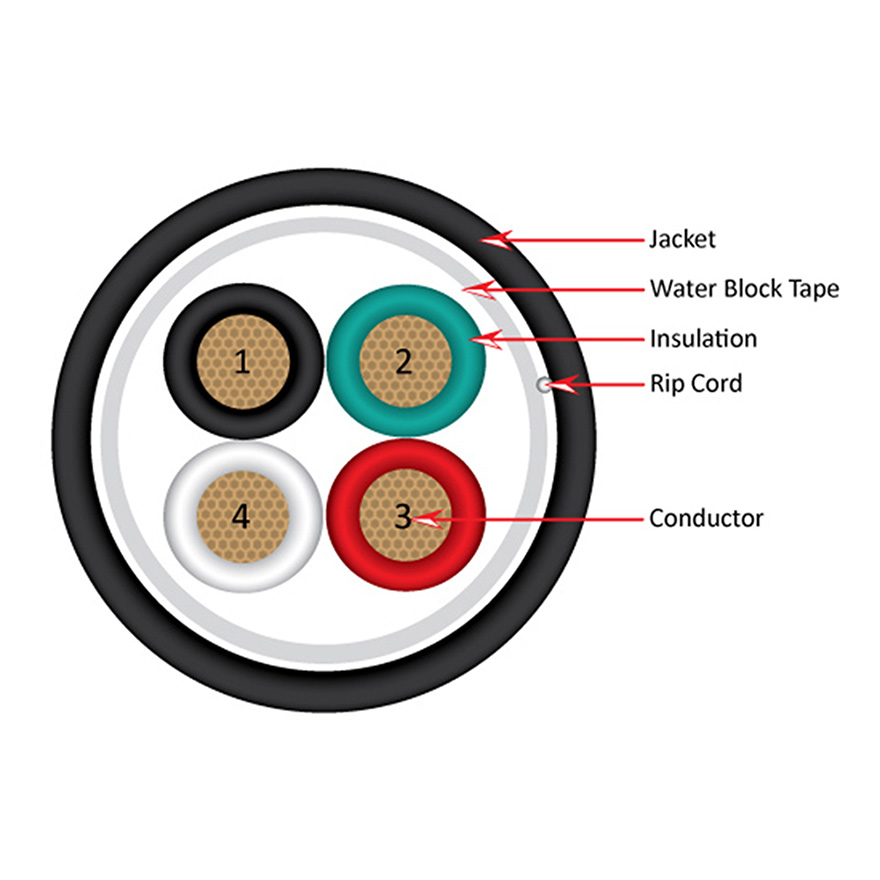

Conductor - 4 Core (Stranded BC):	Material: Oxygen Free Copper Wire Strands Size: 14AWG Stranding: 105 Strands Strand Diameter: 0.16 mm
Insulation:	Material: SRPVC Average Thickness: 0.36 mm Min. Point Thickness: 0.33 mm Diameter (±0.05mm): 2.60 mm
Water Block Tape:	Yes
Jacket:	Material: PE (UV) Color: Black Average Thickness: 0.95 mm Min. Point Thickness: 0.88 mm Outer Diameter (±0.1mm): 8.20 mm
Insulation Color:	Black, Red, Green, White
Ripcord:	Material: Nylon (150D)
Electrical Performance:	Rated Temperature: -20°C - 75°C Rated Voltage: 300V Reference Standard: ETL Listed
Mechanical Characteristics:	Test Object: Jacket Test Material: PE Before - Tensile Strength (Mpa): >=13.8 Aging - Enlongation (%): >=100 Aging Condition (°Cxhrs): 100x168 After - Tensile Strength (Mpa): >=85% of unaged Aging - Elongation (%): >50% of unaged Cold Bend: (-20±2° Cx4hrs): No Crack
Marking on Jacket:	VERTICAL 40032889 cETLus AUDIO CABLE 14 AWG 4 COND 105 STRANDED OXYGEN FREE OUTDOOR UV DIRECT BURIAL RoHS XXXFT
Features:	Suitable for Direct Burial Durable Weather Resistant Jacket UV Rated Outer Jacket High-Strand Oxygen Free Bare Copper Conductors ETL Listed, RoHS Compliant
