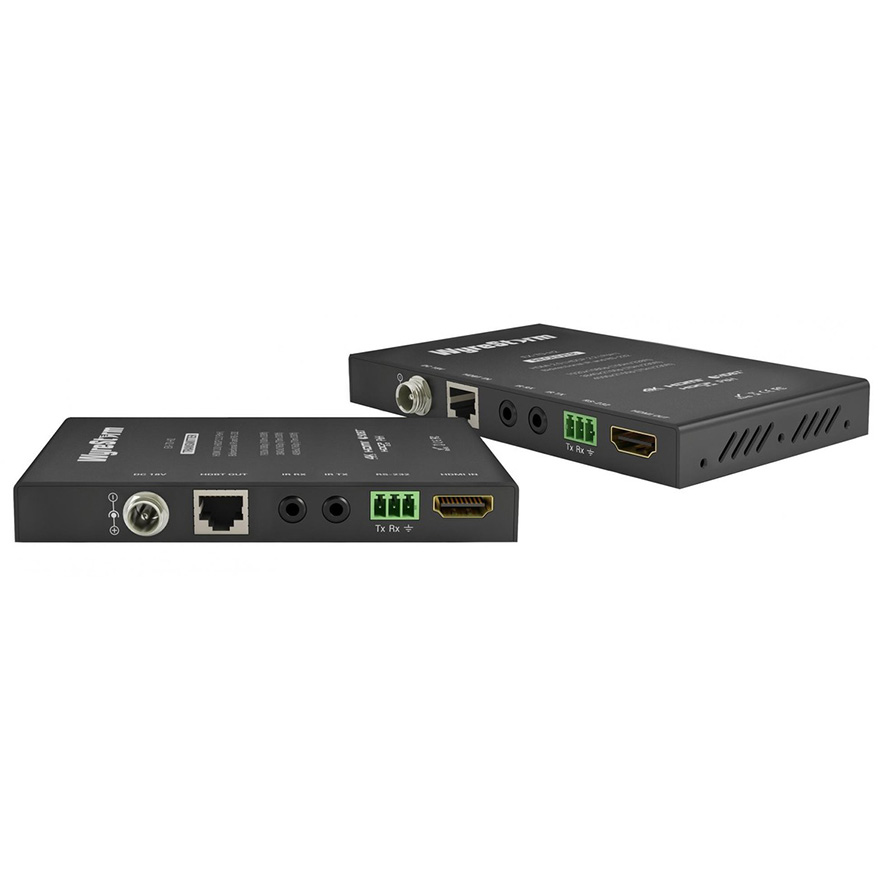

WYR1052 - WyreStorm Ex-70-H2 4K UHD Extender Set with 2-Way PoH and Bidirectional IR & RS-232 (4K: 70m / 230ft │1080p: 100m / 328ft)

Item: WYR1052 | Model: EX-70-H2

Brand: Wyrestorm Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

WyreStorm EX-70-H2 4K UHD Extender Set with 2-Way PoH and Bidirectional IR & RS-232 (4K: 70m / 230ft │1080p: 100m / 328ft)

4K with 2-Way PoH, Bidirectional IR & RS-232 in one extender set! The WyreStorm EX-70-H2 features a powerful Class A HDBaseT Transmission, an enhanced chipset, and a compact chassis. This set is specifically designed to meet modern demands for enhanced 4K UltraHD content.

Features

The EX-70-H2 is intended for use in any environment where 4K Ultra HD and HDR content and control are required over extended distances up to 70m/230ft. It features an enhanced chipset to ensure compatibility with current and future UHD source devices, including those outputting 4K HDR content as well as compatibility with the latest Ultra HD content and HDMI 2.0 video standards for transmission up to 4K UHD @30hz 4:4:4 24bit and 4K HDR @ 24Hz 4:2:0 10bit (BT. 2020).

How it Works

With 2-Way PoH, the EX-70-H2 enables the extender to be remotely powered from either TX or RX for ultimate convenience and ease of installation. It also supports distribution of 4K UHD video, 2ch PCM audio and multichannel support for up to 7.1. DTS-X and Dolby Atmos, as well as bidirectional IR and RS-232. A compact chassis of just 17mm allows discreet and flexible placement behind even the slimmest wall mount.

WyreStorm

WyreStorm is an award-winning electronics manufacturer passionately committed to the development and production of high quality HD distribution and control solutions at the very forefront of digital technology. With a research and development team ranking among the leading specialists in the HD distribution industry, their innovative solutions are often born from direct industry feedback to ensure their products, features and services are perfectly suited to the ever-growing number of residential and commercial applications. All WyreStorm products are manufactured to ISO9001 standards by an HDMI adopter organization and HDBaseT Alliance member to provide both higher standards of engineering and attention to detail together with a compatibility and reliability vital for diverse residential and commercial markets.

View User Manual

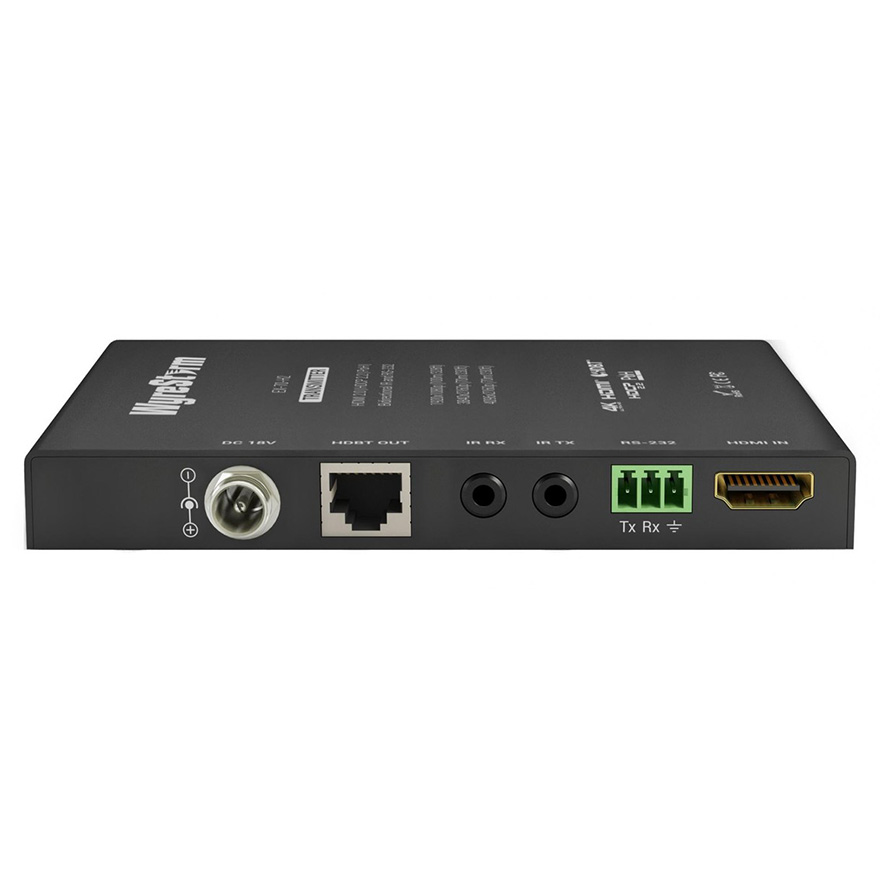

Inputs:	Transmitter: 1x HDMI 19-pin type A \| Receiver: 1x HDBaseT 8-pin RJ-45 female
Output:	Transmitter: 1x HDBaseT 8-pin RJ-45 female \| Receiver: 1x HDMI 19-pin type A
Audio Formats:	2ch PCM \| Up to 7.1 DTS-X and Dolby Atmos
Video Resolution (Max):
HDMI:	1920x1080p @60Hz 36bit (15m/50ft) 3840x2160p @30Hz 4:4:4 8bit per channel (7m/23ft) 3840x2160p @24Hz 4:2:0 HDR 10bit per channel (3m/9.8ft) 4096x2160p @60Hz 4:2:0 8bit per channel (7m/23ft)
Using Cat6:	1920x1080p @60Hz 36bit (100m/328ft) 3840x2160p @30Hz 4:4:4 8bit per channel (70m/230ft) 3840x2160p @24Hz 4:2:0 HDR 10bit per channel (70m/230ft) 4096x2160p @60Hz 4:2:0 8bit per channel (70m/230ft)
Using Cat6a/7:	1920x1080p @60Hz 36bit (100m/328ft) 3840x2160p @30Hz 4:4:4 8bit per channel (100m/328ft) 3840x2160p @24Hz 4:2:0 HDR 10bit per channel (70m/230ft) 4096x2160p @60Hz 4:2:0 8bit per channel (100m/328ft)
Color Depth:	1080p: 48bit \| 4K UHD: 8bit \| HDR @24p: 10bit per channel BT.2020
Maximum Pixel Clock:	297MHz
Communication and Control:
HDMI:	HDCP 2.2 \| EDID \| DVI/D supported with adapter (not included)
HDBaseT:	HDCP 2.2 \| EDID \| 2-way PoH \| Bidirectional IR \| RS-232
Ethernet:	N/A
IR:	1x IR TX 3.5mm (1/8in) Mono \| Bidirectional over HDBaseT 1x IR RX 3.5mm (1/8in) Stereo \| Bidirectional over HDBaseT
RS232:	1x 3-pin Screw Down Phoenix Connector \| Bidirectional over HDBaseT
Audio Return Channel (ARC):	N/A
Power Supply:	Input: 100~240V AC 50/60Hz \| Output: 18V DC 1A
Non-Standard PoH (2-Way):	18V 9W
Max Power Consumption:	26.5W
Operating Temperature:	32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing
Storage Temperature:	-4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing
Maximum BTU:	90.42 BTU/hr
Height:	17mm/0.67in
Width:	140mm/5.51in
Depth:	90.2mm/3.55in
Weight:	0.68kg/1.50lbs
Safety and Emission:	CE \| FCC \| RoHS
