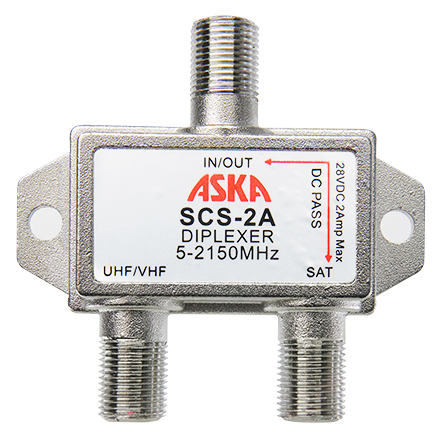

ASKA SCS2A DNA 2-Amp Diplexer for Dish Pro+

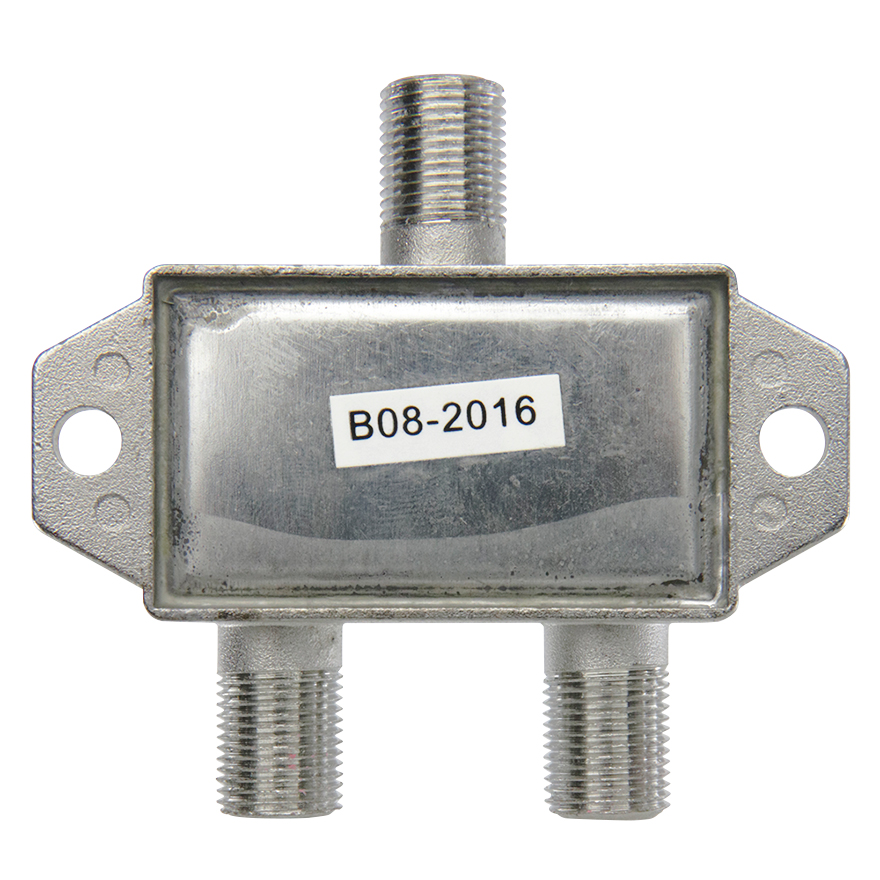

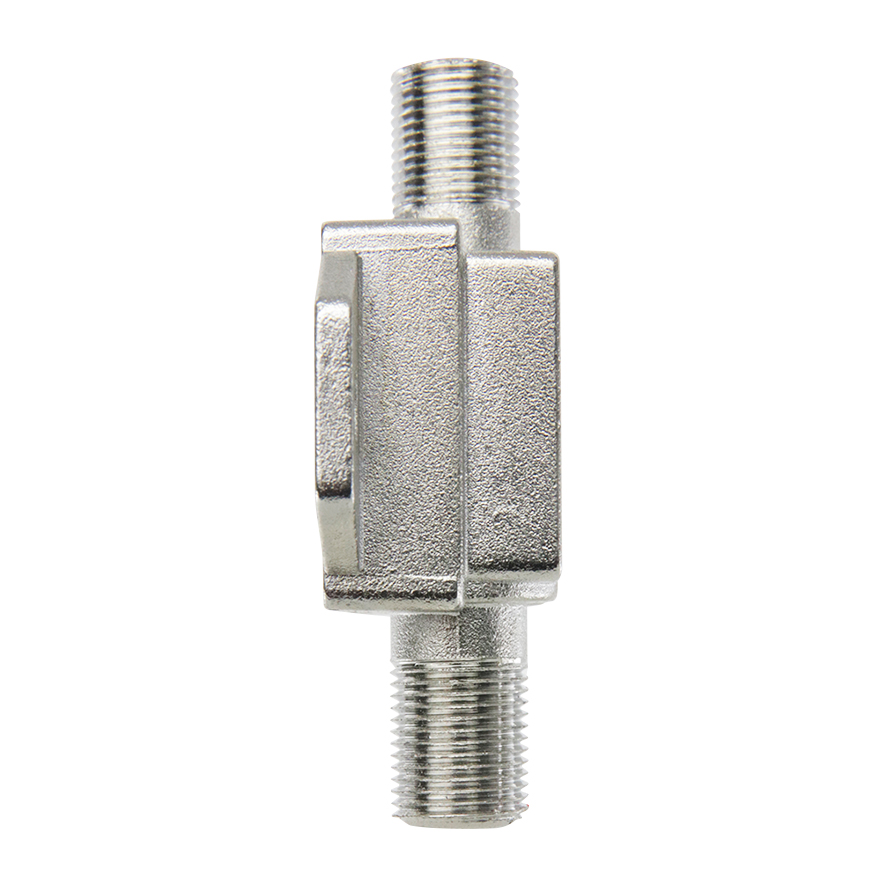

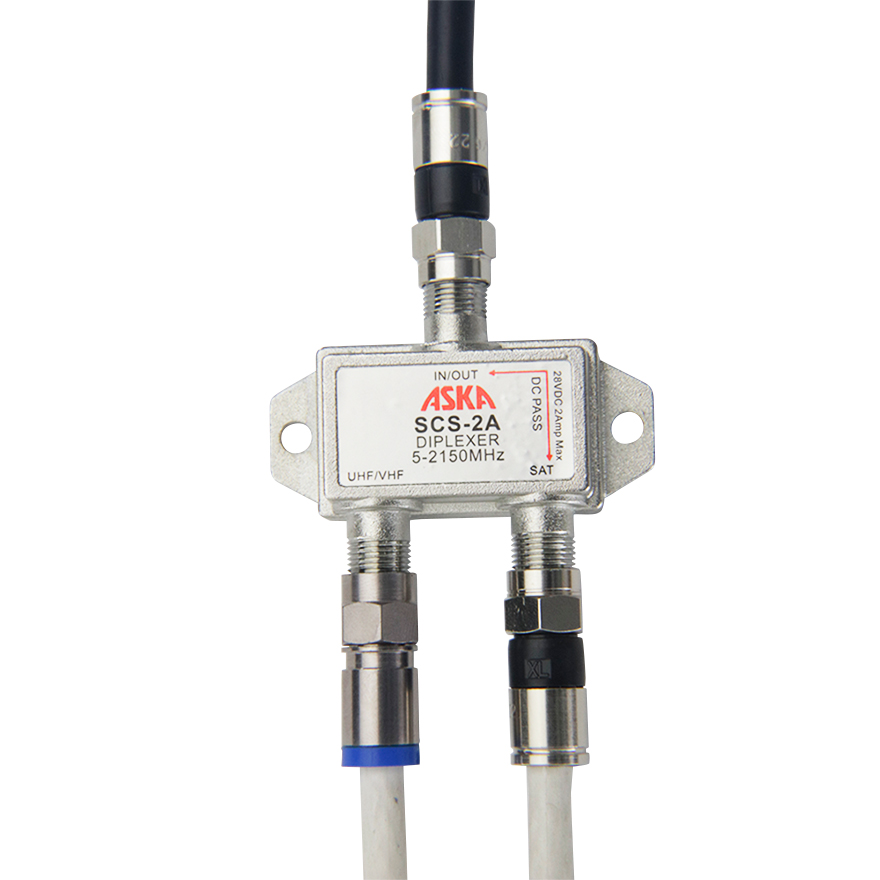

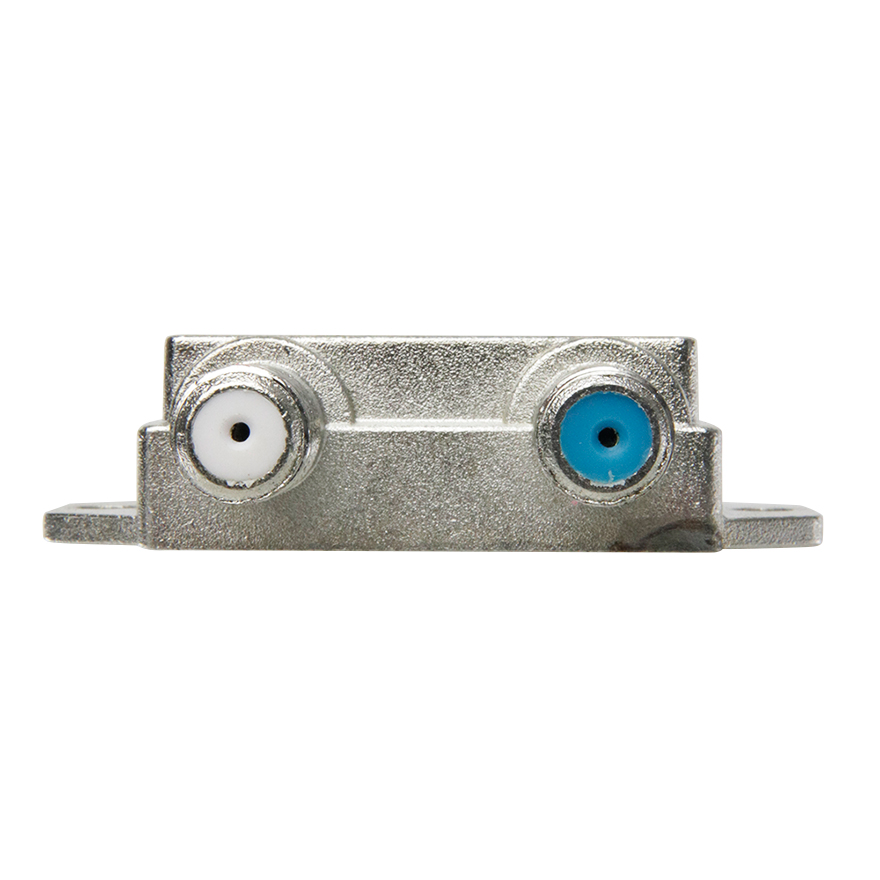

Model SCS-2A Dish Pro Diplexer - 2 Amp current capability (5-2150MHz) This Diplexer is Dish approved and features low insertion loss on both U/V and Sat port. Higher Return Loss, High Isolation (stop band rejection). 2 AMP 28VDC current capability on Sat port - power passing. Solder back cover for excellent RFI shielding. Complies with CEA-897 color coding.

UHF- Port Frequency Range:	5-40 MHz
VHF-Port Frequency Range:	50-806 MHz
Satellite Frequency Range:	950-2150MHz
UHF- Port Insertion Loss:	1.5 dB
VHF-Port Insertion Loss:	1.5 dB
Satellite Insertion Loss:	1.7 dB
UHF-Port Return Loss:	10 dB
VHF-Port Return Loss:	13 dB
Satellite Return Loss:	14 dB
Stop band rejection (Isolation):	38 dB

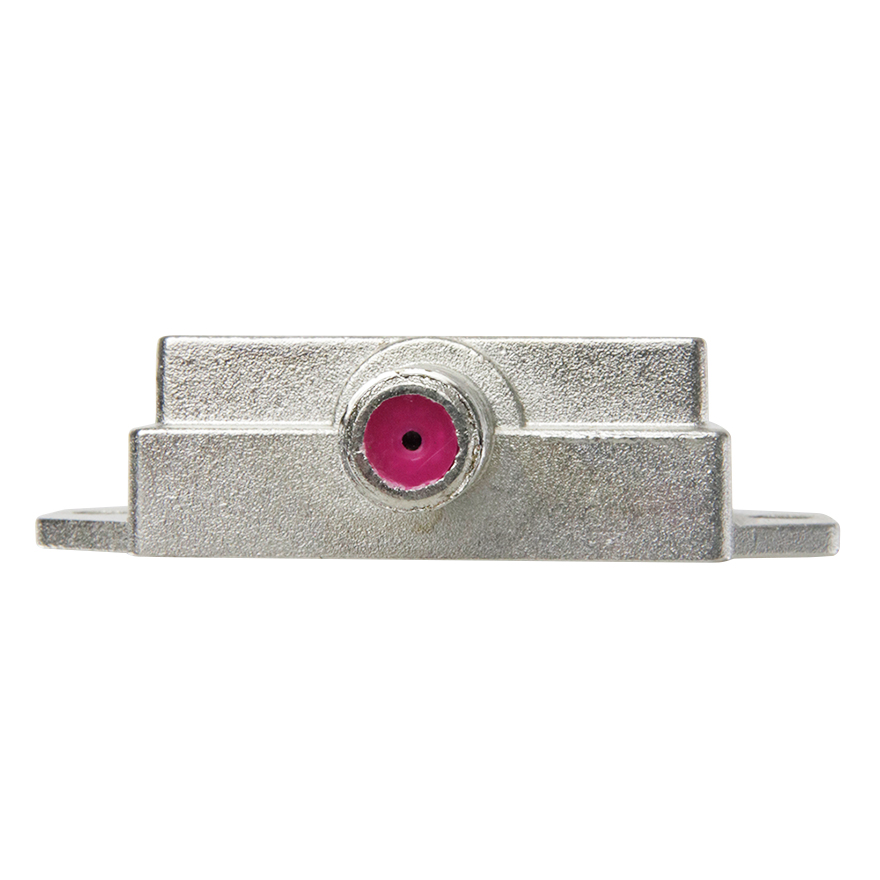

DC current capability (Sat port):	2 Amp. Max. 28 VDC
