Brand: Element HZ
Last Ordered:

ELE4048 - Element 8-Way Ultra HD 1080p 18Gbps HDMI Splitter with 4K & 3D
Item: ELE4048 | Model: ELE4048

Brand: Element HZ    Last Ordered:

  • Ships Free with Qualifying Order
  • Volume Discounts Available
  • Same Day Shipping


Questions Email
Call Today
Call Today (800) 844-9555

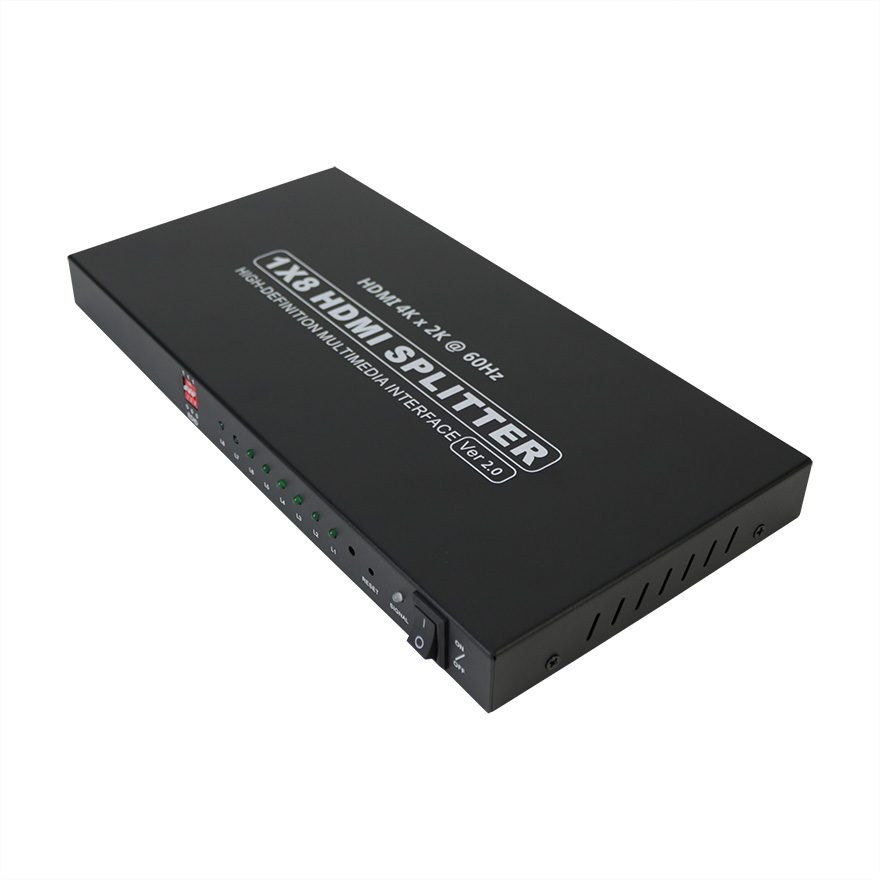

Element 8-Way Ultra HD 1080p 18Gbps HDMI Splitter with 4K & 3D

Distribute a single source to multiple displays with the Element 8-Way HDMI Splitter! With (1) input and (8) Outputs, the possibilities are endless. Quality and resolution are not compromised, and best of all this splitter works with any Ultra Hi-Def source and supports resolutions up to 4K x 2K @60Hz.

Features

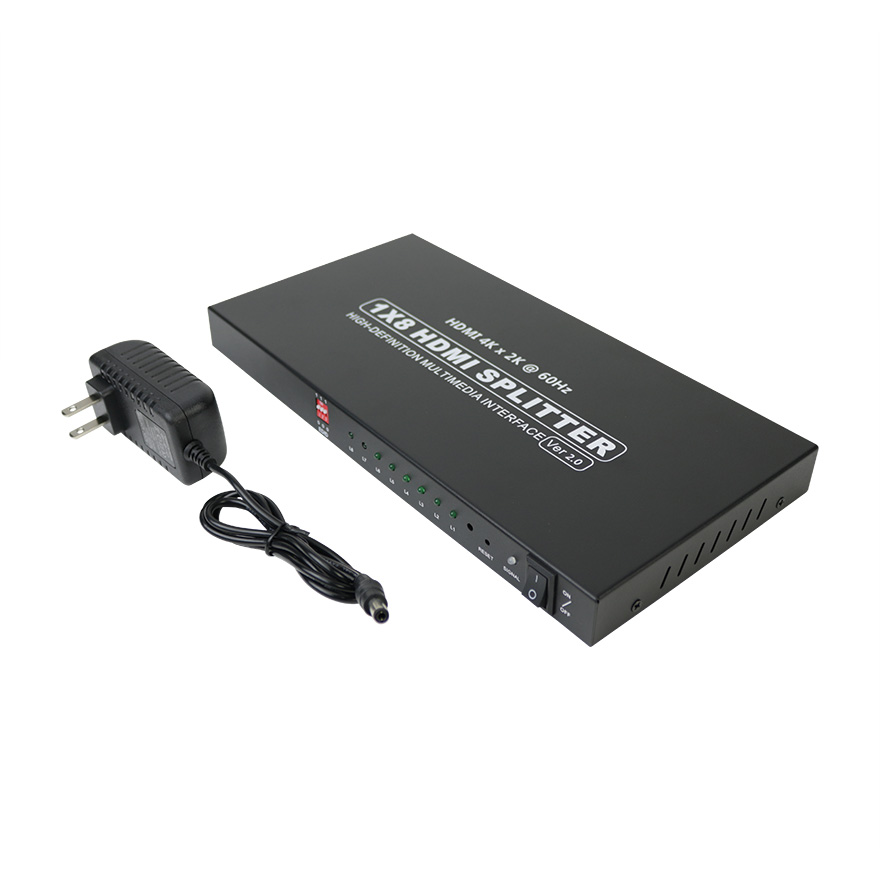

A 5V Power Supply and User Manual are included with this 8-Way HDMI Splitter. Installation is also a breeze. Just connect one HDMI cable from the source to the output to the HDMI splitter and then another HDMI cable runs from the Splitter to the display. Finally, power the splitter and it’s ready to go.

HDMI Resolution: 4k x 2k @ 60Hz / 3D / 1080p / 1080i / 720p / 576p / 576i / 480p
Support Video Color Format: 24-bit, 30-bit, 36-bit
Support Audio Format: DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
Max. Bandwidth: 600 MHz
Max. Baud Rate: 18 Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p (TTL)
Input/Output DDC Signal: 5 Volts p-p (TTL)
Input Cable Distance: ≤10m AWG26 HDMI standard cable
Output Cable Distance: ≤10m AWG26 HDMI standard cable
Max Working Current: 600mA
Power Adapter Format Input: AC (50HZ, 60HZ) :100V-240V
Power Adapter Format Output: DC5V/1A
Operating Temperature Range: (-15 to +55˚C)
Operating Humidity Range: 5 to 90% RH (No Condensation)
Dimensions (L x W x H): 10.9” x 5.3” x 1.1” (277mm x 135mm x 28mm)
Weight: 710 g
