VAN1239 - Vanco® EVSP4K18 Evolution Premier 1x8 HDMI® Splitter
Item: VAN1239 | Model: EVSP4K18

Brand: VANCO    Last Ordered:

  • Same Day Shipping


Questions Email
Call Today
Call Today (800) 844-9555


Vanco® EVSP4K18 Evolution Premier 1x8 HDMI® Splitter

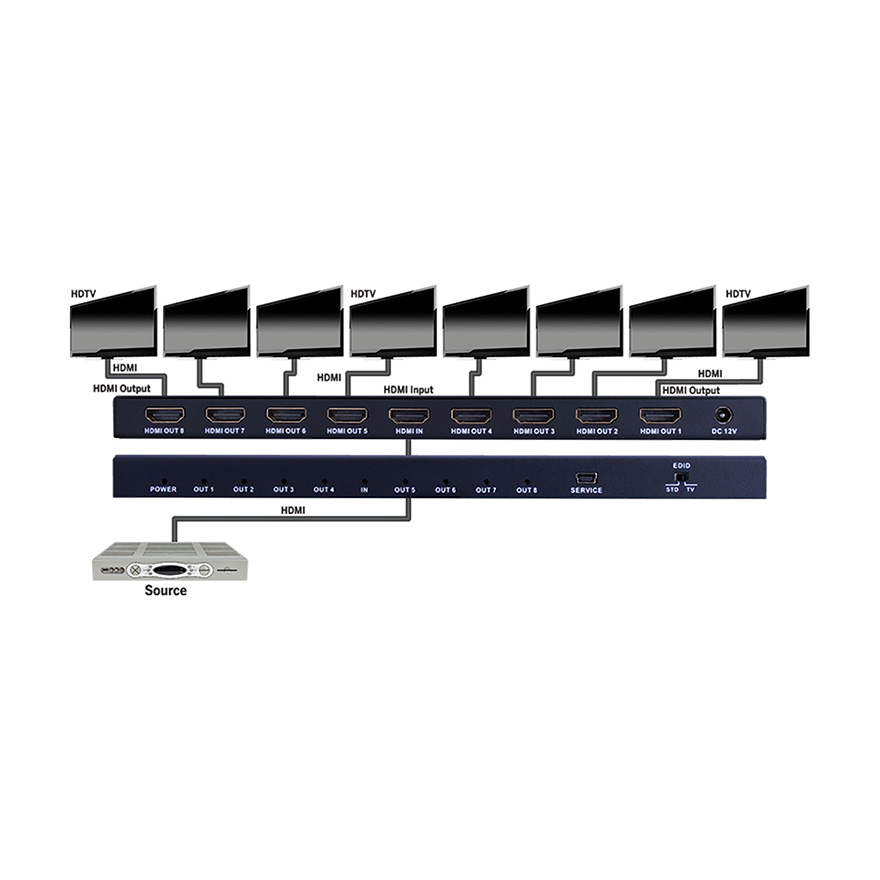

Transmit audio and video from a single source to 8 HDMI outputs with the Vanco® Evolution Premier. This 1x8 HDMI® Splitter supports 4K2K@60Hz Ultra High Definition Resolution without any loss of quality or resolution. It also included 3D frame sequential video format for up to 1080p@60, is compliant with HDCP 2.2 sources, supports high-resolution VESA mode video format up to QSXGA 2560×2048@60Hz, and more!

Features

The Vanco® Evolution Premier 1x8 HDMI® Splitter supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio, Hot-plug, and features status indicator for connection & input HDCP compliance. It includes a high bandwidth of 18 Gps and can even be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system.

Vanco® – Performance, Quality, Reliability

Vanco International, a leader in AV Distribution, is a primary developer and manufacturer with more than 50 years of experience in the Electronics Accessories Industry. With years of experience, Vanco designs and sources electronic accessory products that address ever emerging new markets. Vanco is committed to providing leading edge electronic accessories that advance connectivity and embrace the digital information evolution.

Video Bandwidth: 600MHz/18Gbps
Input Ports: 1 × HDMI (Female type)
Output Ports: 2, 4 or 8 × HDMI (Female type),
Output Resolution: 480i-1080p@50/60Hz; 2160p@24/30Hz;2160p@60Hz; VESA Formats up to QSXGA 2560x2048@60Hz
ESD Protection: Human Body model: ±8 kV (air-gap discharge) ±4 kV(contact discharge)
Power Supply: 1x2, 1x4: 5V/2A DC; 1x8: 12V 2.5A DV (US/EUstandards, CE/FCC/UL certified)
Dimensions: 1x2: 4” W x .7” H x 2.3” D; 1x4: 6.4” W x .6” H x2.5” D; 1x8: 9.6” W x .6” H x 4.1” D
Weight: 1x2, 1x4: 0.6 lb.;1x8: 1.4 lb.
Chassis Material: Metal
Operating Temperature: 0 °C~40 °C/ 32 °F~104 °F
Storage Temperature: −20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity: 20~90 % RH (non-condensing)
Power Consumption (Max): 1x2, 1x4: 10W; 1x8: 30W
