VGA Extender W/Audio over ELE7016
Mouse over to zoom

Brand: Element HZ
Last Ordered:

ELE7016 - Element-Hz™ VGA & Digital/Stereo Audio over Cat5e/6 Extender
Item: ELE7016 | Model: ELE7016

Brand: Element HZ    Last Ordered:

  • Same Day Shipping


Questions Email
Call Today
Call Today (800) 844-9555

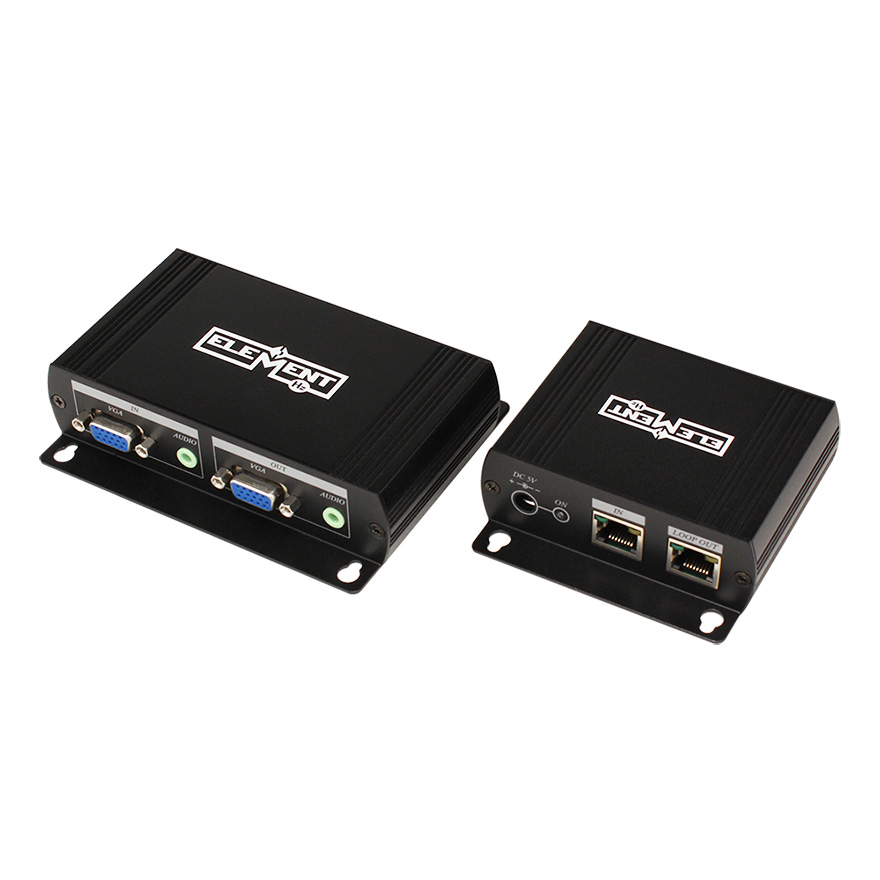

Element-Hz™ VGA & Digital/Stereo Audio over Cat5e/6 Extender

Tailored specifically for your media needs, this VGA extender from Element-Hz™ lets you extend VGA video up to 1,000ft (300m). All you need is a Cat5e or a Cat6 cable to transmit both high definition video and stereo audio to your display or projector. We also provide built-in equalization and signal gain controls to attune for any interference, poor signals, or low cable quality. These on-board controls guarantee that your signals have the highest video bandwidth as well as undistorted sound.

Crystal Clear Video

This device is able to support up to 1600 x 1200 pixels, allowing for the highest quality video of any extender on the market. It also produces a refresh rate of up to 85Hz, ensuring that you have a crystal clear, pristine picture.

Go Long!

We give you all the slack you could ever need with this Element-Hz™ extender. It extends your VGA video up to 1000ft! That’s longer than an entire football field!!

On-Board Controls

Don’t let distance or low quality cable interfere with your video and sound quality! With the built-in equalization and signal gain controls, you’re guaranteed to have reduced interference as well as flawless signal strength.

There are no support documents available for this product at this time.

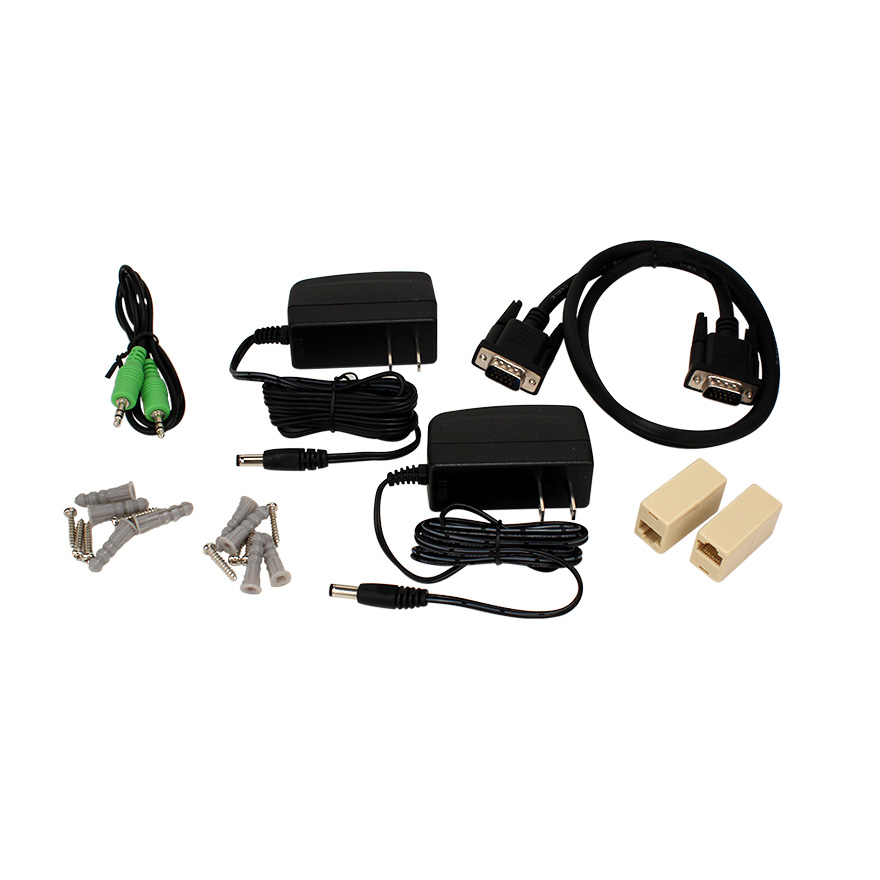

Includes: Transmitter and Receiver, (1) VGA Cable (1ft), (1) 3.5mm Stereo Phone jack cable (3ft), and (2) Power Supplies
Extends: VGA video plus stereo or digital audio up to 1000ft (300m) over one UTP Cat5e/Cat6 cable
Supports: up to 1600 x 1200 pixels @85Hz
Dual output at local unit: 1 VGA output for local site, plus 1 Cat5 RJ45 output for remote site
Built-in equalization: and gain control at remote unit
Transmitter local output supports: DDC, DDC2, DDC2B, and virtual DDC, DDC backup function
Audio Supported By: digital encoding process for undistorted sound
Supports: stereo audio, Digital audio LPCM up to 96Khz, Dolby Digital, DTS
Features:  Both digital and analog audio can be output simultaneously at the receiver unit
Dimensions: 4.7”W x 3.75”H x 1.5”D
There are no videos available for this product at this time.
