LUT1002 - Lutron® P-PKG1W-WH Caseta® In-Wall Dimmer Kit w/ 1 Dimmer, 1 Pico Remote, & 1 Claro Wallplate (White)

Item: LUT1002 | Model: P-PKG1W-WH

Brand: Lutron Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

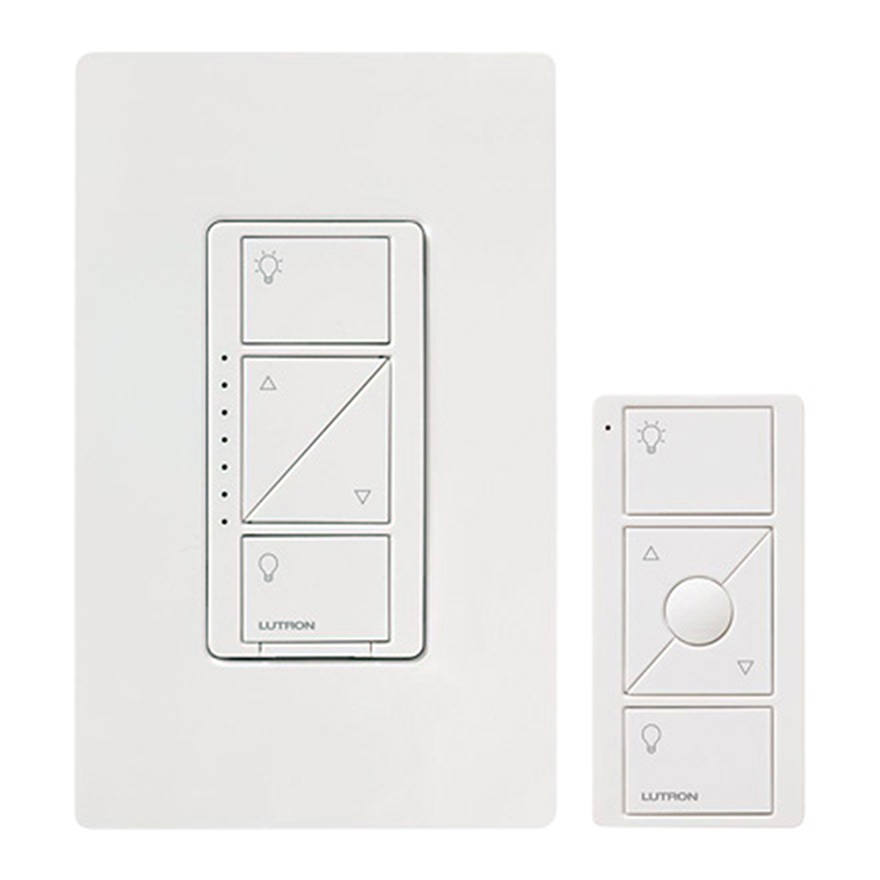

Lutron® P-PKG1W-WH Caseta® In-Wall Dimmer Kit w/ 1 Dimmer, 1 Pico Remote, & 1 Claro Wallplate (White)

Set up an efficient and aesthetically pleasing lighting control system! This Lutron® kit comes complete with(1) PD-6WCL-WH Caséta Wireless In-Wall Dimmer, (1) PJ2-3BRL-WH-L01R Pico® Wireless Remote Control, and (1) CW-1WH Claro Wallplate.

PD-6WCL-WH Caséta® Wireless In-Wall Dimmer

The Caséta Wireless in-wall dimmer controls lighting loads automatically through wireless sensors and wireless remote controls, providing a system that delivers energy savings, convenience, and ease of installation. The Caséta Wireless in-wall dimmer uses Lutron patented Clear Connect RF Technology, which enables wireless communication with Radio Powr Savr sensors and Pico remote controls for total load control.

PJ2-3BRL-WH-L01R Pico® Wireless Remote Control

The Pico wireless control is a flexible and easy to use device that allows the user to control Lutron wireless load-control devices from anywhere in the space. This battery-operated control requires no external power or communication wiring. Use Pico mounted to a tabletop pedestal, clipped to a car visor, or mounted to a wall.

CW-1WH Claro® Wallplate

Lutron Claro wallplates are the final, sleek finish to this lighting control kit. Lutron Claro wallplates snap on with no visible means of attachment and are perfect for standard 1-gang installation.

Lutron®

Lutron is a technology-centered and people-driven company. As a private corporation guided by their founder’s simple but profound Five Principles, Lutron has a long history of significant growth and smart innovations. Lutron holds over 2,700 worldwide patents. In almost 50 years of innovation, Lutron has invented hundreds of lighting control devices and systems, and expanded their product offering from 2 products to 15,000. Since the beginning, the company has maintained exceptional service, offering 24-hour technical support for its products, and a friendly customer service department that sustains close relationships with Lutron clients.

There are no support documents available for this product at this time.

(1) PD-6WCL-WH Caseta Wireless In-Wall Dimmer
Regulatory Approvals:	cULus Listed NOM certified FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules Industry Canada certified COFETEL certified
Power:	Operating voltage: 120 V~ 50/60 Hz
Key Design Features:	Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2. Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits. Dimmers always operate locally and do not require system control. Power failure memory: should power be interrupted, the control will return to its previously set level prior to the interruption when power is restored. Uses Lutron Claro wallplates or designer-style wallplates from other manufacturers. Lutron Claro wallplates snap on with no visible means of attachment. Requires a 1-gang U.S. wallbox. 3 1/2 in (89 mm) deep recommended, 2 1/4 in (57 mm) deep minimum. Green LEDs indicate load status.
System Communications and Capacity:	The Caséta Wireless in-wall dimmer communicates with the Pico remote controls and Radio Powr Savr sensors through radio frequency (RF). The Caséta Wireless in-wall dimmer must be located within 60 ft (18 m) line-of-sight or 30 ft (9 m) through walls, of Pico remote controls and Radio Powr Savr sensors. Up to ten transmitting devices may be associated to each in-wall dimmer.
Environment:	Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0%-90% humidity, non-condensing. Indoor use only.


(1) PJ2-3BRL-WH-L01R Pico Remote Control
Features:	Provides control for the following: Caséta® Wireless controls Energi Savr NodeT, Quantum®, and myRoomTsystems, through the use of a QS sensor module (QSM) ViveTM systems, including: Maestro Wireless® controls PowPak® modules GRAFIK Eye® QS wireless systems HomeWorks® QS wireless systems Maestro Wireless® controls PowPak® modules RadioRA® 2 systems Serena® RF remote control shades Sivoia® QS wireless systems Control available in a variety of button marking options. Easy reconfiguration for use as: Handheld remote Wall-mount control (with or without faceplate; faceplate adapter kit sold separately) Car visor control (car visor clip sold separately) A table top control (table top pedestal sold separately). Battery-powered. Requires no wiring. 10 year battery life (one CR2032 battery included). Can provide control of blinds, curtains, or lighting devices within a range of 30 ft (9 m) through walls and 60 ft (18 m) line-of-sight. BAA-compliant model numbers available. Add a “U” prefix to the model number.
Regulatory Approvals:	Lutron® Quality Systems registered to ISO 9001:2008. FCC Certified (U.S.A.) IC Certified (Canada) COFETEL Certified (Mexico) SUTEL Certified (Costa Rica) Anatel Certified (Brazil)
Power:	Operating Voltage 3 V- (1) CR2032 Battery (included)
System Communication and Capacity:	Communicates using Radio Frequency (RF) at 431 MHz to 437 MHz. Thousands of system addresses prevent interference between systems. Can be assigned to control blinds, curtains or lighting devices that are within a 30 ft (9 m) range. Can be configured as a scene or zone control in GRAFIK Eye® QS wireless applications.
Mounting Considerations:	Mounting of any RF devices on or in close proximity to a metal surface will drastically reduce the effective range of radio signal transmission or reception. All RF devices must be mounted on non-conductive materials to ensure proper performance. If you wish to mount your Pico wireless control to a metal surface, the PICO-MOUNT-1-XX-CPN5733 will be required in order to maintain proper RF performance. For availability, please contact your local Lutron sales office.
Environment:	Ambient operating temperature: 32°F to 140°F (0°C to 60°C) Maximum 90% non-condensing relative humidity Indoor use only
Warranty:	1 Year Limited Warranty For additional Warranty information, please visit: www.lutron.com/TechnicalDocumentLibrary/369-119_Wallbox_Warranty.pdf
