Brand: Lutron

Last Ordered:

LUT1015 - Lutron® RR-FDN-ADAPT-WH RadioRA® 2 C·L® Adaptive Foundation Package w/ (4) Phase Adaptive Dimmers, (1) Remote Dimmer, (1) Wall Keypad, & (1) Main Repeater (White)

Item: LUT1015 | Model: RR-FDN-ADAPT-WH

Brand: Lutron Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

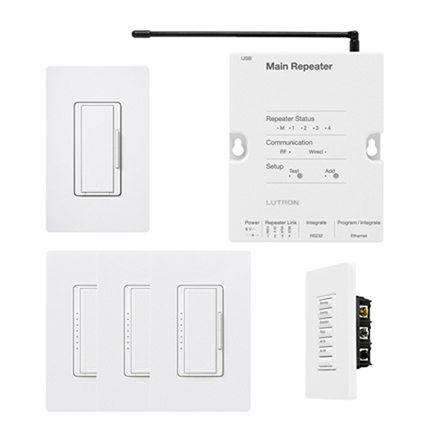

Lutron® RR-FDN-ADAPT-WH RadioRA® 2 C·L® Adaptive Foundation Package w/ (4) Phase Adaptive Dimmers, (1) Remote Dimmer, (1) Wall Keypad, & (1) Main Repeater (White)

Light bulbs are changing and LEDs are paving the way of the future. Stay ahead of the curve with these newly refreshed packages to effectively dim approved LEDs and CFLs. Packages are discounted to allow you to put more money in your pocket or offer better value to your customers. This Foundation Package includes: (4) RRD-6NA-WH Phase Adaptive Dimmers, (1) RD-RD-WH Remote Dimmer, (1) RRD-W6BRL-WH Wall Keypad, and (1) RR-MAIN-REP-WH Main Repeater. Start every system with a package and add products to finish the job!

(4) RRD-6NA-WH RadioRA® 2 Maestro® 600 W/600 VA Neutral Wire Adaptive Dimmers, Single Pole/Multi-Location (White)

(1) RD-RD-WH RadioRA® 2 Maestro® Remote Dimmer, 120 V (White)

RadioRA® 2 Maestro® local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system. Local lighting controls are useful in locations where single circuits of lighting need to be dimmed or switched. The RD-RD-WH enables light levels to be fine-tuned by pressing and holding the dimming rocker until the desired light level is reached.

(1) RRD-W6BRL-WH RadioRA® 2 Wall-Mount Designer Keypad

RadioRA 2 wall-mount designer keypads provide homeowners with a simple and elegant way to operate lights, shades /draperies, motorized screens, and many other devices. RadioRA 2 keypads feature large, easy-to-use buttons, plus a unique backlit engraving option that makes the keypads readable any time of the day or night. The keypad buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability.

(1) RR-MAIN-REP-WH RadioRA® 2 RF Main Repeater (White)

RadioRA® 2 Repeaters extend the range of Radio Frequency (RF) signals that are sent between devices. Repeaters ensure error-free communication between system components and prevent interference from neighboring systems. For systems that extend up to 30 ft (9 m), one (1) Main Repeater is required to set up the system. Up to four (4) Auxiliary Repeaters (sold separately) can be added to extend the RF range for larger system applications. Each Repeater has an RF range of 30 ft (9 m), covering a total area of approximately 2500 ft2 (232 m2).

Local Control Features

RadioRA® 2 Maestro® dimmers incorporate advanced features such as fade on/fade off, delayed long fade to off, and rapid full on. RadioRA® 2 Maestro® local controls include a Front Accessible Service Switch (FASSTM) for safe lamp replacement. RadioRA® 2 Maestro® local controls install in single-pole or multi-location applications. Remote dimmers / switches are available for multi-location control.

Flexible Wallplate Options

Use Lutron® Designer (Claro® or Satin Colors®) wallplates or designer-style wallplates from other manufacturers (wallplates are sold separately). Lutron® Claro® and Satin Colors® wallplates snap on with no visible means of attachment. RadioRA® 2 Maestro® local controls support color change kits.

RadioRA® 2 Connectivity

RadioRA 2 is a wireless total home control system. This energy-saving system gives you the ability to adjust the amount of daylight and electric light (using light controls and automated shades) as well as temperature in a single room or throughout the whole home. The system also turns off standby power to small appliances when they’re not in use.

Amazon Integration

Directly control a RadioRA 2 system using voice. No need to press a button to adjust light, shade, or temperature control scenes. Simply tell Alexa to do it for you: Alexa, turn on Dining. You can even edit scenes for Alexa directly within the Lutron Connect app.

Sonos Endorsed Integration

Directly control any Sonos Home Sound System alongside Lutron lights, shades, and temperature using RadioRA 2 keypads, the Lutron Connect app, or the New! Pico remote for audio. Even incorporate audio into scenes to create the perfect Welcome – turn lights on to 50%, raise shades, set temperature to a comfortable 75 degrees, and play your favorite music station.

Pico Remote for Audio

Use for quick, convenient hard-button control of audio. Play, pause, skip tracks, cycle through favorites, and adjust volume – without launching an app. It enables seamless control of any Sonos Home Sound System as well as many other distributed audio systems.

Google Assistant Integration – Coming Soon!

Coming Soon! Lutron just announced a new integration with Google Home that allows homeowners to easily control their RadioRA 2 lighting systems using the Google Assistant, offering a greater flexibility and peace of mind. Now – with a few words – you can have hands-free assistance controlling lights in your connected home, whether you’re in your living room relaxing on the couch, or out of town on vacation.

Lutron®

Lutron is a technology-centered and people-driven company. As a private corporation guided by their founder’s simple but profound Five Principles, Lutron has a long history of significant growth and smart innovations. Lutron holds over 2,700 worldwide patents. In almost 50 years of innovation, Lutron has invented hundreds of lighting control devices and systems, and expanded their product offering from 2 products to 15,000. Since the beginning, the company has maintained exceptional service, offering 24-hour technical support for its products, and a friendly customer service department that sustains close relationships with Lutron clients.

There are no support documents available for this product at this time.

(4) Phase Adaptive Dimmers RRD-6NA-WH
Power:	120 V~ 50/60 Hz
Typical Power Consumption:	Dimmer: 0.6 W Test conditions: load is off and nightlight mode is enabled.
Regulatory Approvals:	UL, cUL, NOM, FCC, IC, COFETEL
Environment:	Ambient operating temperature: 32°F to 104°F (0°C to 40°C), 0% to 90% humidity, non-condensing. Indoor use only.
Communications:	Dimmers and switches communicate with the system through Radio Frequency (RF) and must be located within 30 ft (9 m) of a repeater. Remote dimmers/switches are not required to be within a specific range of a repeater. System devices operate on frequencies between 431.0 MHz and 437.0 MHz.
ESD Protection:	Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2.
Surge Protection:	Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits.
Power Failure:	Power failure memory: should power be interrupted, the control will return to its previous state when power is restored.
Mounting:	Requires a U.S. wallbox. 3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum.
Wiring:	Uses conventional 3-way and 4-way wiring.
Warranty:	www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf

(1) Remote Dimmer RD-RD-WH
Power:	120 V~ 50/60 Hz
Typical Power Consumption:	Remote Dimmer: 0 W Test conditions: load is off.
Regulatory Approvals:	UL, NOM, FCC, IC, COFETEL, ANATEL
Environment:	Ambient operating temperature: 32°F to 104°F (0°C to 40°C), 0% to 90% humidity, non-condensing. Indoor use only.
Communications:	Dimmers and switches communicate with the system through Radio Frequency (RF) and must be located within 30 ft (9 m) of a repeater. Remote dimmers/switches are not required to be within a specific range of a repeater. System devices operate on frequencies between 431.0 MHz and 437.0 MHz.
ESD Protection:	Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2.
Surge Protection:	Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits.
Power Failure:	Power failure memory: should power be interrupted, the control will return to its previous state when power is restored.
Mounting:	Requires a U.S. wallbox. 3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum.
Wiring:	Uses conventional 3-way and 4-way wiring.
Warranty:	www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf

(1) Wall Keypad RRD-W6BRL-WH
Power:	120 V~ 50/ 60 Hz 0.5 A
Typical Power Consumption:	0.6 W Test conditions: all backlights on medium intensity, two LEDs on (two presets active), keypad powered at 120 V~
Regulatory Approvals:	UL, CSA, NOM, FCC, IC, COFETEL
Environment:	Ambient operating temperature: 32°F to 104°F (0°C to 40°C)m 0% to 90% humidity, non-condensing. Indoor use only.
Communications:	Wall-mount designer keypads communicate with the system through Radio Frequency (RF) and must be located within 30 ft (9 m) of a repeater.
ESD Protection:	Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2.
Surge Protection:	Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits.
Power Failure:	Power failure memory: should power be interrupted, the keypad will return to its previous state when power is restored.
Mounting:	Requires a U.S. wallbox. 3 1/2 in (89 mm) deep recommended, 2 1/4 in (57 mm) deep minimum.
Wiring:	Wall-mount designer keypads require a neutral wire connection.
Warranty:	1 Year Limited Warranty. http://www.lutron.com/resiinfo
Design Features:	At the press of a single button, lights fade ON or OFF to desired levels and shades/draperies open or close to desired positions. Light levels and shade/draperyf positions can be fine-tuned by pressing and holding the raise/lower buttons. Programmable to select scene or room preset levels or positions. Adjustable backlight intensity. IR receivers at the front (-W5BRLIR only) and back (all models) of the keypad allow for the use of an IR remote for line-of-sight operation (front) or IR repeater kit integration (back). Use and IR remote to select the same programmed rooms, scenes, and raise/lower buttons as the keypad (-W5BRLIR only). Configurable Raise/Lower selection Last button or IR room/scene (default) - devices controlled by the last button pressed or last IR room/scene selected will raise/lower Double-tap - devices controlled by a double-tapped button will raise/lower Prepaid engraving included. Redeemable for one engraved Replacement Kit.

(1) Main Repeater RR-MAIN-REP-WH
Power:	9 V- 300 mA See Low-Voltage Transformer spec (Lutron® P/N 369561)
Typical Power Consumption:	Main Repeater: 3.1 W Test conditions: one LED on, Ethernet cable plugged in, powered by the 9 V- adapter
Regulatory Approvals:	cULus listed; FCC certified; Industry Canada certified; COFETEL certified; ASEP certified; Bermuda Department of Telecommunications type approval; CRC certified; INDOTEL certified; SUTEL certified
Environment:	Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing. Indoor use only
Low-Voltage Wire Type:	Two pairs: one pair 18 AWG (1.0 mm2), one pair 22 AWG to 18 AWG (0.5 mm2 to 1.0 mm2) twisted shielded – IEC PELV/NEC® Class 2 cable
Communications:	Repeaters communicate with the system through RF. All devices must be located within 30 ft (9 m) of a Repeater. All Repeaters must be within 60 ft (18 m) of another Repeater. System devices operate on frequencies between 431.0 MHz to 437.0 MHz or 868.125 MHz to 869.850 MHz
ESD Protection:	Tested to withstand electrostatic discharge or loss of operation, in accordance with IEC 61000-4-2.
Surge Protection:	n Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits
Power Failure:	Power failure memory: should power be interrupted, the Repeater will return to its previous state when power is restored.
Mounting:	Mount on a wall, ceiling, or level surface using the two #6 (M3) screws provided
Connections:	Main Repeater: Ethernet, RS232 and RS485
Warranty:	www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf www.lutron.com/TechnicalDocumentLibrary/Intl_Warranty.pdf
Design Features:	Test button: enters the system diagnostic mode. Can be programmed from a PC. RS485 port to connect to other Repeaters through a wired link (daisy-chain). Main Repeaters allow configuration and integration to the system through Ethernet or RS232 ports. System with 2 Main Repeaters must be connected via Ethernet.
