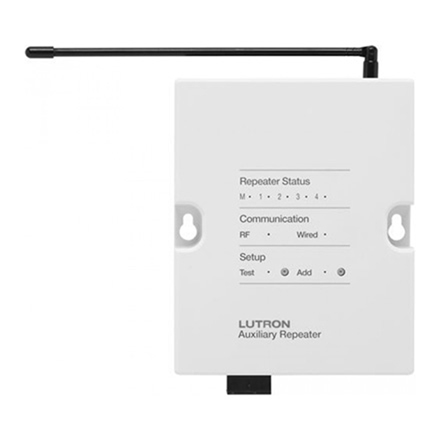

Lutron® RR-AUX-REP-WH RadioRA® 2 RF Auxiliary Repeater (White)

RadioRA® 2 Repeaters extend the range of Radio Frequency (RF) signals that are sent between devices. Repeaters ensure error-free communication between system components and prevent interference from neighboring systems. For systems that extend up to 30 ft (9 m), one (1) Main Repeater (sold separately) is required to set up the system. Up to four (4) Auxiliary Repeaters can be added to extend the RF range for larger system applications. Each Repeater has an RF range of 30 ft (9 m), covering a total area of approximately 2500 ft2 (232 m2).

RadioRA® 2 Connectivity

RadioRA 2 is a wireless total home control system. This energy-saving system gives you the ability to adjust the amount of daylight and electric light (using light controls and automated shades) as well as temperature in a single room or throughout your whole home. The system also turns off standby power to small appliances when they’re not in use.

Amazon Integration

Directly control a RadioRA 2 system using voice. No need to press a button to adjust light, shade, or temperature control scenes. Simply tell Alexa to do it for you: Alexa, turn on Dining. You can even edit scenes for Alexa directly within the Lutron Connect app.

Sonos Endorsed Integration

Directly control any Sonos Home Sound System alongside Lutron lights, shades, and temperature using RadioRA 2 keypads, the Lutron Connect app, or the New! Pico remote for audio. Even incorporate audio into scenes to create the perfect Welcome – turn lights on to 50%, raise shades, set temperature to a comfortable 75 degrees, and play your favorite music station.

Pico Remote for Audio

Use for quick, convenient hard-button control of audio. Play, pause, skip tracks, cycle through favorites, and adjust volume – without launching an app. It enables seamless control of any Sonos Home Sound System as well as many other distributed audio systems.

Google Assistant Integration – Coming Soon!

Coming Soon! Lutron just announced a new integration with Google Home that allows homeowners to easily control their RadioRA 2 lighting systems using the Google Assistant, offering a greater flexibility and peace of mind. Now – with a few words – you can have hands-free assistance controlling lights in your connected home, whether you’re in your living room relaxing on the couch, or out of town on vacation.

Lutron®

Lutron is a technology-centered and people-driven company. As a private corporation guided by their founder’s simple but profound Five Principles, Lutron has a long history of significant growth and smart innovations. Lutron holds over 2,700 worldwide patents. In almost 50 years of innovation, Lutron has invented hundreds of lighting control devices and systems, and expanded their product offering from 2 products to 15,000. Since the beginning, the company has maintained exceptional service, offering 24-hour technical support for its products, and a friendly customer service department that sustains close relationships with Lutron clients.

View User Manual

Power:	9 V- 300 mA See Low-Voltage Transformer spec (Lutron® P/N 369561)
Typical Power Consumption:	Auxiliary Repeater: 0.6 W Test conditions: one LED on, powered by the 9 V- adapte
Regulatory Approvals:	cULus listed; FCC certified; Industry Canada certified; COFETEL certified; ASEP certified; Bermuda Department of Telecommunications type approval; CRC certified; INDOTEL certified; SUTEL certified
Environment:	Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing. Indoor use only
Low-Voltage Wire Type:	Two pairs: one pair 18 AWG (1.0 mm2), one pair 22 AWG to 18 AWG (0.5 mm2 to 1.0 mm2) twisted shielded – IEC PELV/NEC® Class 2 cable
Communications:	Repeaters communicate with the system through RF. All devices must be located within 30 ft (9 m) of a Repeater. All Repeaters must be within 60 ft (18 m) of another Repeater. System devices operate on frequencies between 431.0 MHz to 437.0 MHz or 868.125 MHz to 869.850 MHz
ESD Protection:	Tested to withstand electrostatic discharge or loss of operation, in accordance with IEC 61000-4-2.
Surge Protection:	n Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits
Power Failure:	Power failure memory: should power be interrupted, the Repeater will return to its previous state when power is restored.
Mounting:	Mount on a wall, ceiling, or level surface using the two #6 (M3) screws provided
Connections:	Main Repeater: Ethernet, RS232 and RS485
Warranty:	www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf www.lutron.com/TechnicalDocumentLibrary/Intl_Warranty.pdf
Design Features:	Test button: enters the system diagnostic mode. Can be programmed from a PC. RS485 port to connect to other Repeaters through a wired link (daisy-chain). Main Repeaters allow configuration and integration to the system through Ethernet or RS232 ports. System with 2 Main Repeaters must be connected via Ethernet.
