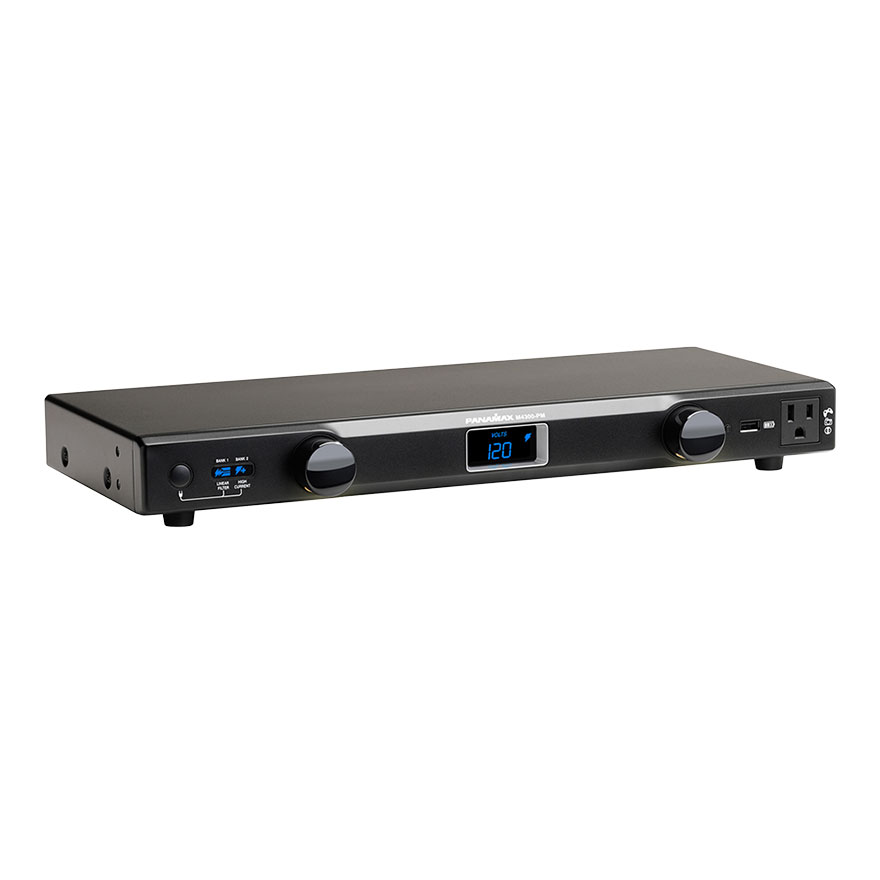

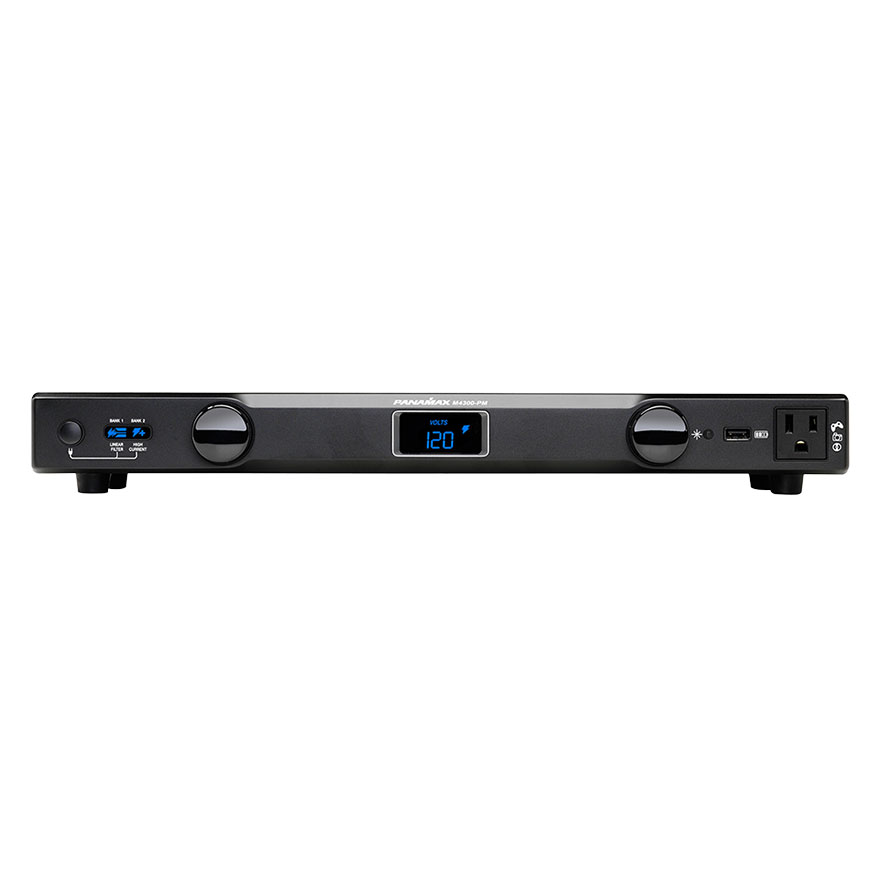

Panamax® MR4300-PM Power Conditioner

No home theater system is complete without a power management product from Panamax®. Panamax offers reliable products that are designed to save you money. Panamax offers many fancy features but most of all, Panamax gives you confidence and a peace of mind. At any time a surge of electricity can take place and damage your electronic equipment. Panamax guarantees your entertainment system will not be damaged. They’ve mastered power protection over the past 35 years and continue to design new technology for new world electronics.

Purified Signal

Level 3 Power Cleaning and Linear Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

AVM™

Panamax’s patent pending AVM™ (Automatic Voltage Monitoring) circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing lightning bolt will be displayed in red in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Protect or Disconnect™

The other layer of surge protection Panamax offers you is their exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, this power manager permanently disconnects AC power from your equipment.

Ultimate Cable Protection

The MR4300 offers shielded High Definition antenna, cable, or satellite signal protection. The coax signal is bidirectional, which allows for two way communication with your television provider which is required when ordering PPV movies or events. LAN and Telco signals are protected along with the coax connections to accommodate for all of your equipment protection.

9 Outlets

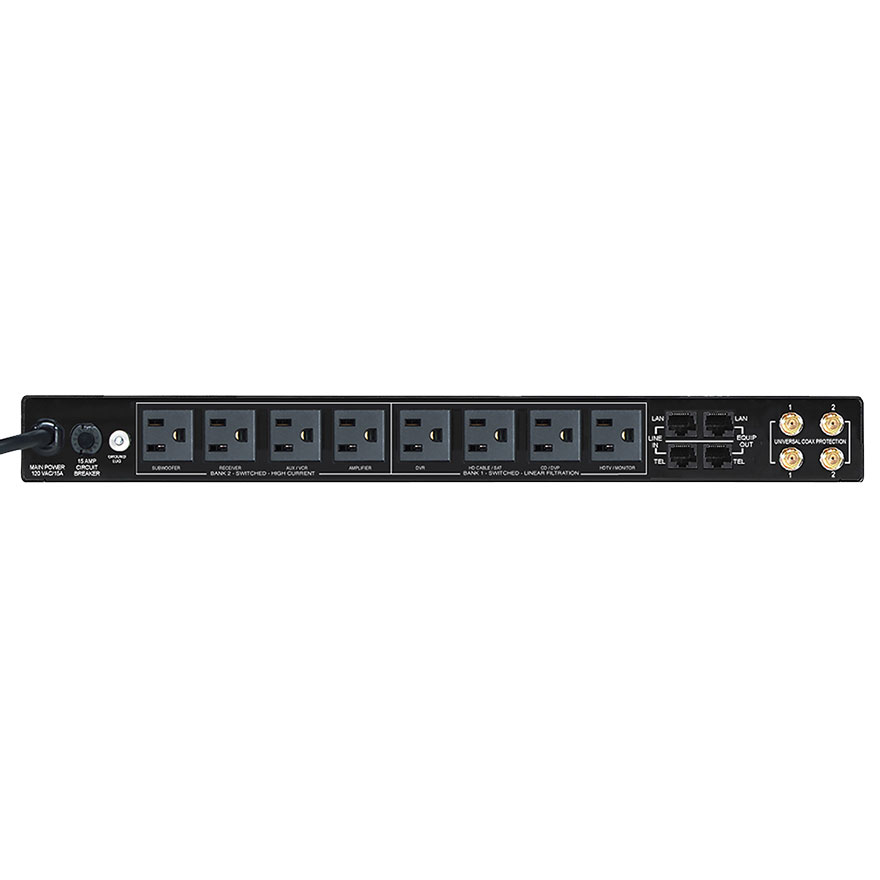

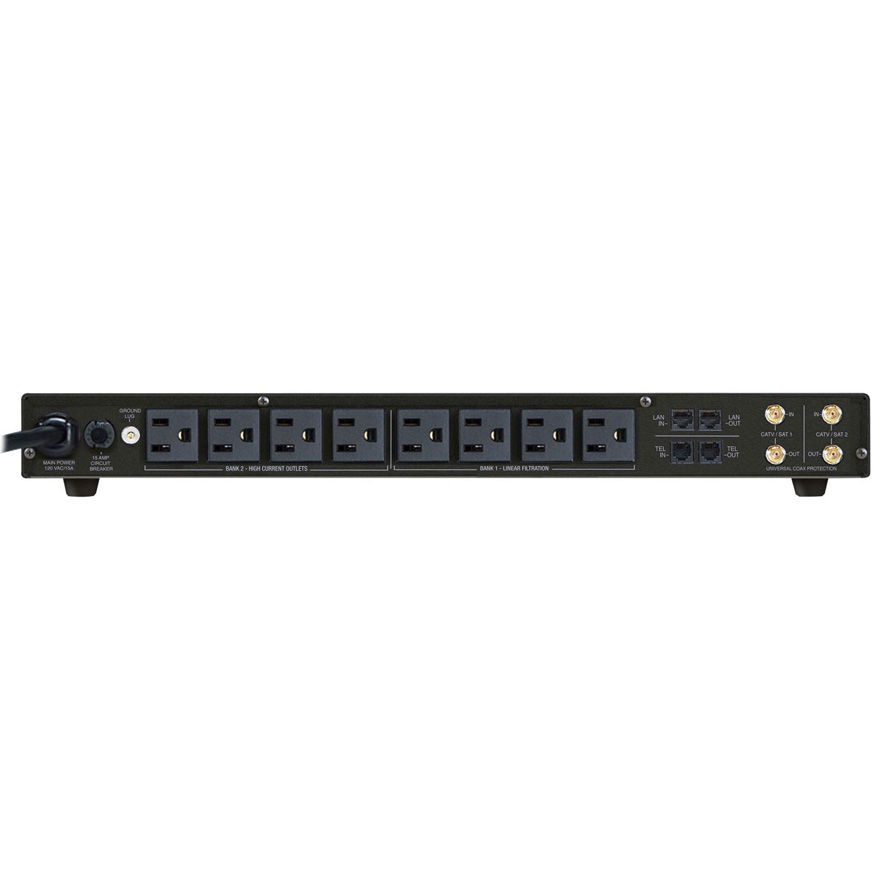

This unit offers nine, that’s right nine outlets! All offer Panamax’s protected and filtered technology.  There are eight outlets located on the back and one on the front. This gives you plenty of outlets for all of your home theater electronics.

General
Weight: 6.5 lbs.
Dimensions: 17" W x 6" D x 1.75" H, (2.19" Including feet)
Rack Ears: Not Included
AC Protection
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 330V
Thermal Fusing: Yes
Protection Modes: L-N, L-G, N-G
Response Time: < 1ns
Nominal Discharge Current (UL 1449 3rd Edition): 3,000A
Maximum Current Rating: 15A (1800W)
Line Voltage: 120V, 50/60Hz
Initial Clamping Level: 200V Peak, 141VRMS
Single Pulse Energy Dissipation: 1575 Joules
Protect or Disconnect Circuitry: Yes
Under-voltage shutoff: 100 VAC ± 2 VAC
Over-voltage shutoff: 135V ± 2V
Automatic Voltage Monitoring Circuit: Yes
Linear Level 3 Noise Filtration:
Bank 1:

-70dB min. @ 100kHz

-65dB min. @ 250kHz

-45dB min. @ 500kHz

Max filtration: -80dB @ 150kHz

Bank 2:

High Current, Low Impedance

-50dB min. @ 100kHz

-60dB min. @ 250kHz

-45dB min. @ 500kHz

Max filtration: -63dB @ 250kHz

LAN Circuits:
Clamping Level: 62V ± 6V @ 1 mA
Wires Protected: 8-Wires
Connectors: RJ-45
Compatibility: 10/100/1000bT
Telco Protection
Fuseless/Auto-resetting: Yes
Clamping Level: 260V
Wires Protected: 2 Wires, 1 Pair (4,5)
Jacks: RJ-11
Universal Coax Protection
HD 1080 i/p Ready: Yes
Bidirectional: Yes
Shielded: Yes
Clamping Level: 75V
Frequency Range: 0 MHz - 2.2 GHz
Insertion Loss: < 0.5 dB
Connections: Female "F", Gold Plated
