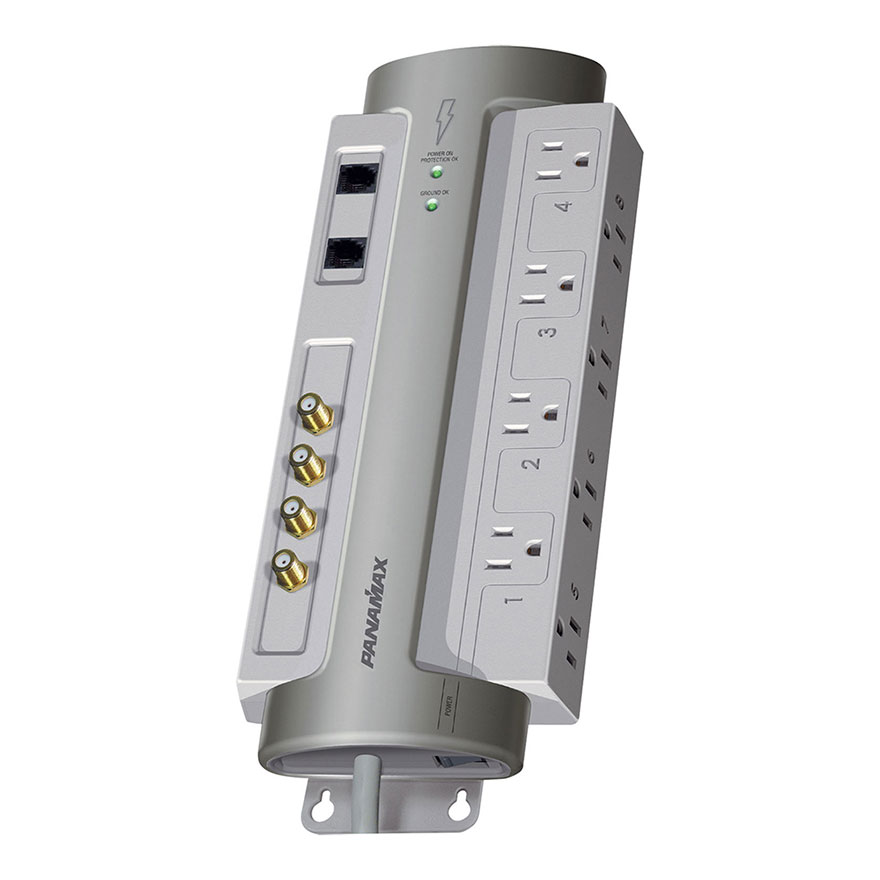

Panamax® PM8-AV Power Line Conditioner and Surge Protector

Your home theater systems need the type of power protection that will allow it to last. That’s why we offer this Power Conditioner and Surge Protector from Panamax®. This beast shields your home theater system against harmful spikes and power fluctuations. It reacts in less than a nanosecond during a spike, breaking the connection to protect your equipment. It also filters out the RF (radio frequency) and electromagnetic interference that can degrade your system's performance.

Outstanding Design

This Power Conditioner comes with eight AC outlets, conveniently spaced to allow for bulky transformers. There are also two sets of coaxial input/output jacks that protect your cable, antenna, or digital satellite TV connections. It doesn’t stop there… It has a protected telephone line input/output, and the six-foot power cord has a right-angle plug that hugs the wall, for an easy fit behind your audio/video cabinet.

Bring the Noise

The PM8-AV protects your gear without compromising performance, in fact, it may even improve it thanks to Panamax's proven noise filtering circuitry that ensures clean, unimpeded power. And its wide frequency range lets it easily pass high-definition cable TV signals.

Surge Protection

Panamax’s exclusive Protect or Disconnect™ circuitry is a special surge protection technology that stops a power surge in its tracks. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to all of your connected equipment, ensuring your devices’ safety.

Joule Rating

Power surges send excess amounts electricity that can damage your connected equipment if not properly protected. The Joule rating is a measure of a surge protector's ability to "clamp" this excess energy down to a safe level - the higher the rating, the more protection your equipment has.

Family Floor Models
Line Voltage 120 (Volts)
BlueBOLT Enabled No
Number of Outlets 8
Outlet Descriptions All 8 outlets filtered and surge protected
Control On/Off control to all outlets through power switch.
Compliance UL 1449 3rd Edition, 3000A
USB Charging N/A
Low Voltage Trigger N/A
AC Power Cord 6 ft. captive cord
Dimensions 12" L x 5" W x 1.75" H (12.5" L Including brackets)
Weight 3.5 lbs
AC Protection Technology Protect or DisconnectL-N, L-G, N-G Protection ModesThermal Fusing
Automatic Voltage Shutoff No
Undervoltage Shutoff N/A
Over-Voltage Shutoff N/A
Maximum Current Rating 15 (Amps)
Initial Clamping Level 200V Peak
Filtration Technology RFI/EMI Filtration
Filtration Rating 45dB @ 100kHz - 1 MHz
Signal Line Protection 1 Tel2 Cable/Satellite
Length 14 (Inches)
Width 9.2 (Inches)
Height 2.4 (Inches)
Weight 2.6 (Lbs)
Unit of Measure Each
UPC 050616008723
Master Pack Qty 6
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) 500V
Thermal Fusing Yes
Single Pulse Energy Dissipation 1125 Joules
Response Time < 1 ns
Peak Impulse Current 52,000 Amps
Wires Protected 1 Line (3, 4)
Suppression Modes Metallic & Longitudinal
Fuseless / Auto-reseting Yes
Connectors RJ-11
Clamping Level 260V
Capacitance 30pf (approx.)
Shielded Yes
Insertion Loss < 0.5 dB
Frequency Range OMHz - 2.2 GHz
Connections Female “F", Gold Plated
Clamping Level 75V
Bidirectional Yes
