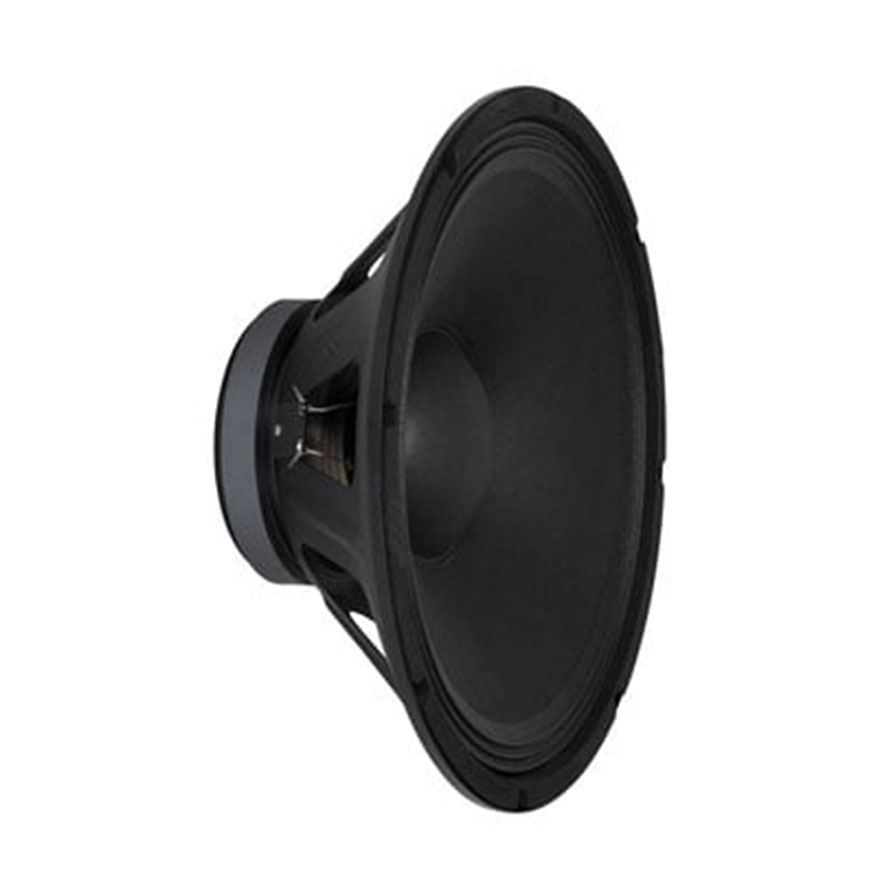

Peavey 00497070 Pro 12 Low Frequency Speaker Driver

Pack the power of the Peavey Pro 12. This low-frequency driver boasts a 50 Hz ~ 4 kHz frequency range, 94.3 dB sensitivity, and Kevlar® cone with impregnated cellulose. Add in the dual layered thermally bonded copper wire Kapton former Nomex® stiffen voice coil, and a speaker never sounded better!

Peavey

For nearly six decades, Peavey has blazed its own path toward musical perfection. Founded by Hartley Peavey in 1965 as a one-man shop, today Peavey Electronics Corporation is one of the largest makers and suppliers of musical instruments, amplifiers and professional audio systems in the world—distributing more than 2,000 products to more than 130 countries.

There are no support documents available for this product at this time.

Impedance:	8 Ohms
Power Capacity:	800 W Peak 400 W Program 200 W Continuous
Sensitivity:	94.3 dB / 1 W 1 m
Usable Frequency Range:	50 Hz ~ 4 kHz
Cone:	Kevlar® impregnated cellulose
Voice Coil Diameter:	2.375" / 60.3 mm
Voice Coil Material:	2 layers, thermally bonded copper wire Kapton former Nomex® stiffener
Net Weight:	9.7 lbs. / 4.4 kg
Znom:	8 ohms
Revc:	6 ohms
Sd:	0.053 sq meters
Bl:	12.36
Fo:	478.8 Hz
Vas:	86.4 Liters
CMS:	219.7 uM/N
Mms:	49.10 gm
Qms:	3.84
Qes:	0.588
Qts:	0.510
Xmax:	2.5 mm
Le:	0.72 mH
SPL:	94.3 1W 1m
No:	1.73%
Vd:	16.2 cu. inches/ 266 ml
Pax:	400 Watts
Disp:	73 cu. inches / 1192 ml
Packed Weight:	12.13 lb (5.5 kg)
Dimensions (L x W x H):	14" (35.56 cm) x 13.125" (33.34 cm) x 6.75" (17.14 cm)
