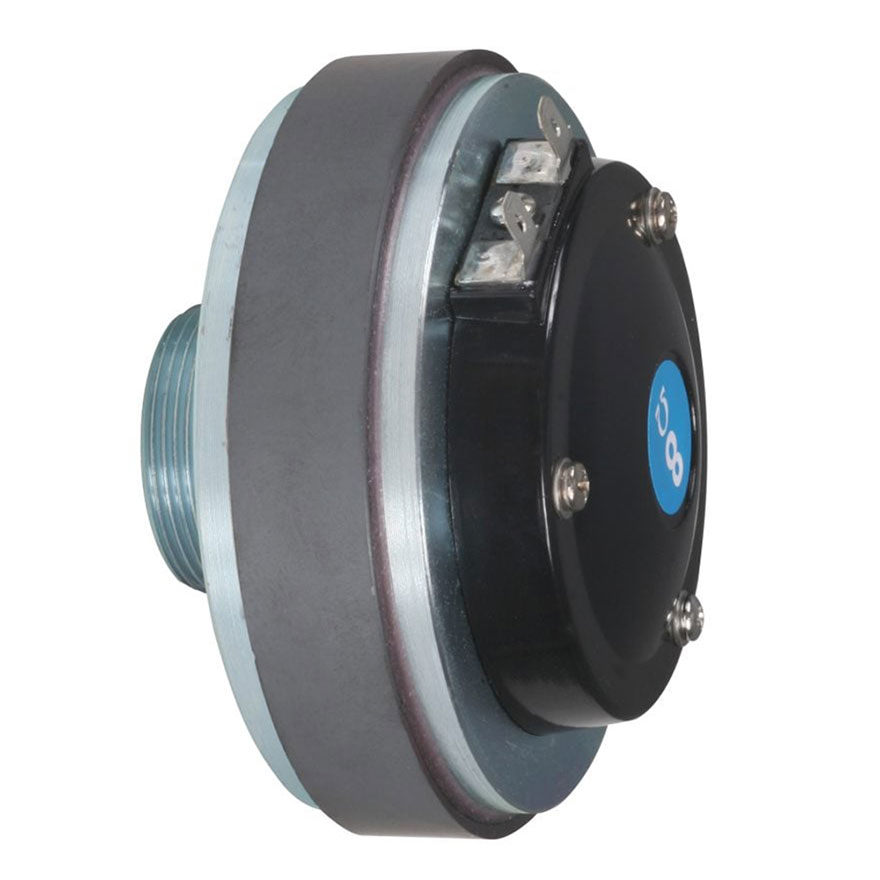

Peavey 03601330 14T™ High Frequency Compression Driver

Drive the sound! The Peavey High Frequency Compression Driver is designed with a 105 dB sensitivity and a 1.5 kHz to 20 kHz frequency response. With 100 watts of peak power and 12,700 gauss flux density, it’s ready to work.

Peavey

For nearly six decades, Peavey has blazed its own path toward musical perfection. Founded by Hartley Peavey in 1965 as a one-man shop, today Peavey Electronics Corporation is one of the largest makers and suppliers of musical instruments, amplifiers and professional audio systems in the world—distributing more than 2,000 products to more than 130 countries.

There are no support documents available for this product at this time.

Size:	1.4"
Sensitivity:	105 dB / 1 Watt at 1 meter On-axis on 90º H x 45º V horn
Nominal Efficiency:	30%
Frequency Response:	1.5 kHz to 20 kHz
Recommended Crossover:	2,000 Hz at 12 dB / Octave
Power Capacity 1000 Hz to 20,000 Hz:	100 W peak 50 W program 25 W continuous
Diaphragm:	Commercially pure titanium
Voice Coil Diameter:	1.4" / 34.4 mm
Voice Coil Material:	Copper clad aluminum wire on an aluminum former
Flux Density:	12,700 gauss (1.15T)
Dimensions (Diameter x Depth):	3.44" (87.4 mm) x 2.30" (58.4 mm)
DC Resistance:	6.4 Ohms
Horn Coupling Diameter:	.938" (23.8 mm)
Minimum Impedance:	6.8 Ohms
Horn Coupling Threads:	Standard 1 3/8" - 18"
Nominal Impedance:	8 Ohms
Net Weight:	33.0 oz.
Throat Parameter:	.975" / 23.4 mm
Shipping Weight:	38 oz.
Lowest Recommended Crossover:	1,800 Hz at 12 dB / Octave
Packed Weight:	2.14 lb (0.97 kg)
Packed Dimensions (W x H):	3.5" (8.89 cm) x 1.75" (4.45 cm)
