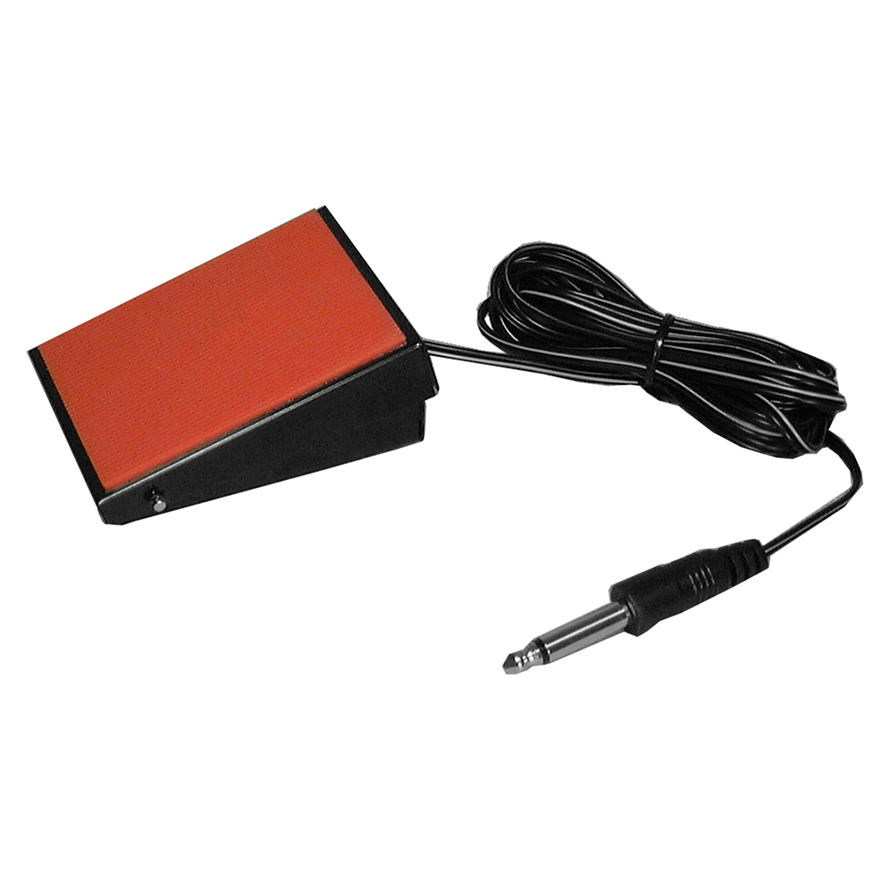

Philmore 30-17090 Foot Operated Switch

Mix up the jam session with the Philmore Foot Operated Switch. This foot pedal packs 5 amps @125VAC, 3 amps @250 VAC. Add in the stylish plug-and-play design and it’s a must-have.

Features

This foot pedal boasts a less than 100 Megohm @500 volt insulation resistance, is lightweight, and is perfect for operating ham radios and more.

Philmore

LKG Industries, Inc.dba Philmore/Datak/Carter Craft/Pfanstiehl imports, manufactures and markets thousands of electronic accessory items for use with consumer items, in categories such as Audio, Video, Television, Telephone and Personal Computers, as well as connectors and switches for use in manufacturing.

There are no support documents available for this product at this time.

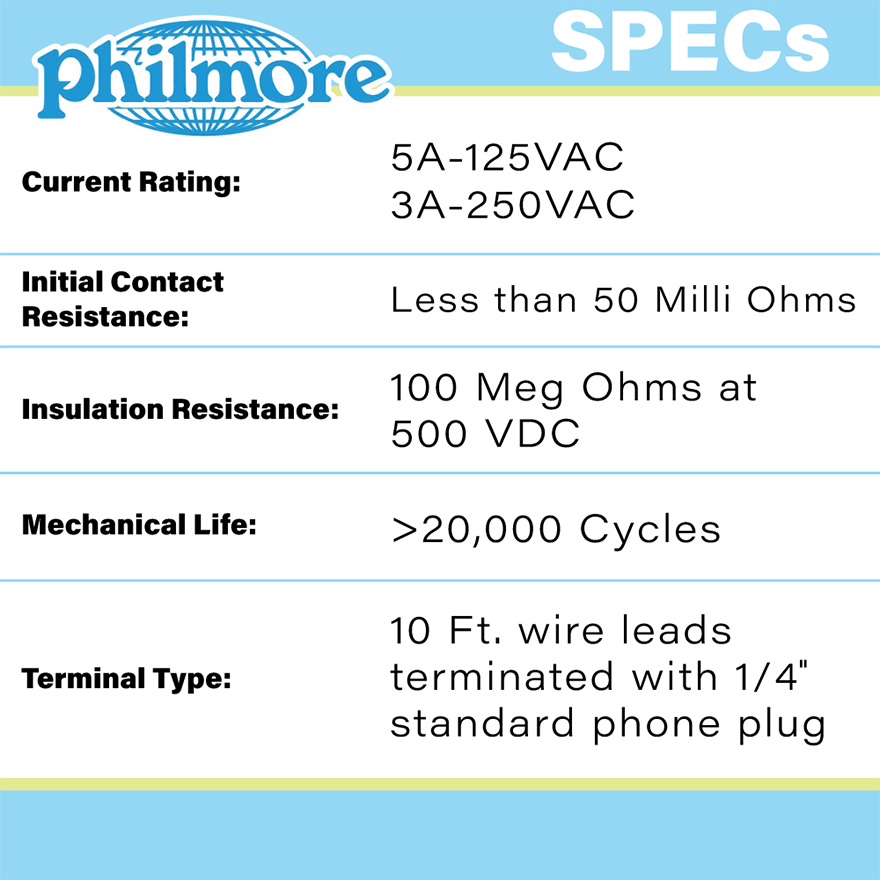

Weight:	6.45 oz
SPST, action:	(on) - off momentary, actuator: foot pedal
Current Rating:	5 amps @125VAC, 3 amps @250 VAC
Initial contact resistance:	less than 50 milliohms
Insulation Resistance:	>100 Megohms @500 volts
