PLA2034 - Platinum Tools™ 100027C ezEX®48 Shielded External Ground Cat6 Connectors (Clamshell Pack of 25)

Item: PLA2034 | Model: 100027C

Brand: Platinum Tools Last Ordered:

Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555

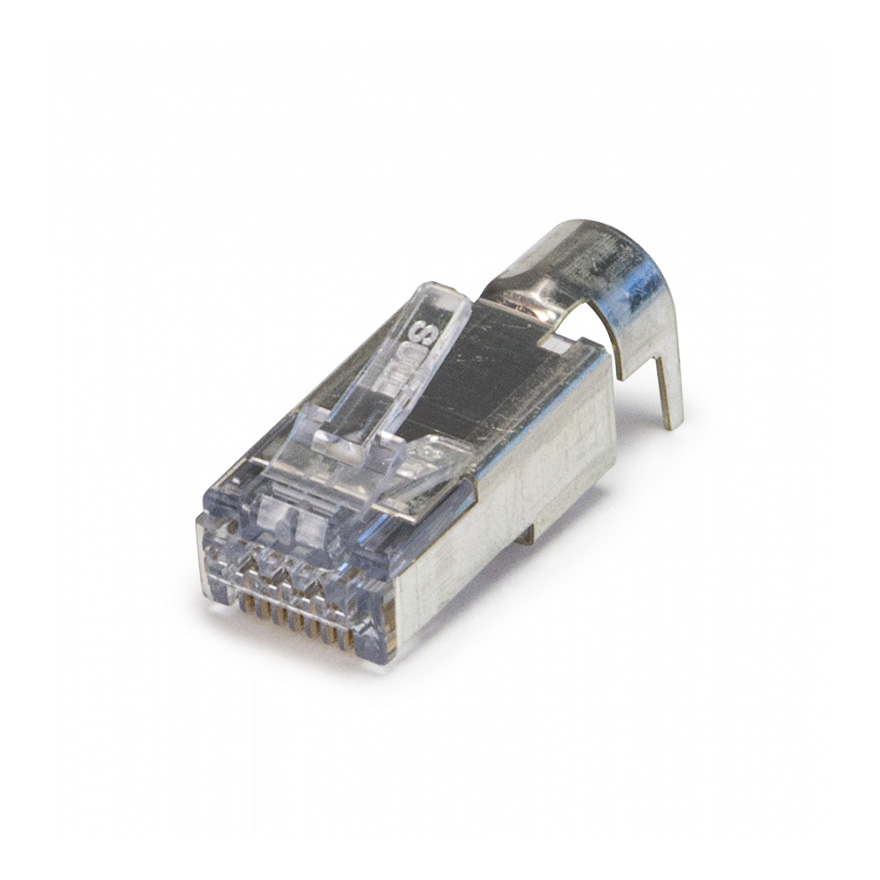

Platinum Tools™ 100027C ezEX®48 Shielded External Ground Cat6 Connectors (Clamshell Pack of 25)

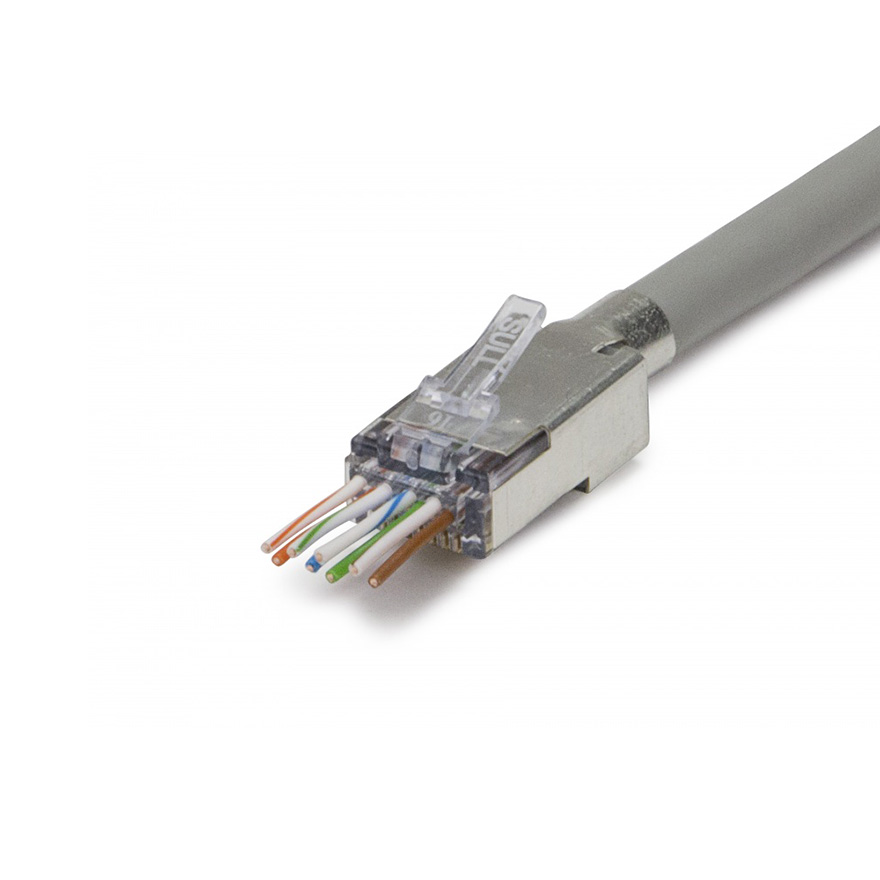

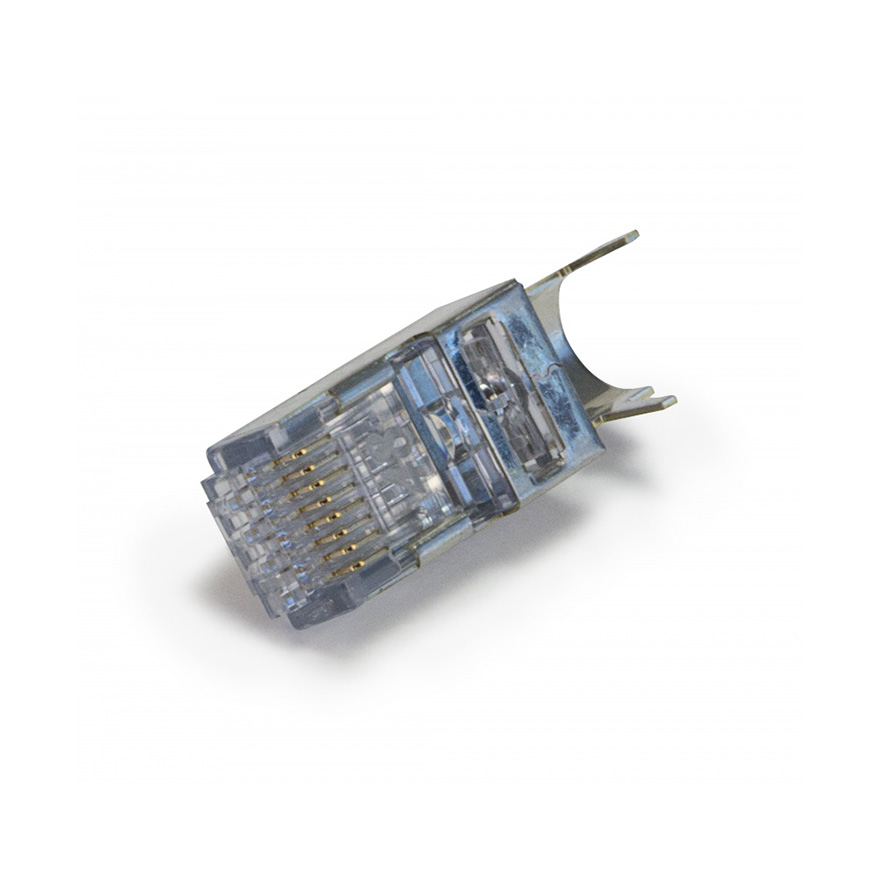

Designed for large cables and connectors ! The Platinum Tools™ ezEX®48 Shielded Cat6 Connectors feature a unique integrated Hi-Lo stagger load bar and allows big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. They are used with Cat6A cabling.

Features

These Connectors are designed with 50 micron gold plated contacts. They are TIA, TAA, RoHS, UL & FCC compliant, Shielded 6/6A compliant, AND proudly made in the USA.

Platinum Tools™

Platinum Tools™, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation, and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of Platinum Tools™ products absolutely must satisfy three critical benchmark criteria, utility of function, quality of function, and economic value.

View Information Sheet

Hi-Lo Stagger:	To isolate each conductor
1-Piece Pass Through:	No bars or liners
Shielded:	6/6A compliant
Insulation Diameter (Conductor) - Size Range:	0.043” – 0.048” (1.09 –1.22mm)
Max Outer Diameter:	0.305” (7.75mm)
23-22 AWG:	Solid or Stranded
Gold Plated Contacts:	50 micron
Certifications:	TAA, TIA, RoHS, UL & FCC
Made in the USA:	US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
