Platinum Tools™ T130K1 VDV MapMaster 3.0 Cable Tester Kit

The ultimate testing equipment! With a set of 20 ID Only Network remotes, patch cables, RJ45 Port Saver in a hanging pouch, the T130K1 offers a great cable Tester Kit with the ability to easily locate unlabeled network cables.

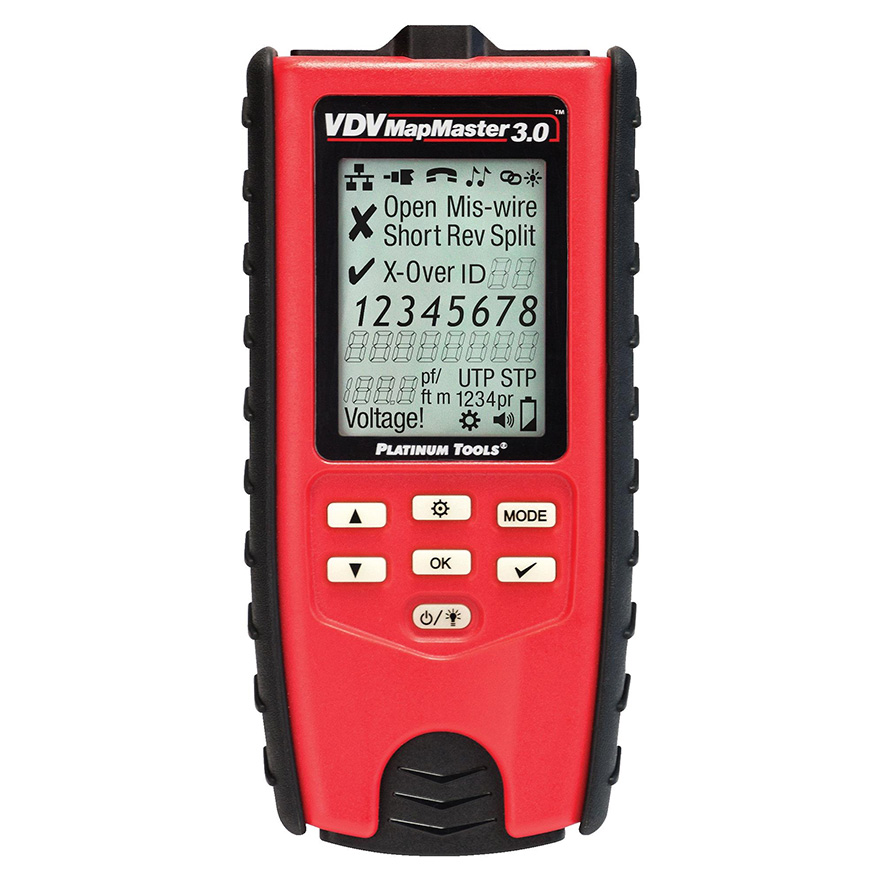

VDV Mapmaster 3.0

Measure Continuity testing, mapping, generating tones, and length measurement with one device! The Platinum Tools™ T130 is a VDV MapMaster 3.0 Cable Tester that is easy to use for installation, troubleshooting, and maintenance. Perfect for telco, network, and coax cable, it includes a back-lit display, glow-in-the-dark keypad, and a built in flashlight to make working in the dark a breeze. Designed for commercial or residential jobs, this tester is the best value for pro installers.

Features

Detects open, shorts, mis-wires, reverses, and split pairs. It tests to T568A/B wiremap configuration with single-ended testing for shorts and split-pairs. LAN, phone, and video cable types can be verified, and this tester identifies up to (20) network or coax cable runs at a time. Add in continuous loop test mode for trouble shooting, auto-off and timed backlight, and it is ready to work.

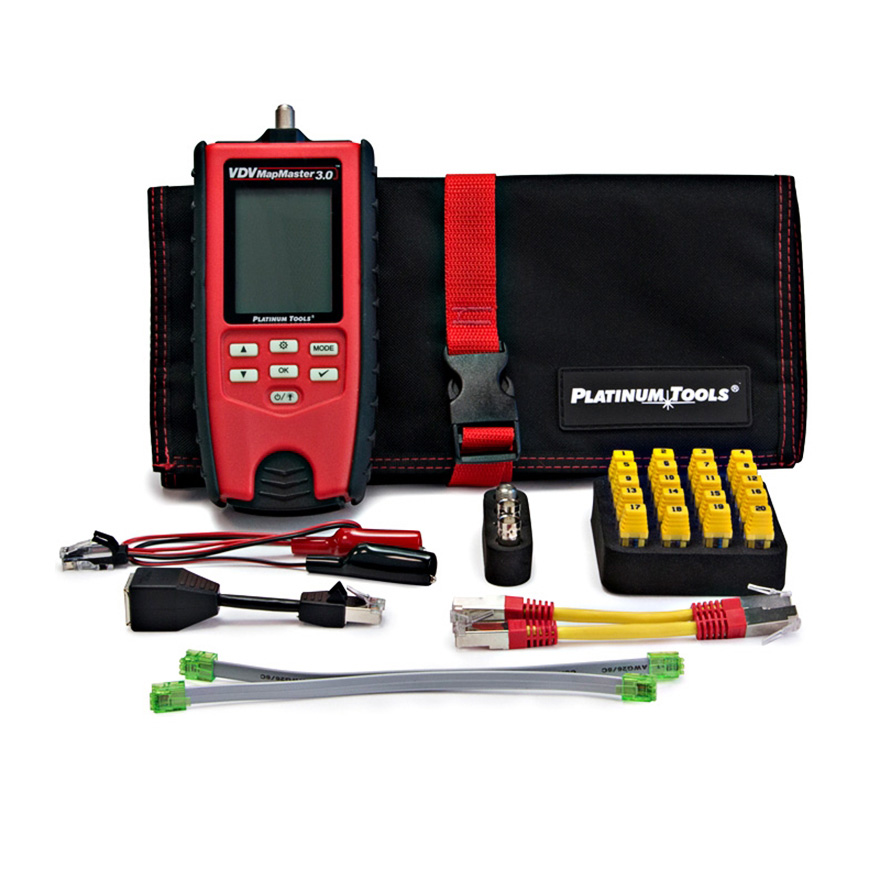

What’s included

This kit comes complete with: (1) VDV MapMaster 3.0 Main Unit, (1) ID Only Network Remotes, #1-20, (1) RJ45 Port Saver, (2) No-Fault, RJ12 Cable, (5) FTP Patch Cable, Cable Assembly, RJ45 to Alligator Clip, (1) BNC Adapter Kit, (1) 9V Battery, and a Hanging Pouch.

Platinum Tools™

Platinum Tools™, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation, and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of Platinum Tools™ products absolutely must satisfy three critical benchmark criteria, utility of function, quality of function, and economic value.

General

Contents: (1) VDV MapMaster 3.0 Main Unit, (1) ID Only Network Remotes, #1-20, (1) RJ45 Port Saver, (2) No-Fault, RJ12 Cable, (5) FTP Patch Cable, Cable Assembly, RJ45 to Alligator Clip, (1) BNC Adapter Kit, (1) 9V Battery, and a Hanging Pouch

MapMaster 3.0

Display: Large 2.75” Backlit Monochrome LCD
Dimensions: 6.8” x 3.2” x 1.4” (17.3 x 8.1 x 3.5 cm)
Weight: 10.8 oz. (305 grams) with battery and remote
Operating Temperature: 0˚C/32˚F to 50˚C/122˚F
Storage Temperature: -20˚/-4˚F to 60˚C/140˚F
Humidity: 10% to 90%, non-condensing
Max Voltage Between any 2 Connector Pins without Damage: RJ12/RJ45/F: 50V DC or AC
Battery Life: 9V alkaline battery typical
Standby: 4 years
Active: 425 hours
Cable Types: Shielded or Unshielded; CAT7, CAT6A, CAT5e,CAT5, CAT4, CAT3, Coax
Max RJ Cable Length Testing: 0 to 1,000 feet (305 meters)
Min. Cable Length for Split Pair Detection: 1.5 feet (0.5 meters)
Max. Coax Cable Length: Varies depending on cable resistance varies
Low Battery Icon: Flashes when battery voltage falls below 6V
Measurement Technology: Capacitance Testing
Length Accuracy without Length Constant: ± 3% plus + 1 foot
Default Length Constant (Restored with Power on reset):

Voice (Twisted pair): 17.4 pF/ft

Video (Coax): 16.5 pF/ft

Data (Twisted pair): 15 pF/ft

Warranty: Limited 1 Year
