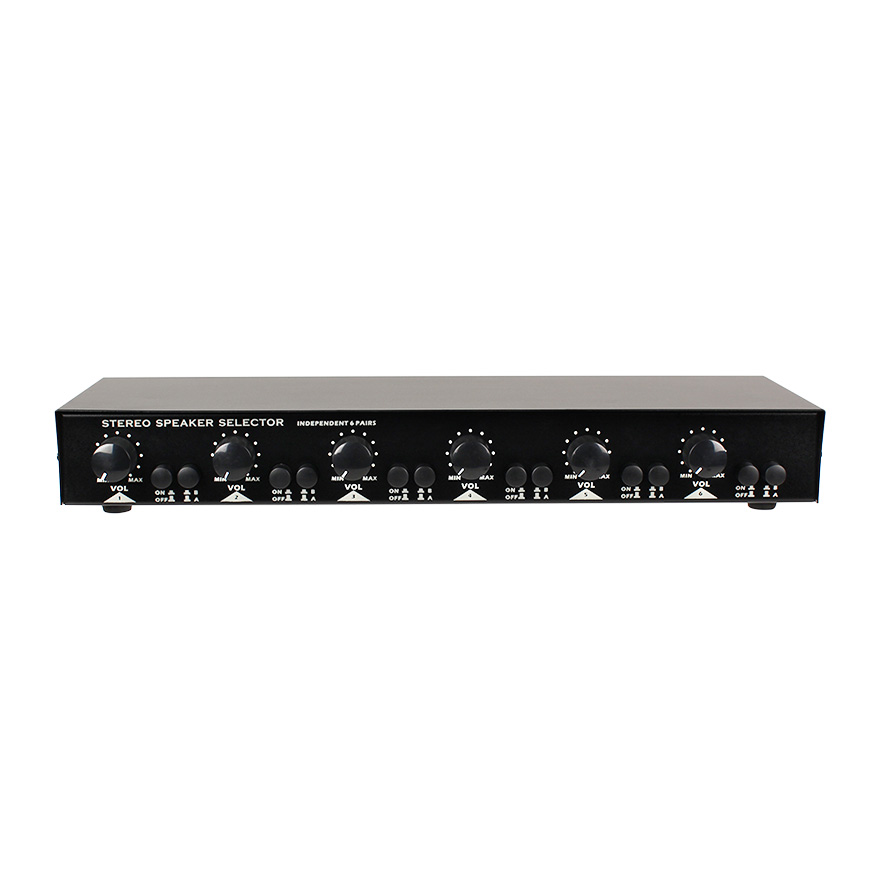

Saga Elite™ 6-Zone Individual Volume Control Dual Source Stereo Speaker Selector

The SAG5600HE allows users to operate up to six zones of stereo sound, all from one location. It is a highly efficient impedance-matching selector designed for use with both 4-ohm or 8-ohm amplifiers and 4-ohm to 8-ohm speakers. It’s equipped with a low-frequency protection circuit to reduce subsonic signals, which allows high-power operation without amplifier shutdown.

Features

This Stereo Speaker Selector features selectable impedance-matching auto-formers to compensate for the impedance drop when using multiple sets of speakers. Auto-Formers reduce heat dissipation and make it safe to incorporate up to two speakers in all six zones. Best of all, it delivers 300 watts of total RMS continuous power handling and is able to feed your speakers with 900 watts of total music power.

There are no support documents available for this product at this time.

Total Music Power:	900 Watts
Total RMS Continuous Power Handling:	300 Watts
Speaker Pairing:	Six pairs of speakers can be controlled independently. Any one pair or up to all six pairs can be controlled at the same time or in combination (with a volume control).
Heavy Duty:	transformer based impedance matching system protects against power loss.
Circuit Breaker:	Protected
Left and right channels:	are completely isolated for safe operation with any amplifier, even bridged amplifiers

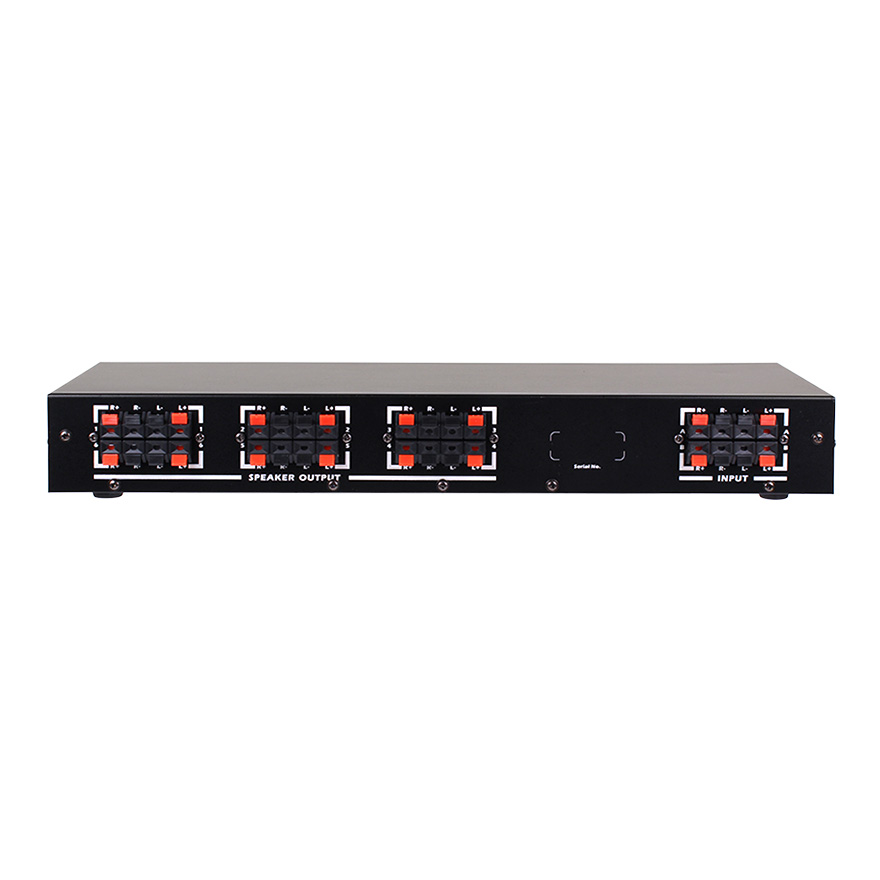

Quick connect terminals:	will accommodate 16 to 22 gauge wire
Versatile:	Can be connected to two separate amplifiers via A/B switch
Dimensions:	17” (L) x 6” (D) x 2 3/8” (H)
Weight:	9 lbs.
