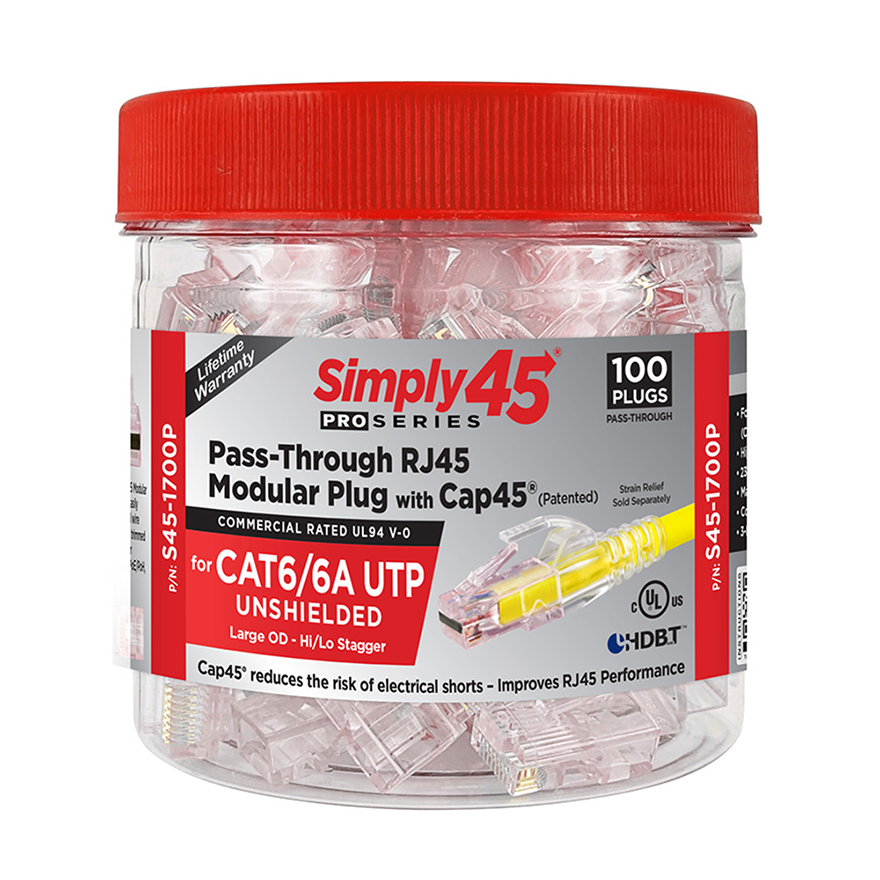

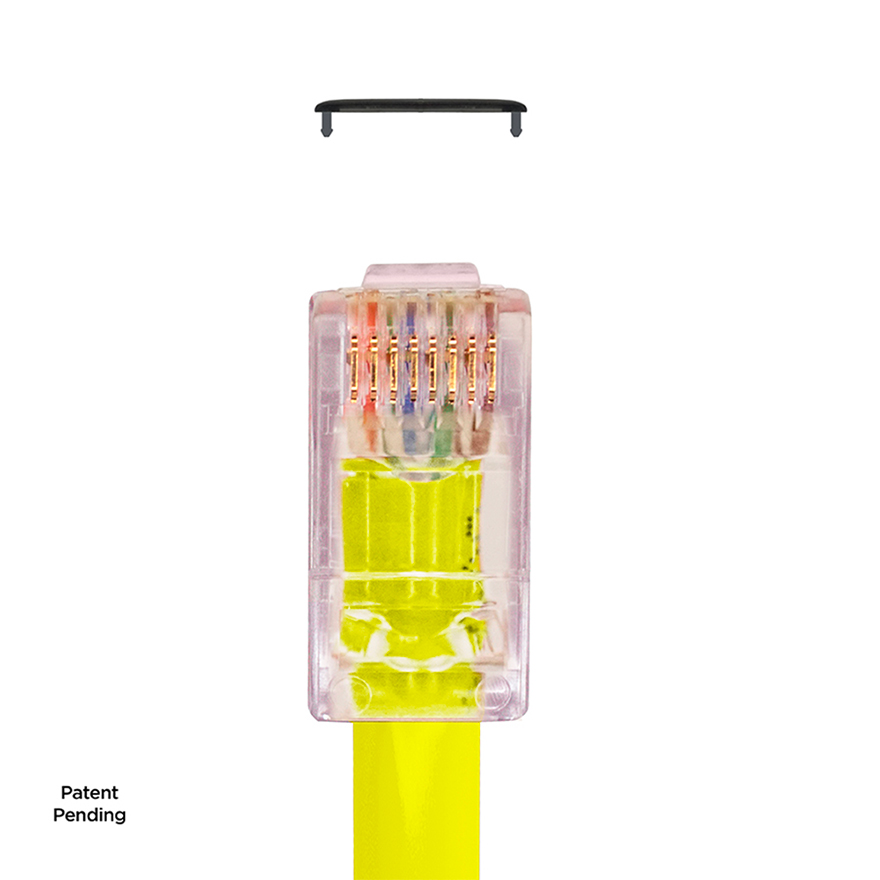

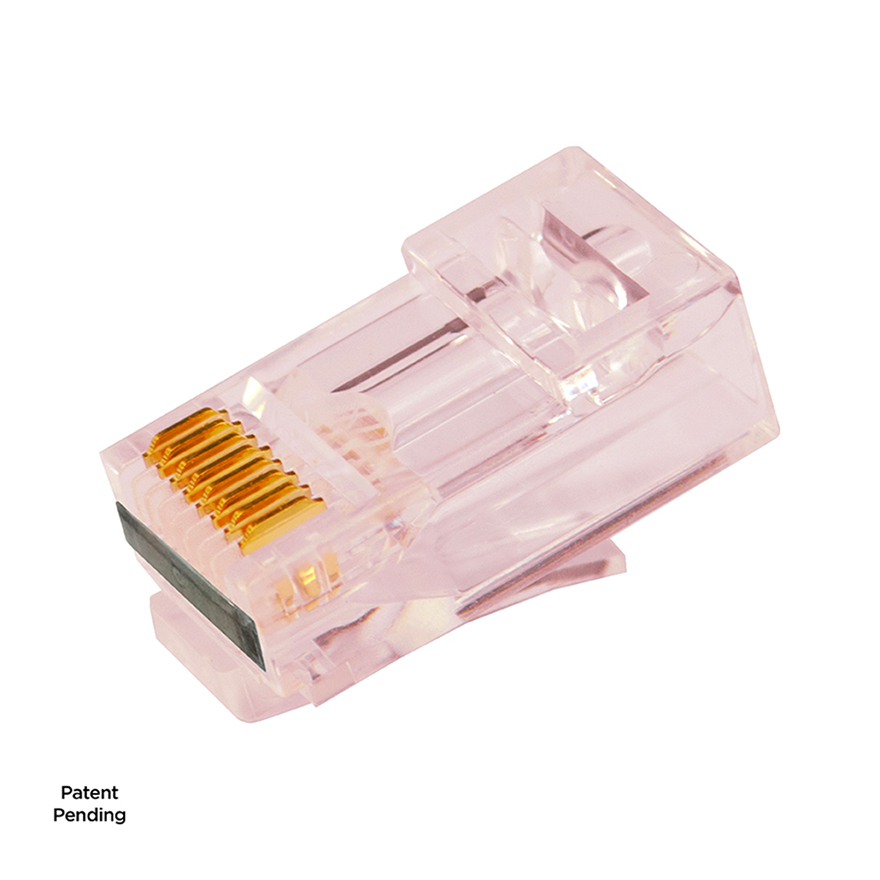

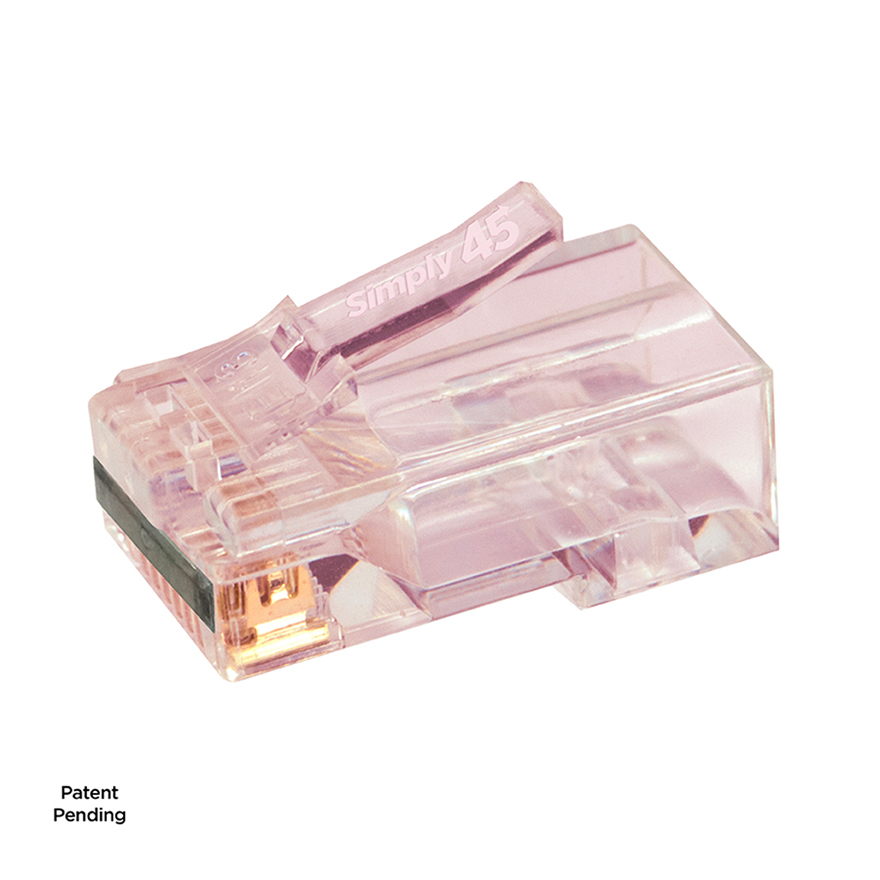

Simply45® ProSeries Cat6/6a Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 100 pc/JarSimply45® ProSeries hybrid connectors feature our patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45® only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. Our connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45® ProSeries the most reliable terminations on the market today.

There are no support documents available for this product at this time.

Type:	CAT6/6a
Style:	Pass-Through with Cap45
Wire Alignment:	Hi/Lo Stagger
AWG:	23AWG Solid
Conductor Range:	1.05mm-1.20mm (0.041″-0.047″)
Max Cable OD:	7.4mm (0.291″)
Plug Material:	Polycarbonate
Material Rating:	UL94 V0 Commercial (Plenum, LSZH)  Rated
Plug Color:	Red Tint
Contact Design:	3 Prong Style
Contact Material:	Phosphor Bronze
Base Contact Plating:	100µ of nickel plating
Surface Contact Plating:	50µ 24ct Gold
UL & cUL Listed:	E520614
Compliance:	TAA, P65
HDBaseT:	Approved
Quantity:	100
