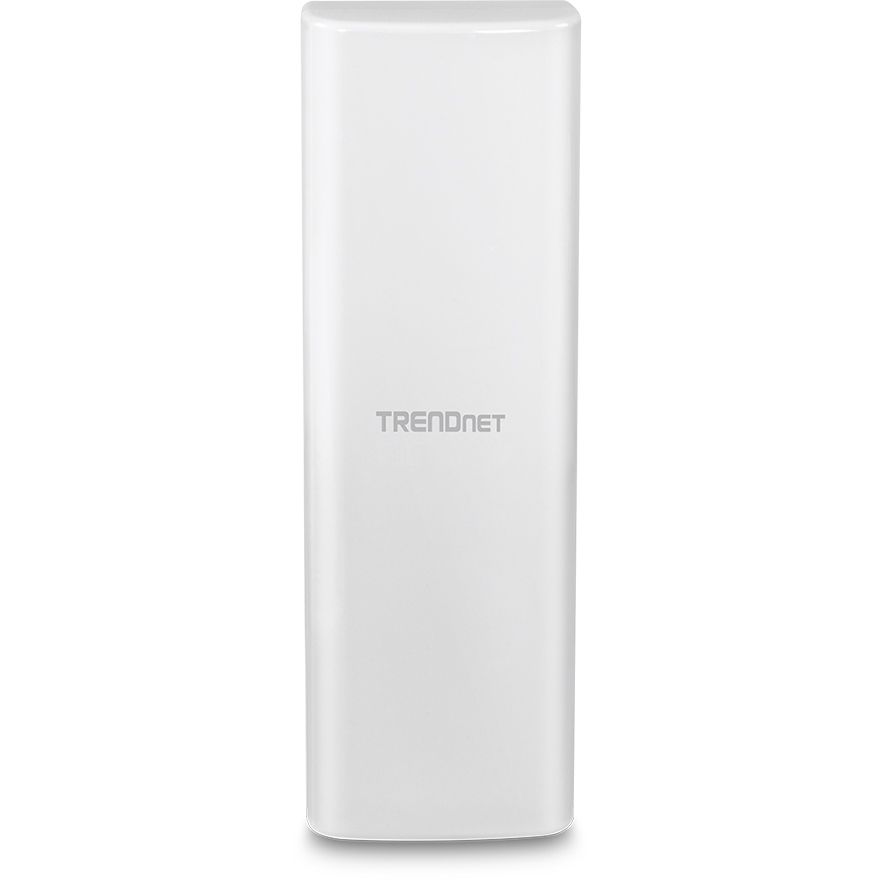

Outdoor Directional PoE Access Point

Upgrade your wireless network with cutting-edge WiFi 6 technology. This Outdoor Directional PoE Access Point delivers faster speeds, greater capacity, and improved efficiency by supporting multiple data streams simultaneously. It’s designed specifically for point-to-point WiFi bridging applications and supports Access Point, Client Bridge, and Repeater modes—making it ideal for long-distance outdoor wireless installations.

Features

802.11ax WiFi 6 for faster, more reliable wireless performance
IP55-rated housing for weather-resistant durability
Supports Access Point, Client Bridge, and Repeater modes
Features Bonjour/UPnP, IPv6, airtime fairness, and band steering
MU-MIMO support with LED indicators and toggleable LED lights

About TRENDnet

Founded in Torrance, California, TRENDnet is a trusted global brand in networking hardware. With a broad portfolio spanning wireless, wired, surveillance, and connectivity products, TRENDnet emphasizes quality, performance, and innovation. Backed by an ISO 9001:2015-certified quality management system, TRENDnet continues to be recognized for exceptional product reliability and responsive customer support.

View User Manual

View Sell Sheet

View Information Sheet

QoS:	WMM Bandwidth control per SSID
SSID:	Up to 8 SSID
Frequency:	5.150GHz - 5.250GHz, 5.725GHz - 5.850GHz
Wireless Channels:	5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165
Modulation:	BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA
MIMO Configuration:	5GHz 2x2: 2.4GHz: N/A
Antenna Gain:	14 dBi internal directional patch antenna
Distance:	Up to 1km**

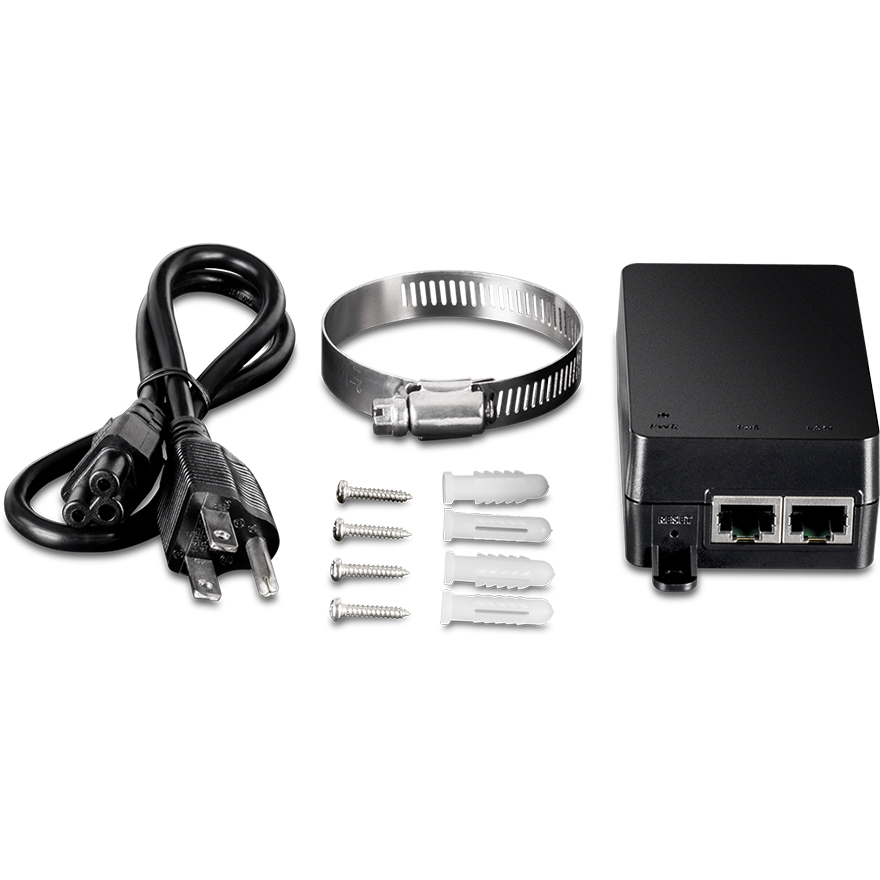

Power:	Input: 100 – 240V AC, 50/60Hz, 0.8A Output: 54V DC, 0.6A proprietary/passive PoE injector Max. Consumption: 10.1W
Operating Temperature:	-20° – 60° C (-4° – 140° F)
Operating Humidity:	Max. 90% non-condensing
Certifications:	FCC
Dimensions:	82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.)
Weight:	598g (21.09 oz.)
Warranty:	3 year
